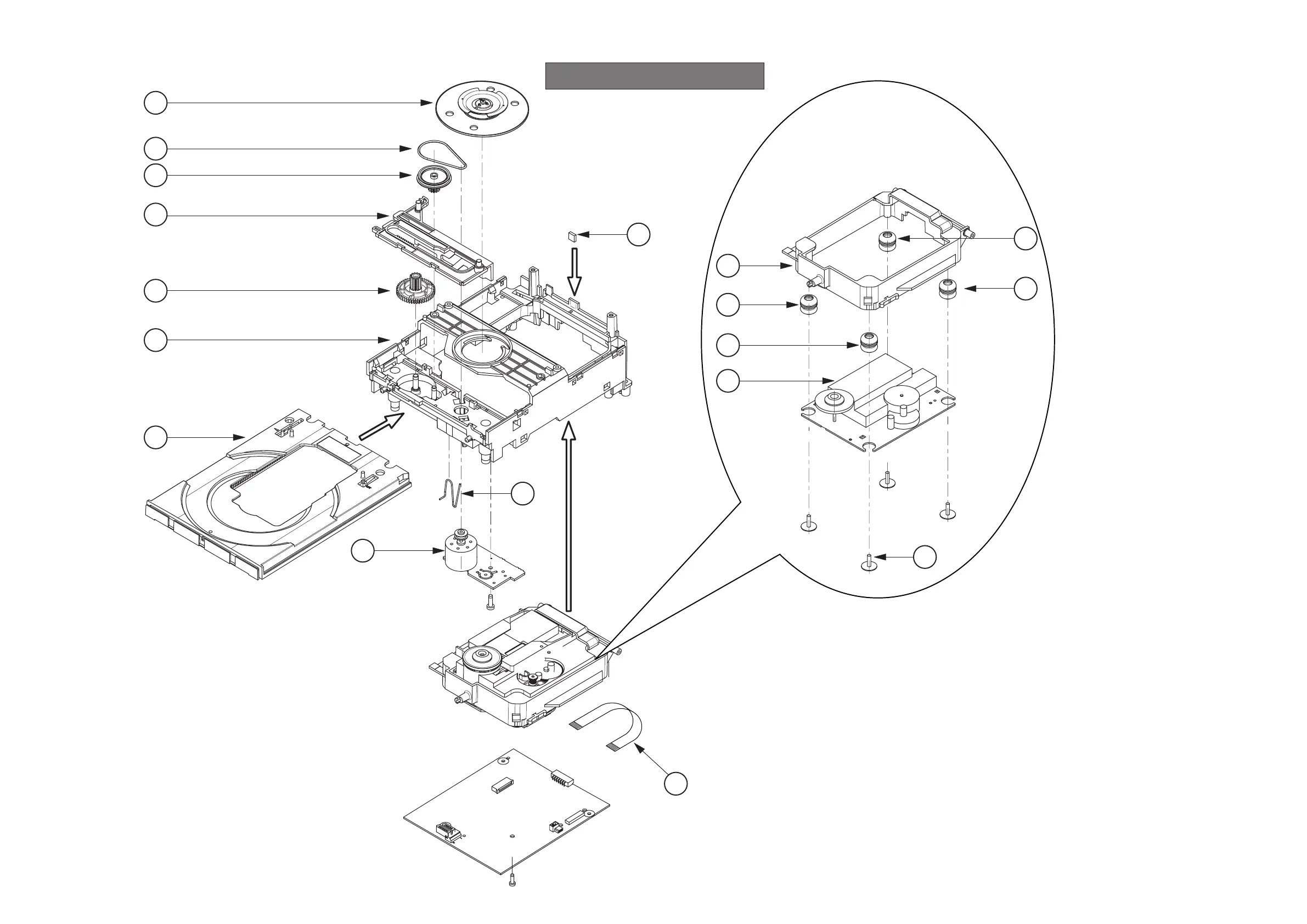

Philips MCM9 - Universal Loader Mechanical Exploded View; Mechanical Parts List

MOTOR BOARD
WMA CD BOARD
230
206
204
203
205
201
211
210
202
207
CN9
220
223
223
240
221
222
222
4x
MECHANICAL PARTS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
202 DRAWER
203 SLIDER
204 PULLEY GEARWHEEL
205 GEARWHEEL
206 DRIVING BELT
207 MOTOR ASSY
210 SPRING SUPPORT
220 SUPPORT CD
222 RUBBER DAMPER CD DRIVE, FRONT
223 RUBBER DAMPER CD DRIVE, FRONT
230 CLAMPER ASSY DA11
J5 3103 308 94021 FLEXFOIL CABLE, 8P, 268mm
CN9 9940 000 02122 FLEXFOIL CABLE, 16P, 170mm
Exploded view U NIVERSAL L OADER
SERVICE PARTS
9940 000 02092 CD MECHANISM LOADER
9940 000 02055 CD DRIVER DA11VF
