Philips MX5800SA - PC Board Locations and Specifications; PC Board Locations and Version Variations

1-2

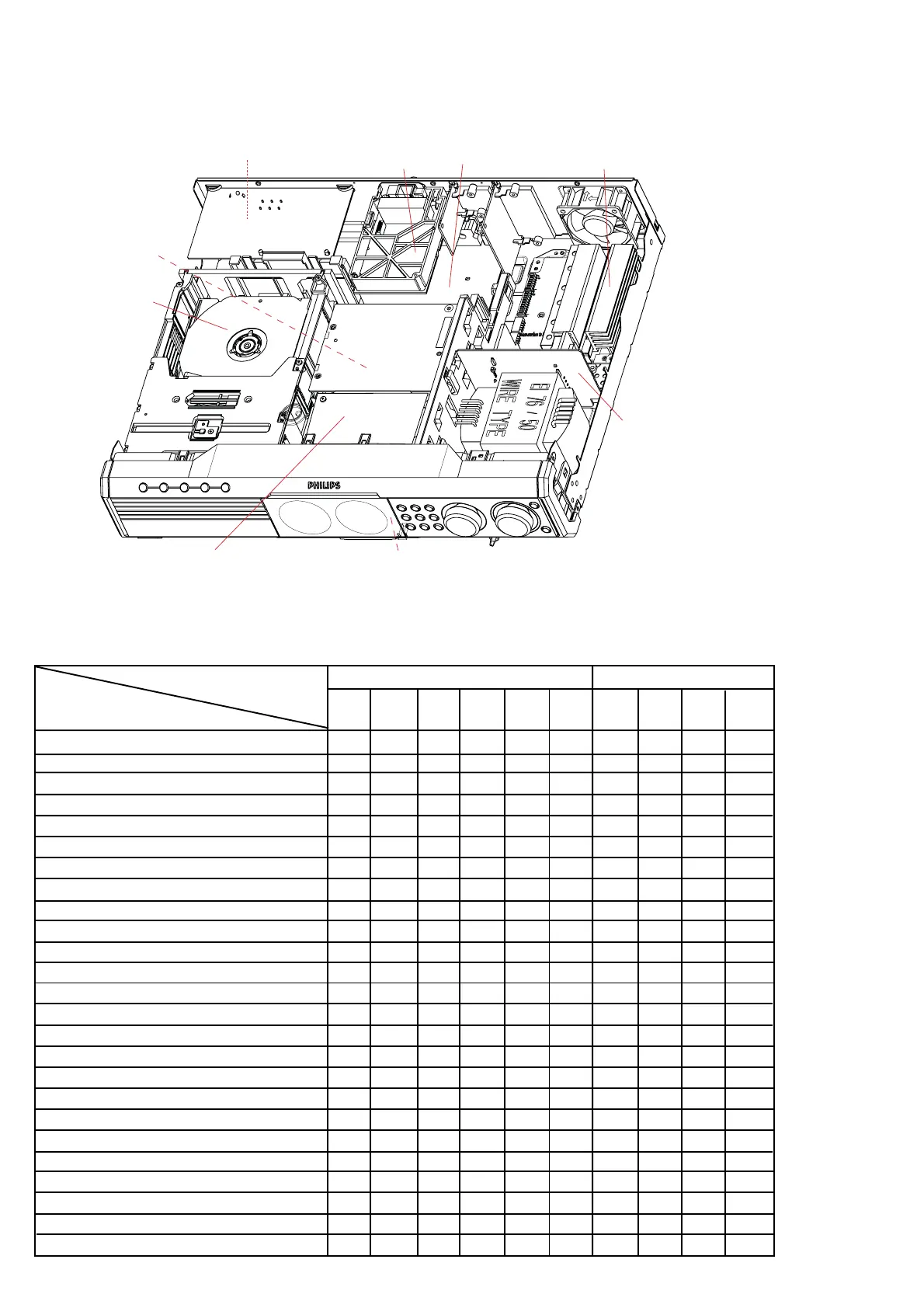

LOCATION OF PC BOARDS
/21R /21S /22S /33S /35S /78 /37
Karaoke x x - x x -
RDS + News - - x - - -
Progressive Scan x x - x x x
Standby - Clock Display xxxx x x
ECO Standby - No Display xxxx x x
Voltage Selector x x - - x -
Digital In / Out xxxx x x
Aux Input xxxx x x
TV Input xxxx x x
Line Output xxxx x x
SCART output - - x - - -
Pr, Pb & Y Outputs x x - x x x
CVBS Output xxxx x x
S-Video Output xxxx x x
Headphone Socket xxxx x x
P-Scan board (Faroudja P-scan) ---- - x
Tuner board - ECO6 System non-Cenelec x x - x x x
Tuner board - ECO6 System Cenelec - - x - - -
75W 6-Ch (Single SW) with 1x Amplifier pcb ---- - -
75W 7-Ch (Twin SW) with 1x Amplifier pcb xxxx x x
VERSION VARIATIONS:
Type /Versions: MX5800SA MX5800SA
Features &
Board in used:
MAIN AMPLIFER
75W
MAINS BOARD
5DTC-DVD
LOADER
MECHANISM
ECO6 TUNER
BOARD
SUPPLY
BOARD
DAC
BOARD
A/V BOARD
FRONT PANEL
(just behind the Front Panel)
P-SCAN
BOARD
SACD BOARD
(below the DAC &
P-SCAN boards)
