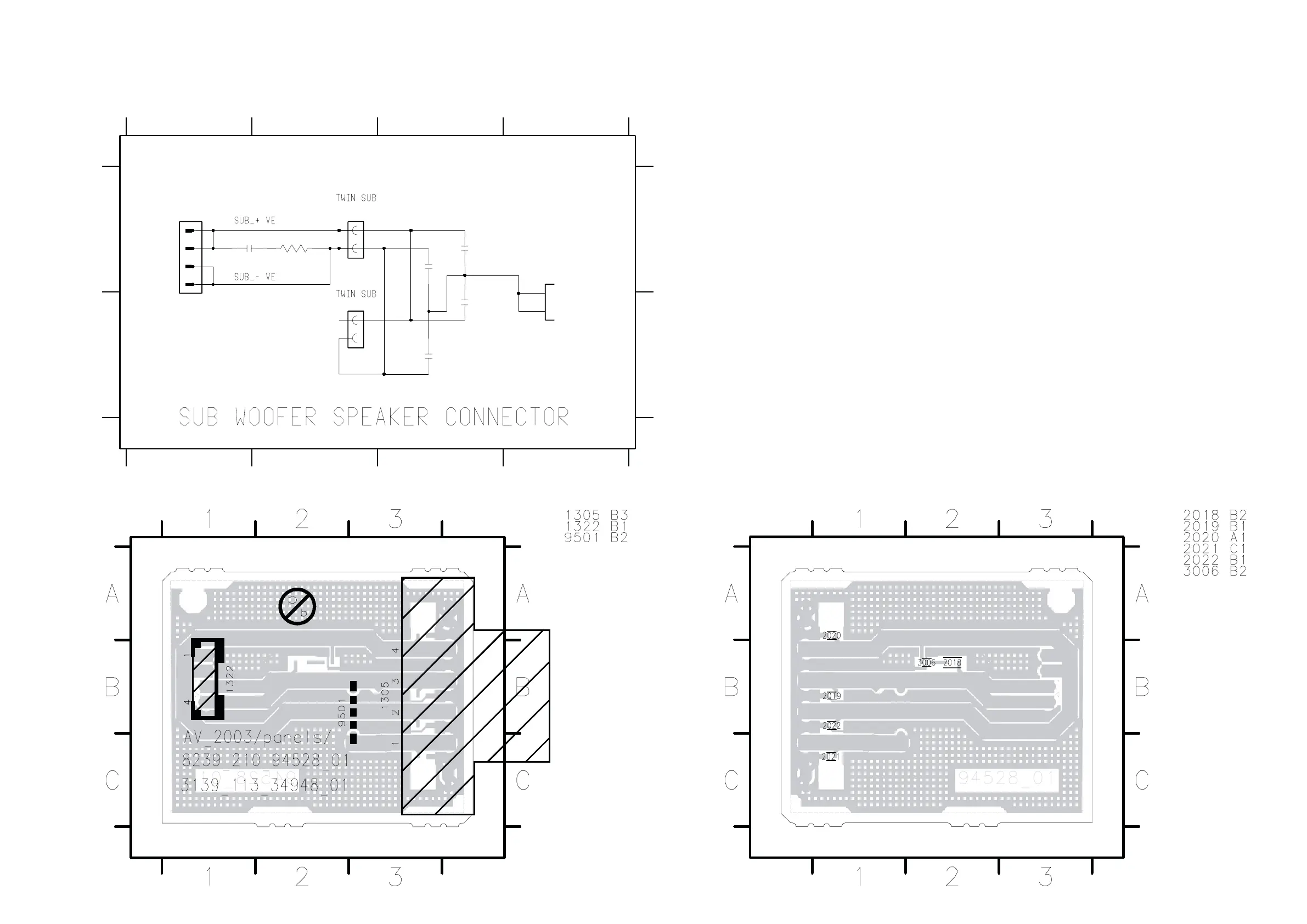

SW-OUT (SPK II) BOARD - CIRCUIT & LAYOUT DIAGRAMS - pcb layout ..... 34948
(For Twin Subwoofer versions only)
To SPK (75W 7ch)
To Amp (100W)
1234
1234
A
B
A
B
3006
22R
2018
220n
2020
10n
3
4
1305-F
LQR0410
56
10n
2019
LQR0410
1305-A
1
2
LQR0410
1305-B
2021
10n
10n
2022
EH-B
1322
1
2
3
4
1305-A A2
1305-B B2
1305-F B4
1322 B1
2018 A1
2019 A3
2020 A3
2021 B3
2022 B3
3006 A2
