138

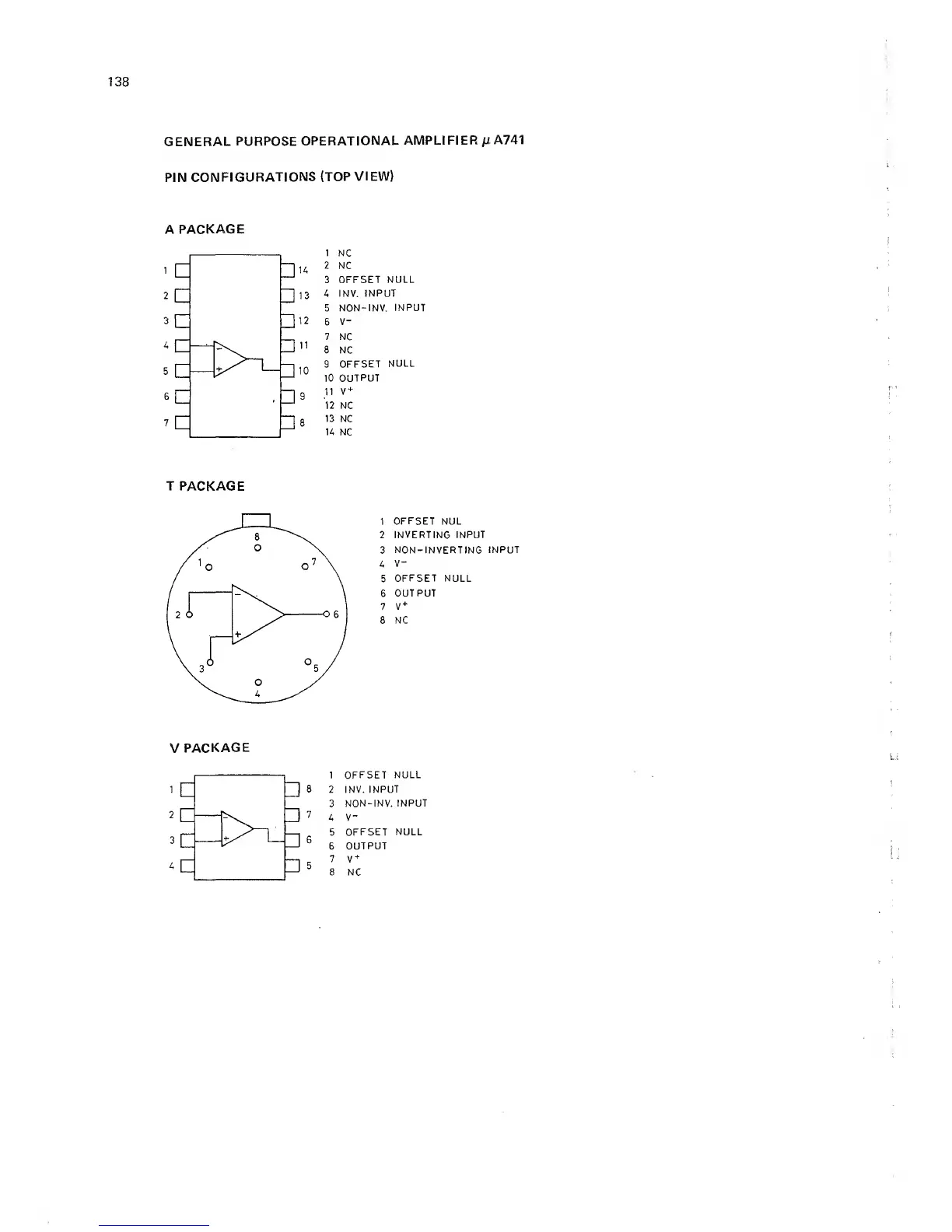

GENERAL
PURPOSE
OPERATIONAL
AMPLIFIER
ju A741
PIN
CONFIGURATIONS
(TOP
VIEW)
A PACKAGE
1 NC
2 NC
3
OFFSET NULL
4 INV.
INPUT
5 NON-INV.
INPUT
6
V-
7 NC
8 NC
9
OFFSET
NULL
10
OUTPUT
11
V
+
12 NC
13 NC
14 NC
T PACKAGE
1
OFFSET
NUL
2 INVERTING
INPUT
3 NON-INVERTING
INPUT
4
V-
5
OFFSET NULL
6
OUTPUT
7 V
+
8
NC
V
PACKAGE
1 OFFSET
NULL
2 INV.
INPUT
3
NON-INV.
INPUT
4 V-
5
OFFSET
NULL
6
OUTPUT
7
V
+
8 NC
