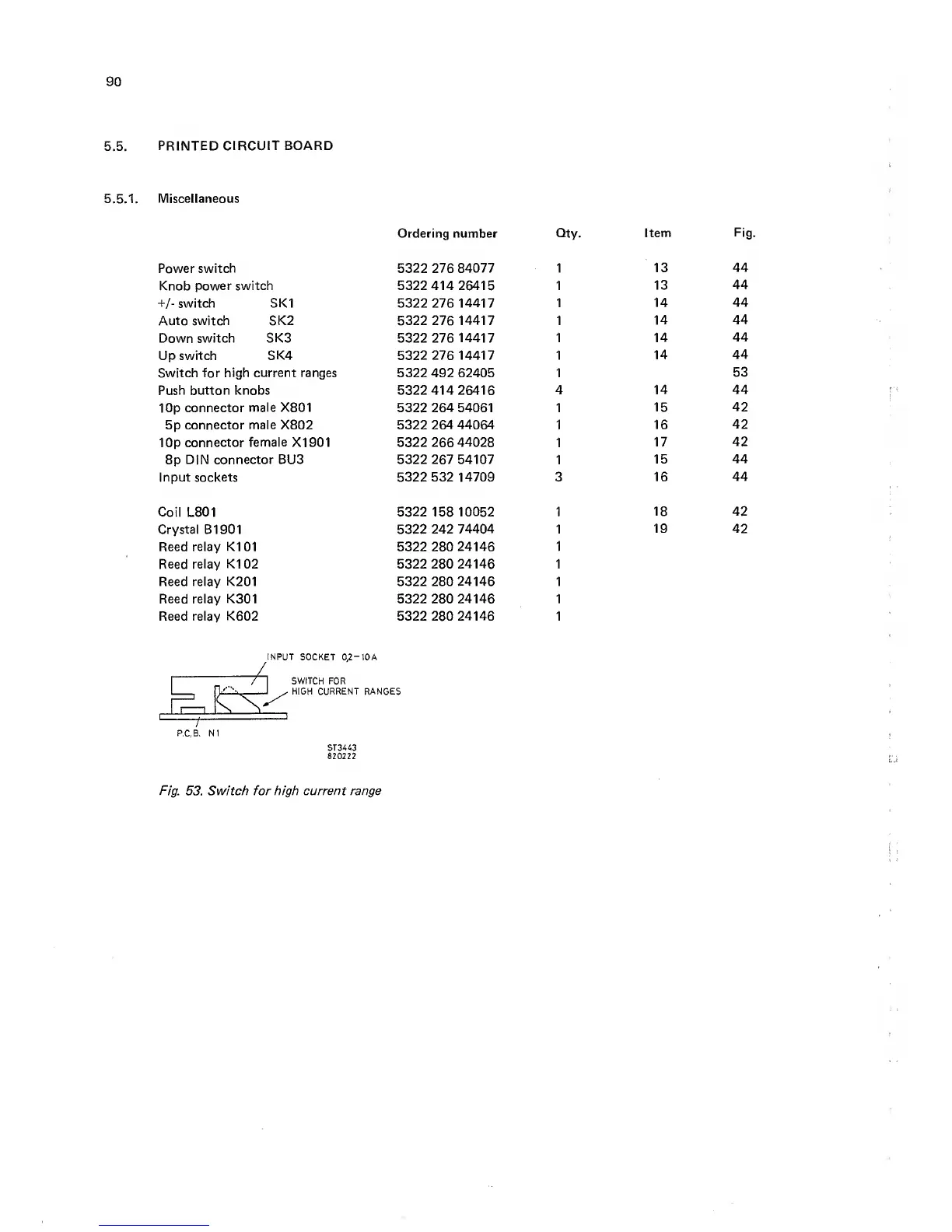

Philips pm2521 - Page 85

90
5.5.
PRINTED CIRCUIT BOARD
5.5.1.
Miscellaneous
Ordering number Qty.
Item
Fig-
Power
switch 5322
276
84077 1
13
44
Knob
power switch 5322 414 26415 1
13
44
+/-
switch SKI 5322 276
14417 1
14
44
Auto
switch SK2 5322 276
14417
1
14 44
Down switch SK3 5322 276
14417 1
14
44
Up
switch SK4 5322 276 14417 1
14
44
Switch for
high current ranges
5322 492 62405
1
53
Push button knobs 5322 414 26416
4
14 44
lOp connector
male X801
5322
264 54061 1
15
42
5p
connector male
X802 5322
264 44064
1
16
42
1
0p
connector
female
XI 901 5322 266 44028 1
17
42
8p
DIN connector BUS 5322 267 54107 1
15
44
Input sockets 5322 532
14709
3
16
44
Coil L801
5322
158
10052 1
18 42
Crystal B1901 5322
242 74404 1
19 42
Reed relay
K101
5322 280
24146
1
Reed relay K102 5322
280 24146
1
Reed relay K201 5322
280 24146
1
Reed relay K301 5322
280
24146 1
Reed relay K602 5322 280
24146
1
INPUT SOCKET 0,2-tOA
/
SWITCH
FOR
HIGH CURRENT RANGES
P.C.B. Nl
ST3443
820222
Fig.
53.
Switch for high current range
