15 EN

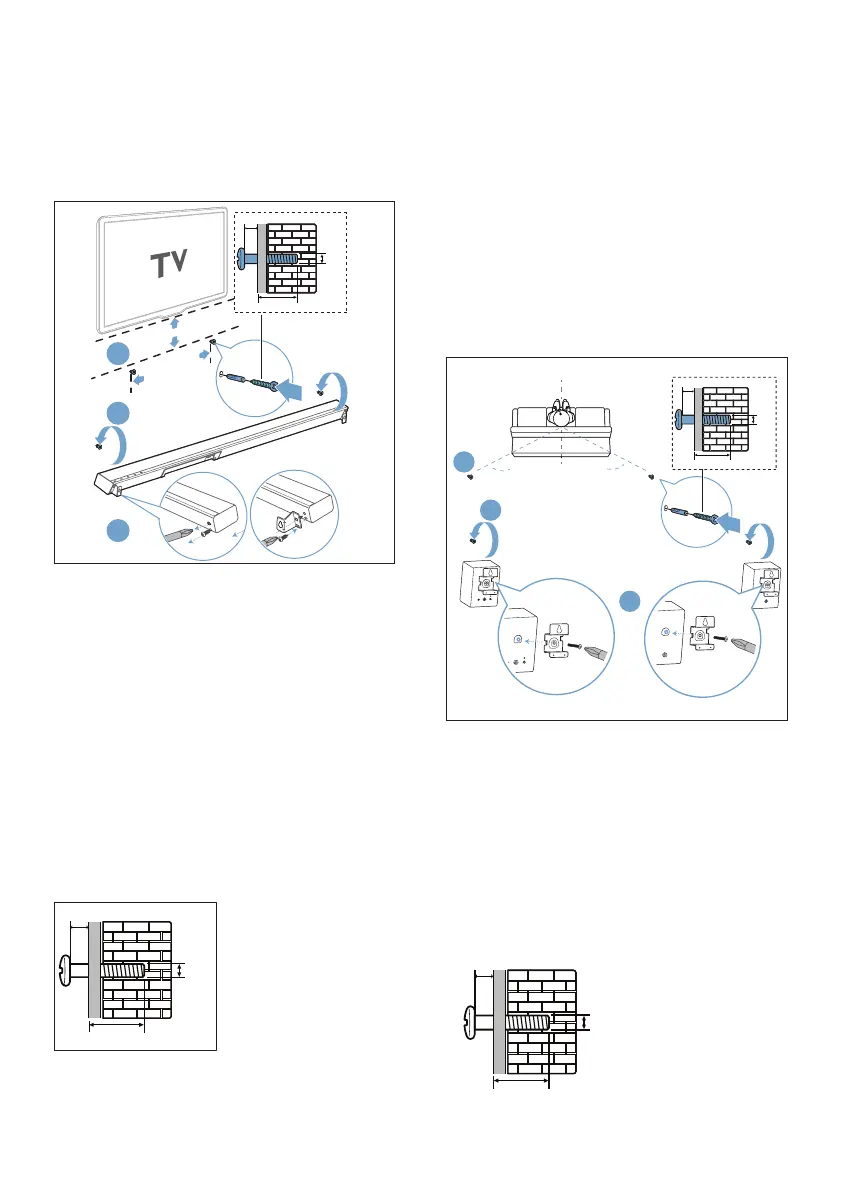

Suggested wall mounting angle of
Surround R/L
The suggested angle of the Surround
left and right speakers from your sitting
position is 110 degrees (see below).
1 Drill 2 parallel holes (Ø 3-8mm each
according to wall type) on the wall.
» Secure the dowels and screws in
the holes.
2
1
3
3.5-4mm/0.14”-0.16”
4mm/
0.16”
>25mm/0.98”
110° 110°
2 Attach the wall brackets (x2) to
the Surround R/L with screws. Self
Tapping Screw ø4-20mm.
3 Hang the Surround R/L on the
fastening screws.
Screw length/diameter of Surround R/L
(Self Tapping Screw ø4-32mm.)
> 25mm
3.5-4mm
4mm
> 25mm
» You can use the wall mount
template provided for helping the
drilling holes position on the wall
» Secure the dowels and screws in
the holes.
2
1
1076 mm / 42"
~50mm/2.0"
3
3.5-4mm/0.14”-0.16”
4mm/
0.16”
>25mm/0.98”
2 Remove the screws (x4) from the
main unit.
» Attach the wall brackets (x2) to
the main unit with the screws
removed from the main unit. Self
Tapping Screw ø3-10mm.
3 Hang the Soundbar on the fastening
screws.
Screw length/diameter of Soundbar
(Self Tapping Screw ø4-32mm.)
> 25mm
3.5-4mm
4mm
> 25mm
