Philips TAB8967 - Connecting via Optical Cable; Connecting via AUX Cable

17 EN
1 On your TV, turn on HDMI-CEC
operations. For details, see the TV user
manual.
• The HDMI ARC connector on the
TVmightbelabeleddierently.
For details, see the TV user
manual.
2 Using a High Speed HDMI cable,
connect the HDMI OUT (eARC/ARC)-
TO TV connector on your Soundbar
to the HDMI ARC connector on the
TV.
Note
• Your TV must support the HDMI-CEC and ARC
function. HDMI-CEC and ARC must be set to On.
• The setting method of HDMI-CEC and ARC may
dierdependingontheTV.Fordetailsabout
ARC function, please refer to your TV owner’s
manual.
• Make sure to use the HDMI cables can support
the ARC function.

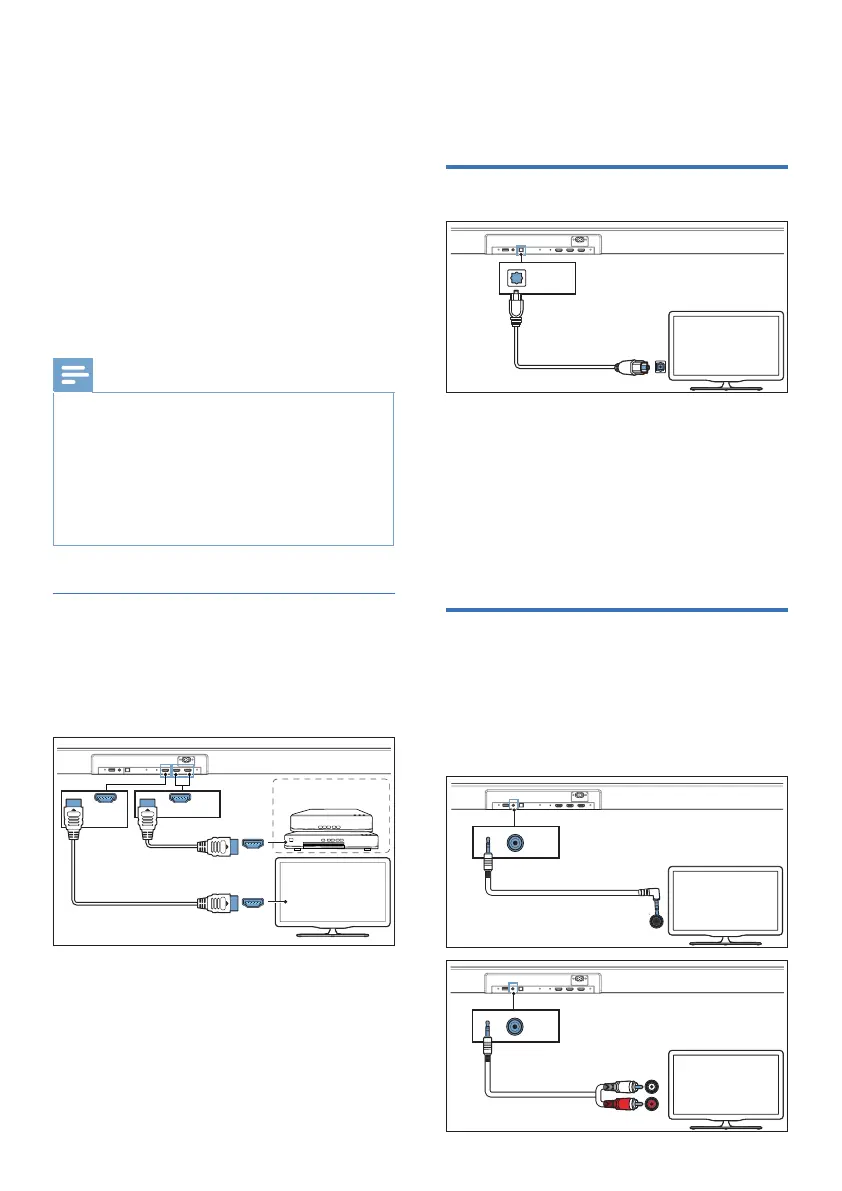

Option 2: Standard HDMI
If your TV is not HDMI ARC-compliant,
connect your soundbar to the TV through
a standard HDMI connection.
HDMI IN
HDMI OUT
HDMI 1 / HDMI 2
TV
Blu-ray Player / DVD Player /
Recorder / Set-top Box...
TV
HDMI OUT
(eARC/ARC)
Blu-ray Player / DVD Player /
Recorder / Set-top Box...
1 Use an HDMI cable to connect the
soundbar’s HDMI IN (1 or 2) socket
to your external devices (e.g. games
consoles, DVD players and blu ray).
2 Use an HDMI cable to connect the
soundbar’s HDMI OUT (eARC/ARC)
socket to the TV’s HDMI IN socket.
Connect to Optical Socket
OPTICAL OUT
OPTICAL
1 Using an optical cable, connect
the OPTICAL connector on your
Soundbar to the OPTICAL OUT
connector on the TV or other device.
• The digital optical connector
might be labeled SPDIF or SPDIF
OUT.
Connect to AUX Socket
a. Use a 3.5mm to 3.5mm audio cable
• Use a 3.5mm to 3.5mm audio cable
(not included) to connect the TV’s
headphone socket to the AUX socket
on the unit.
Headphone
(3.5mm )
AUDIO OUT
AUX
Headphone
AUX
R
L
AUDIO OUT
