Philips VR330/58 - Main 3;6 Schematic Diagram

1-10-57
1-10-58
1-10-59
HC464SCM3

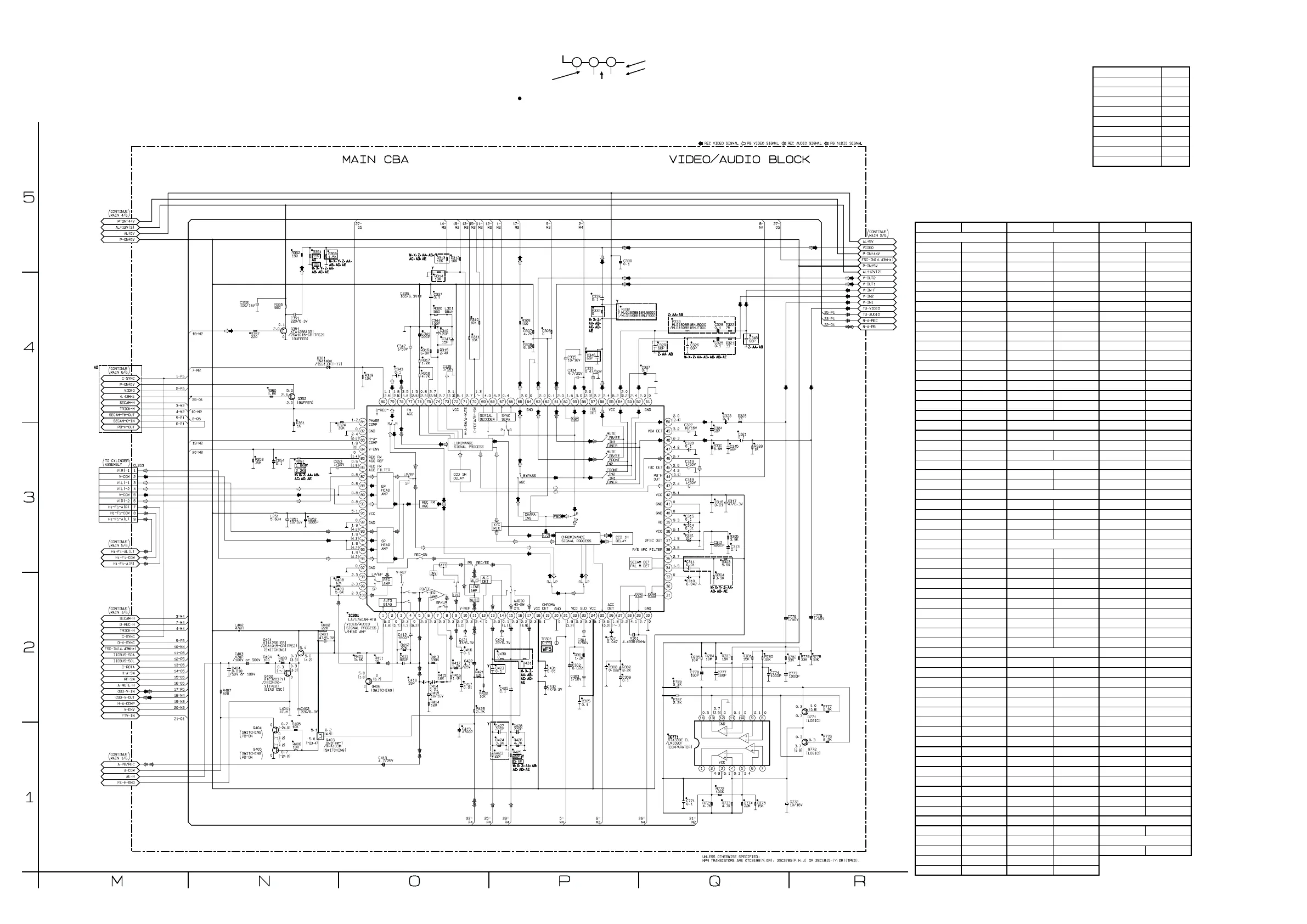

Main 3/6 Schematic Diagram
THE SAME VOLTAGE FOR
BOTH PLAY & REC MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
MODE: SP/REC
PLAY MODE
REC MODE
1
2
3
5.0
5.0
(2.5)
~
“ “ = SMD
MAIN 3/6 Schematic Diagram Parts Location Guide
Ref No. Position Ref No. Position
Ref No. Position
C251 N-3 C422 O-2
R321 Q-4
C252 N-3 C423 P-2
R322 Q-4
C253 O-3 C424 P-2
R323 Q-4
C254 N-3 C425 P-2
R324 O-3
C302P-2C427P-
1R328Q-3
C303P-2C428P-
1R330Q-3
C304P-2C430P-2
R331Q-3
C305P-2C431P-2
R332P-4
C307 P-2 C756 I-1 R333 Q-4
C308 P-2 C757 I-1 R351 N-5
C309 P-2 C771 Q-1
R352 N-5
C310 Q-2 C772 R-1
R355 N-4
C311 Q-3 C773 R-2
R357 N-4
C312 Q-3 C774 Q-2
R358 N-5
C313 Q-3 C775 R-2
R360 N-4
C314 Q-3 C776 Q-2
R361 N-3
C315 Q-3 C777 Q-2
R401 O-2
C316 Q-3 C778 Q-2
R402 N-2
C317 Q-3
R403 N-2
C318 Q-3 CL253 M-3
R404 N-2
C319 Q-3
R405 N-1
C320 Q-3 D301 N-4
R406 N-1
C321 Q-3
R407 N-2
C322 Q-3 IC301 O-2
R408 O-2
C323 Q-4 IC771 Q-
1 R409 O-2
C324 Q-3
R411 O-2
C325 Q-4 L251 N-3
R412 O-2
C326 Q-4 L301 O-4
R413 O-2
C327 Q-4 L401 N-2
R414 O-2
C328 Q-4 L402 N-2
R415 O-2
C329 Q-4
R416 O-2
C330 P-5 Q351 N-4
R417 O-2
C332 P-4 Q352 N-4
R421 O-2
C333 P-4 Q401 N-
2 R422 O-2
C334 P-4 Q402 N-2
R423 P-1
C335 P-4 Q403 N-1
R424 P-1
C337 O-4 Q404 N-1
R425 P-1
C338 O-4 Q405 N-1
R426 P-1
C339 O-4 Q406 O-2
R429 O-2
C340 O-4 Q771 R-2
R430 P-2
C341 O-4 Q772 R-1
R431 P-2
C342 O-4
R771 Q-1
C343 O-4 R251 N-3
R772 Q-1
C344 O-4 R252 N-3
R773 Q-1
C345 Q-4 R301 P-2
R774 Q-1
C346P-4R302P-2
R775Q-1
C347 O-4 R303 Q-3
R776 R-2
C348 Q-4 R304 Q-2
R777 R-2
C351 N-4 R305 Q-3
R778 R-2
C352 N-4 R306 P-4
R779 R-2
C401 N-2 R307 P-4
R780 Q-2
C402 N-2 R308 P-4
R781 Q-2
C403 N-2 R309 P-4
R782 Q-2
C404 N-2 R310 O-4
R783 Q-2
C411 O-2 R311 O-4
R784 Q-2
C412 O-2 R312 O-5
R785 Q-2
C413 O-1 R313 O-
5 R786 Q-2
C414 O-2 R314 O-4
R787 Q-2
C415 O-2 R315 O-4
C416 O-2 R316 O-4
X301 P-2
C417 O-2 R317 O-4
C418 O-2 R318 O-4
TP301 P-2
C419 O-1 R319 O-4
C421 O-2 R320 O-4
CRYSTAL OSCILLATOR
TEST POINT
TRANSISTORS
COILS
TRANSISTORS
CAPACITORS CAPACITORS
DIODE
ICS
CONNECTOR
RESISTORS
Comparison Chart of
Models and Marks
MODEL MARK
VR530/58 W
VR630/58 X
VR330/58 Y
VR730/58 Z
VR732/58 AA
VR830/58 AB
VRQ45/16 AC
VRQ45/39 AD
VRQ45/58 AE
