Philips VR330/58 - AFV Schematic Diagram ( W,X,Z,AA,AB,AC,AD,AE )

AFV Schematic Diagram ( W,X,Z,AA,AB,AC,AD,AE )
1-10-71 1-10-72
HC464SCAFV
THE SAME VOLTAGE FOR
BOTH PLAY & REC MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
MODE: SP/REC
PLAY MODE
REC MODE
1
2
3
5.0
5.0
(2.5)
~
“ “ = SMD

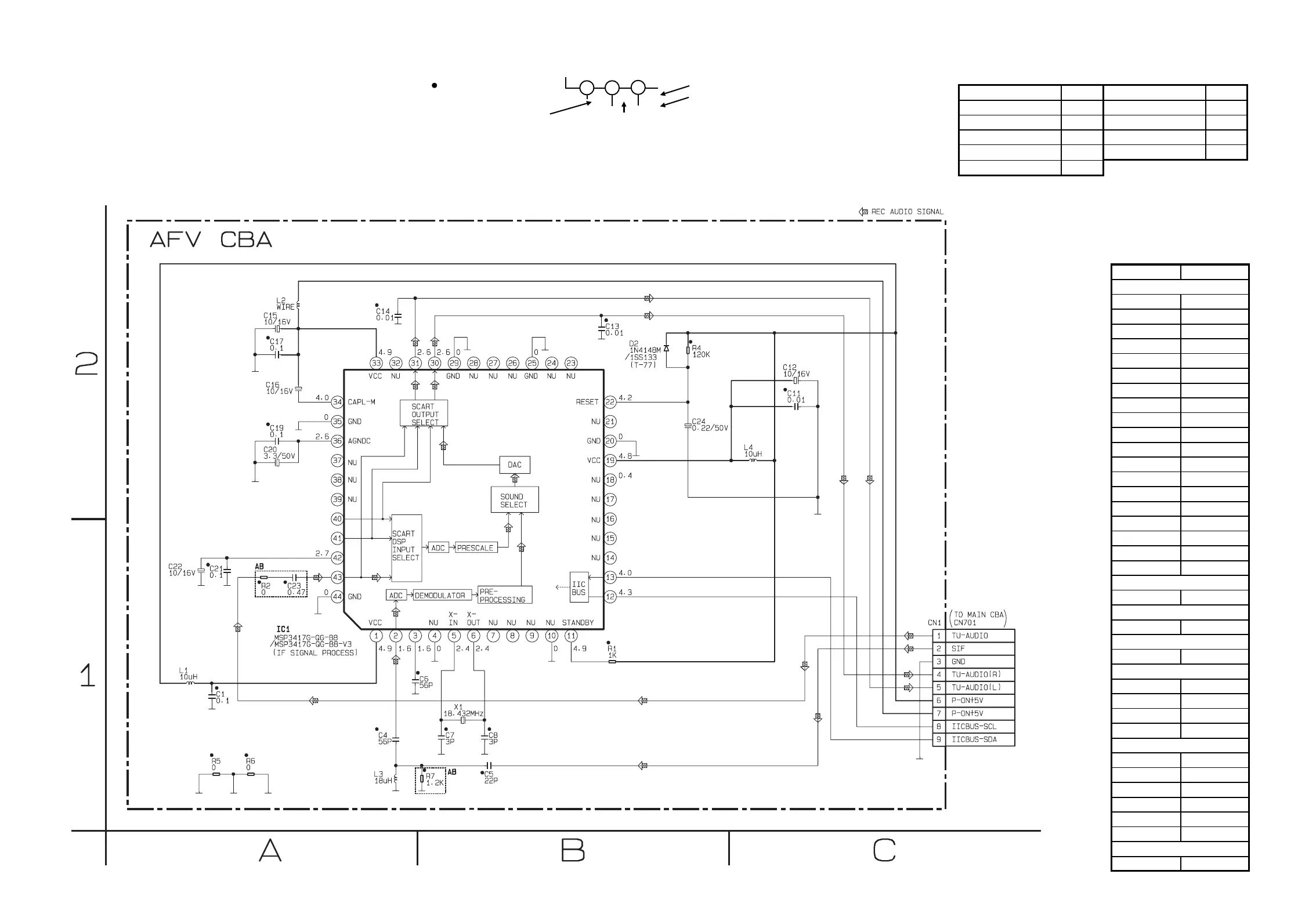

AFV Schematic Diagram
Parts Location Guide
Ref No. Position
C1 A-1
C4 A-1
C5 B-1
C6 B-1
C7 B-1
C8 B-1
C11 C-2
C12 C-2
C13 B-2
C14 A-2
C15 A-2
C16 A-2
C17 A-2
C19 A-2
C20 A-2
C21 A-1
C22 A-1
C23 A-1
C24 B-2
CN1 C-1
D2 B-2
IC1 A-1
L1 A-1
L2 A-2
L3 A-1
L4 C-2
R1 B-1
R2 A-1
R4 B-2
R5 A-1
R6 A-1
R7 B-1
X1 B-1
CAPACITORS
CONNECTOR
RESISTORS
I
C
DIODE
CRYSTAL OSCILLATORS
COILS
Comparison Chart of Models and Marks
MODEL MARK MODEL MARK
VR530/58 W VR830/58 AB
VR630/58 X VRQ45/16 AC
VR330/58 Y VRQ45/39 AD
VR730/58 Z VRQ45/58 AE
VR732/58 AA
