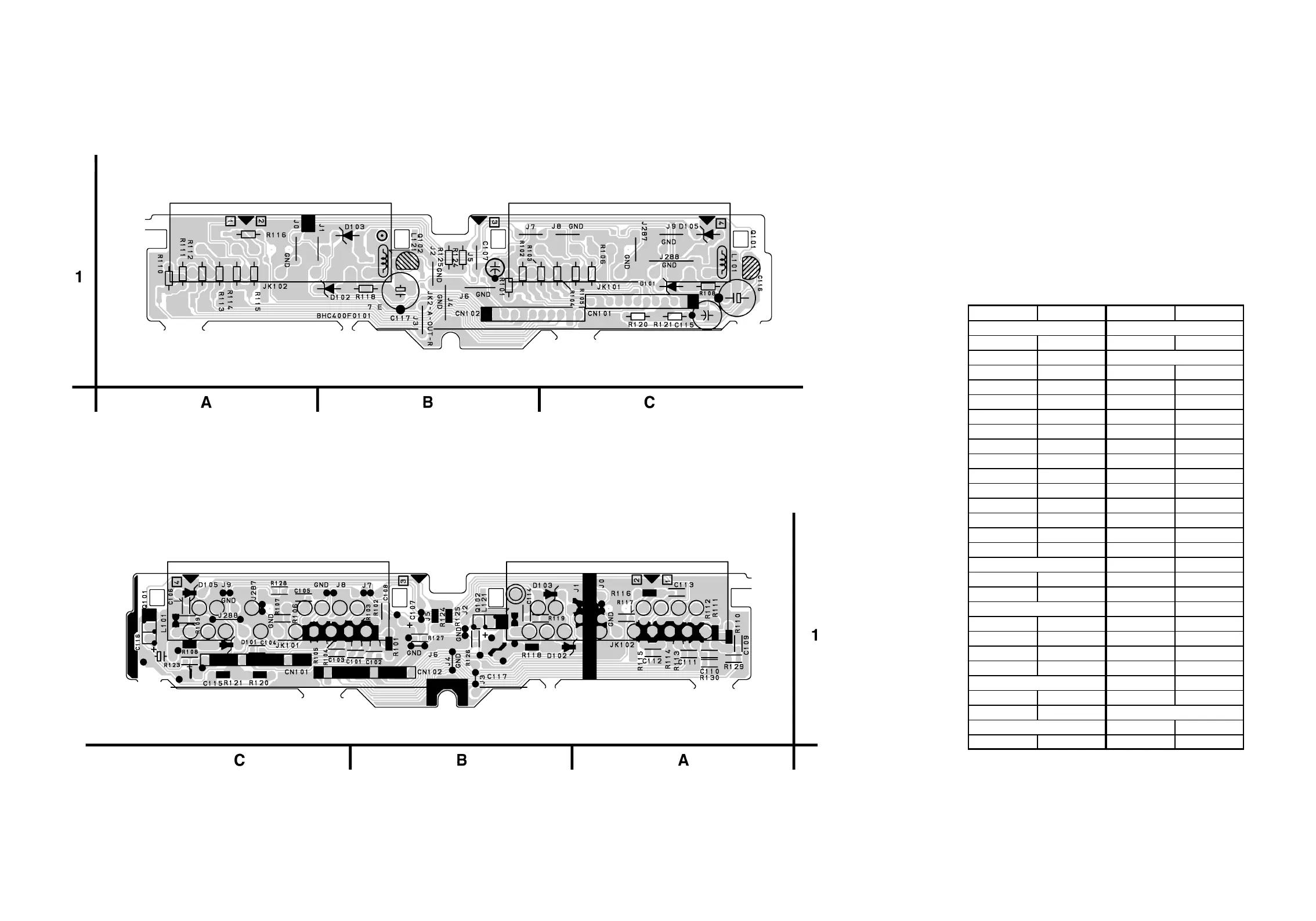

Philips VR330/58 - Jack CBA Top View; Jack CBA Bottom View

Jack CBA Top View
Jack CBA Bottom View
BHC400F01017-E
1-10-91
1-10-92
JACK CBA Parts Location Guide
Ref No. Position Ref No. Position
C101 C-1 Q102 B-1
C102 B-1
C103 C-1 R101 B-1
C104 C-1 R102 B-1
C105 C-1 R103 B-1
C107 B-1 R104 C-1
C108 B-1 R105 C-1
C109 A-1 R106 C-1
C110 A-1 R107 C-1
C111 A-1 R108 C-1
C112 A-1 R109 C-1
C113 A-1 R110 A-1
C115 C-1 R112 A-1
C116 C-1 R113 A-1
C117 B-1 R115 A-1
R116 A-1
CL101 C-1 R117 A-1
CL102 B-1 R118 B-1
R119 B-1
D101 C-1 R120 C-1
D102 B-1 R123 C-1
D103 B-1 R125 B-1
D105 C-1 R126 B-1
R127 B-1
L101 C-1 R128 C-1
L121 B-1
JK101 C-1
Q101 C-1 JK102 A-1
MISCELLANEOUS
TRANSISTORS
CONNECTORS
COILS
DIODES
RESISTORS
TRANSISTORSCAPACITORS
