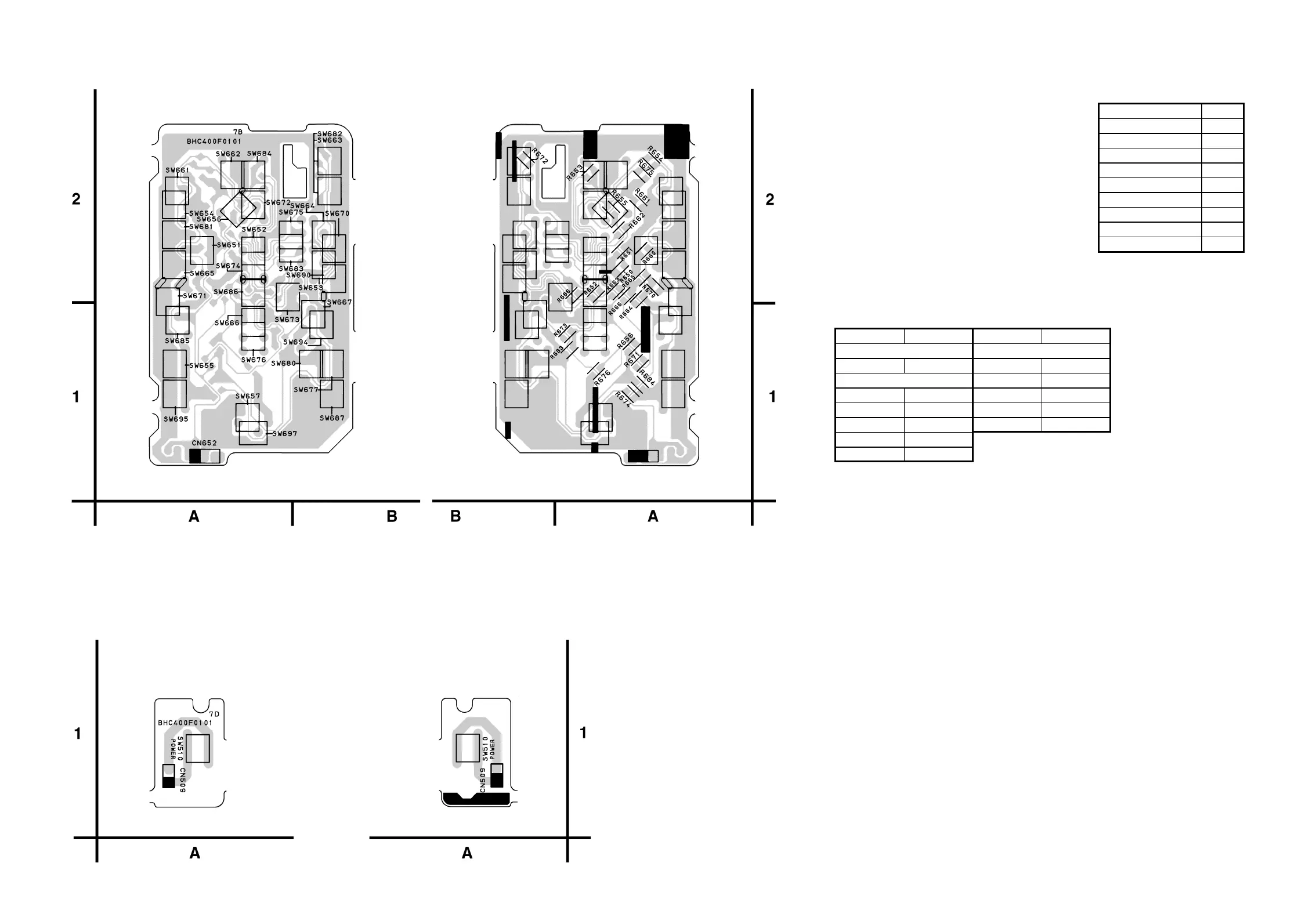

Philips VR330/58 - Function CBA Top View ( W,X,Y )

Function CBA Top View ( W,X,Y )
Function CBA Bottom View ( W,X,Y )
1-10-85 1-10-86
BHC400F01017-B
BHC400F01017-D
Power SW CBA Top View Power SW CBA Bottom View
Function CBA Parts Location Guide ( W,X,Y )
Ref No. Position Ref No. Position
CN651 A-1 SW651 A-2
SW652 A-2
R651 A-2 SW653 B-2
R652 A-1 SW654 A-2
R653 A-2 SW656 A-2
R654 A-2
R655 A-2
RESISTORS
CONNECTORS SWITCHES
Comparison Chart of
Models and Marks
MODEL MARK
VR530/58 W
VR630/58 X
VR330/58 Y
VR730/58 Z
VR732/58 AA
VR830/58 AB
VRQ45/16 AC
VRQ45/39 AD
VRQ45/58 AE
