Philips VR330/58 - Main 6;6 Schematic Diagram ( AD )

1-10-65
1-10-66

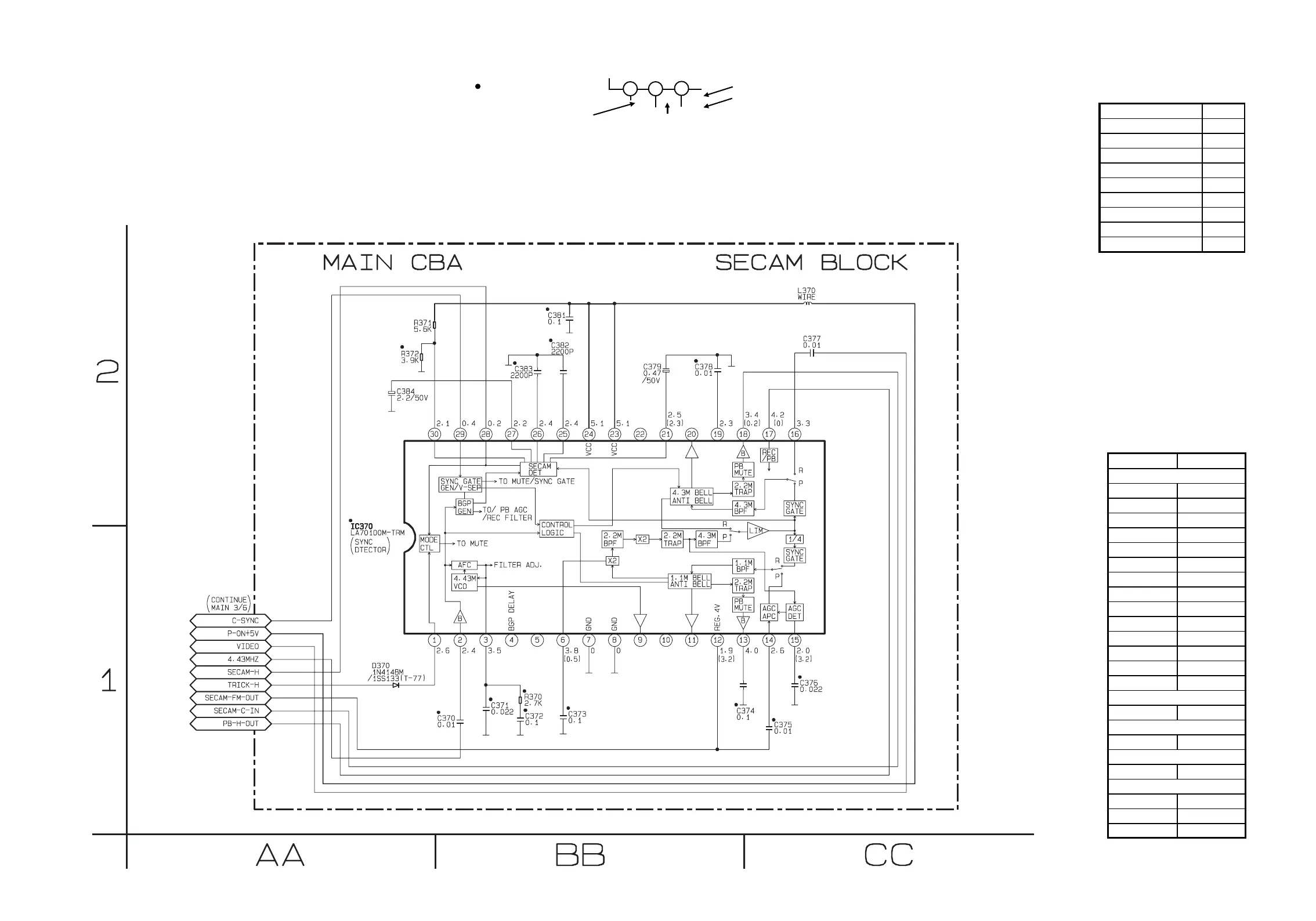

Main 6/6 Schematic Diagram ( AD )
HC492SCM6
THE SAME VOLTAGE FOR
BOTH PLAY & REC MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
MODE: SP/REC
PLAY MODE
REC MODE
1
2
3
5.0
5.0
(2.5)
~
“ “ = SMD
MAIN 6/6 Schematic Diagram
Parts Location Guide ( AD )
Ref No. Position
C370 BB-1
C371 BB-1
C372 BB-1
C373 BB-1
C374 BB-1
C375 CC-1
C376 CC-1
C377 CC-2
C378 BB-2
C379 BB-2
C381 BB-2
C382 BB-2
C383 BB-2
C384 AA-2
D370 AA-1
IC370 AA-1
L370 CC-2
R370 BB-1
R371 AA-2
R372 AA-2
CAPACITORS
DIODE
IC
RESISTORS
COILS
Comparison Chart of
Models and Marks
MODEL MARK
VR530/58 W
VR630/58 X
VR330/58 Y
VR730/58 Z
VR732/58 AA
VR830/58 AB
VRQ45/16 AC
VRQ45/39 AD
VRQ45/58 AE
