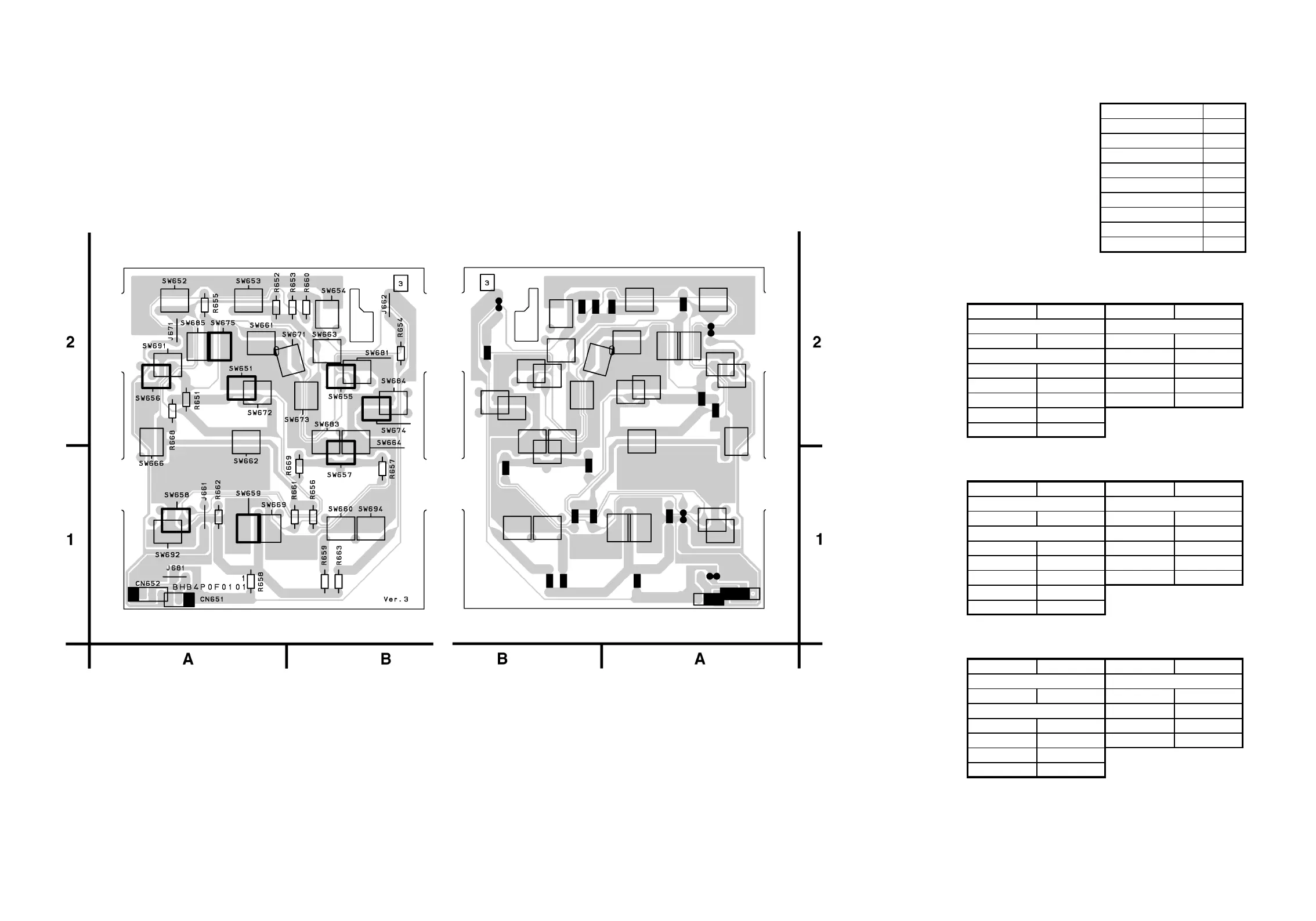

Philips VR330/58 - Function CBA Top View

Function CBA Top View
( Z,AA,AB,AC,AD,AE )
Function CBA Bottom View
( Z,AA,AB,AC,AD,AE )
BHB4P0F01011
Function CBA Parts Location Guide ( Z,AA )
Ref No. Position Ref No. Position
CN651 A-1 SW671 A-1
SW672 A-1
R652 A-2 SW673 B-1
R653 A-2 SW674 B-1
R654 A-2 SW675 B-1
R655 A-2
R668 B-2
Function CBA Parts Location Guide ( AB )
Ref No. Position Ref No. Position
CN651 A-1 SW672 A-2
SW681 B-2
R652 A-2 SW683 B-2
R653 A-2 SW684 B-2
R654 A-2 SW685 A-2
R655 A-2
R668 B-2
Function CBA Parts Location Guide ( AC,AD,AE )
Ref No. Position Ref No. Position
CN651 A-1 SW669 A-1
SW691 A-1
R660 B-2 SW692 B-1
R662 A-1 SW694 B-1
R663 B-1
R668 A-1
RESISTORS
CONNECTORS SWITCHES
RESISTORS
CONNECTORS SWITCHES
RESISTORS
CONNECTORS SWITCHES
Comparison Chart of
Models and Marks
MODEL MARK
VR530/58 W
VR630/58 X
VR330/58 Y
VR730/58 Z
VR732/58 AA
VR830/58 AB
VRQ45/16 AC
VRQ45/39 AD
VRQ45/58 AE
1-10-87
1-10-88
