Philips VR330/58 - Jack Schematic Diagram

1-10-75 1-10-76

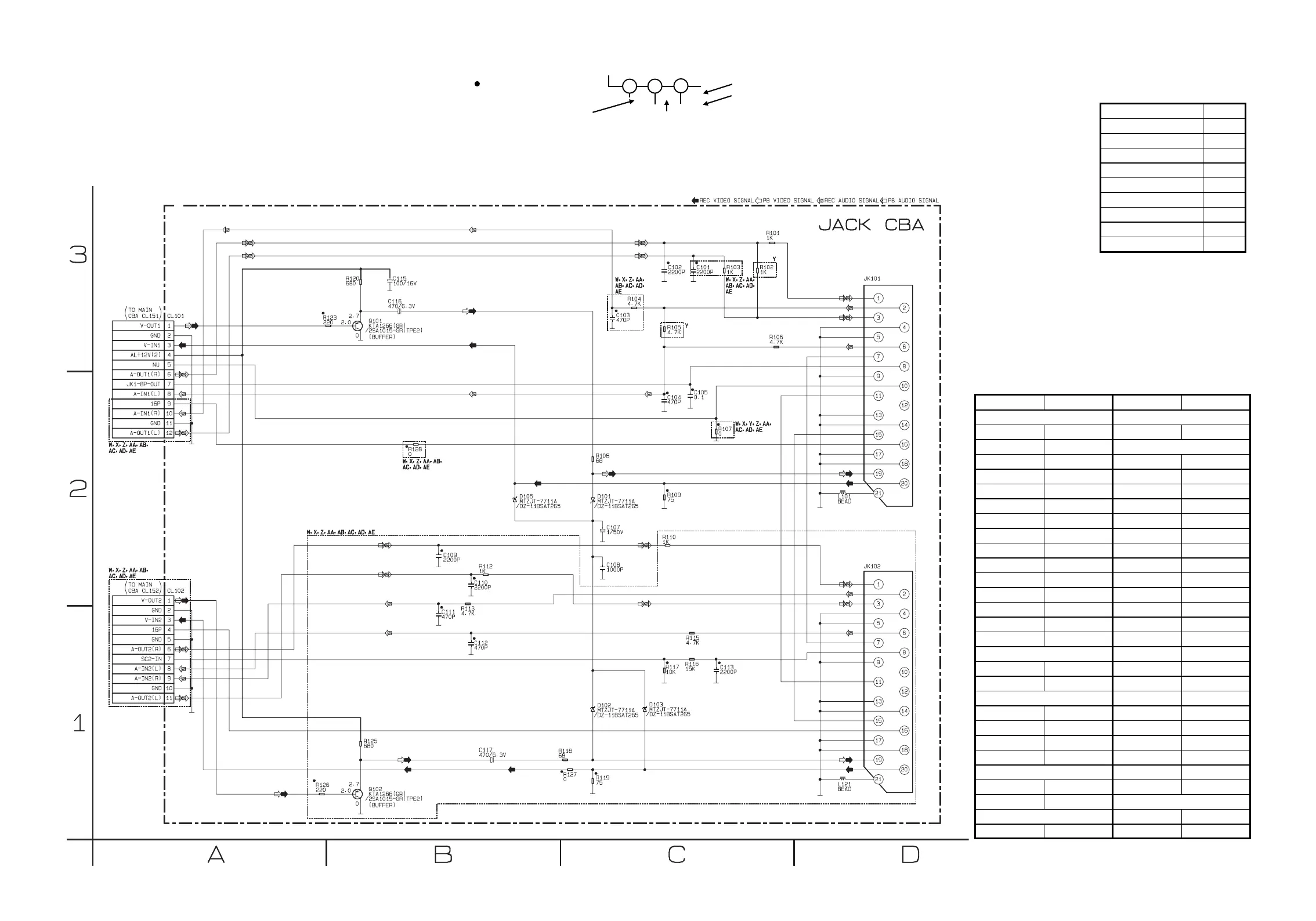

Jack Schematic Diagram
HC464SCJ
THE SAME VOLTAGE FOR
BOTH PLAY & REC MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
MODE: SP/REC
PLAY MODE
REC MODE
1
2
3
5.0
5.0
(2.5)
~
“ “ = SMD
Jack Schematic Diagram Parts Location Guide
Ref No. Position Ref No. Position
C101 C-3 Q102 B-1
C102 C-3
C103 C-3 R101 B-1
C104 C-2 R102 C-3
C105 C-2 R103 C-3
C107 C-2 R104 C-3
C108 C-2 R105 C-3
C109 B-2 R106 C-3
C110 B-2 R107 C-2
C111 B-1 R108 C-2
C112 B-1 R109 C-2
C113 C-1 R110 C-2
C115 B-3 R112 B-2
C116 B-3 R113 B-1
C117 B-1 R115 C-1
R116 C-1
CL101 A-3 R117 C-1
CL102 A-2 R118 C-1
R119 C-1
D101 C-2 R120 B-3
D102 C-1 R123 B-3
D103 C-1 R125 B-1
D105 B-2 R126 A-1
R127 C-1
L101 D-2 R128 B-2
L121 D-1
JK101 D-3
Q101 B-3 JK102 D-2
CONNECTORS
TRANSISTORSCAPACITORS
RESISTORS
DIODES
TRANSISTORS
COILS
MISCELLANEOUS
Comparison Chart of
Models and Marks
MODEL MARK
VR530/58 W
VR630/58 X
VR330/58 Y
VR730/58 Z
VR732/58 AA
VR830/58 AB
VRQ45/16 AC
VRQ45/39 AD
VRQ45/58 AE
