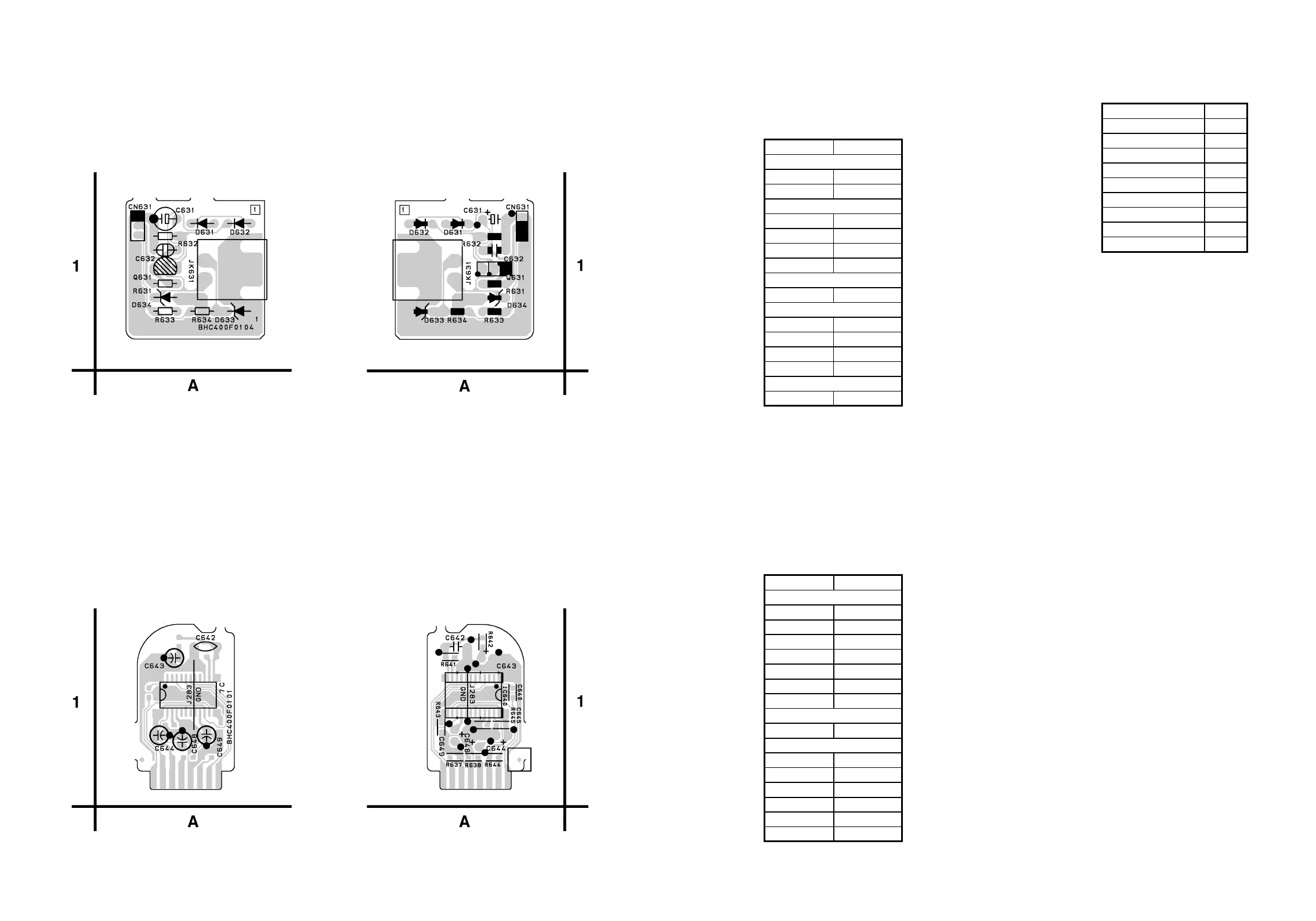

Philips VR330/58 - SMV CBA Top View ( AB )

1-10-89 1-10-90
VPS CBA Top View
BHC400F01017-C
VPS CBA Bottom View
SMV CBA Top View ( AB )
BHC400F01041
SMV CBA Bottom View ( AB )
SMV CBA
Parts Location Guide ( AB )
Ref No. Position
C631 A-1
C632 A-1
D631 A-1
D632 A-1
D633 A-1
D634 A-1
Q631 A-1
R631 A-1
R632 A-1
R633 A-1
R634 A-1
JK631 A-1
CAPACITORS
DIODES
TRANSISTORS
RESISTORS
MISCELLANEOUS
Comparison Chart of
Models and Marks
MODEL MARK
VR530/58 W
VR630/58 X
VR330/58 Y
VR730/58 Z
VR732/58 AA
VR830/58 AB
VRQ45/16 AC
VRQ45/39 AD
VRQ45/58 AE
VPS CBA
Parts Location Guide
Ref No. Position
C640 A-1
C642 A-1
C643 A-1
C644 A-1
C645 A-1
C648 A-1
C649 A-1
IC640 A-1
R638 A-1
R641 A-1
R642 A-1
R643 A-1
R644 A-1
R645 A-1
CAPACITORS
ICS
RESISTORS
