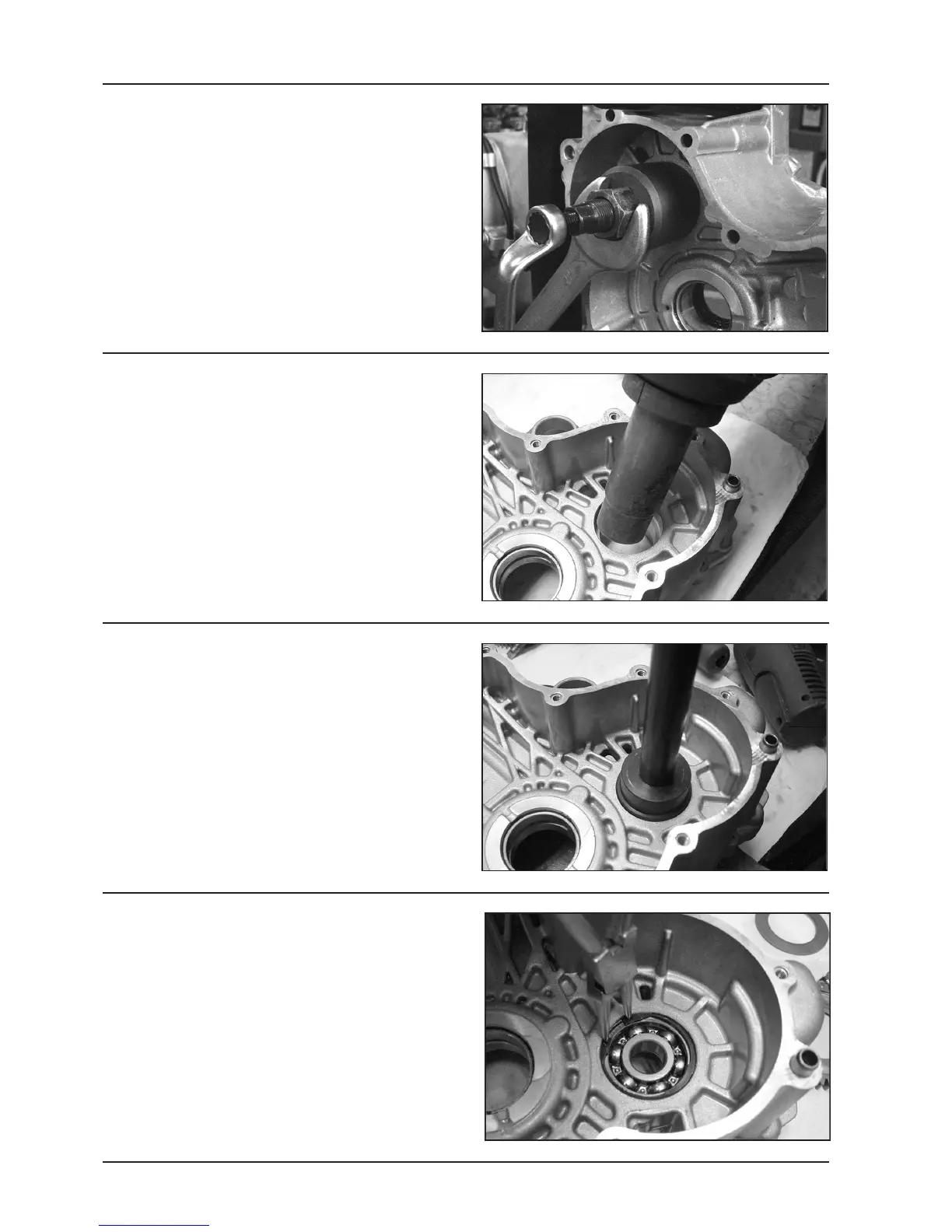

- Remove the bearing from the half crankcase trans-
mission side by means of the specific tool.
Specific tool:
Pliers 001467Y008
Bell 001467Y007
- Before assembling a new bearing, heat the half
crankcase flywheel side by means of the specific tool
- Put the half crankcase on a wooden base
Specific tool:
Heater 020151Y
- Fit a new bearing on the specific tool after having
greased the fitting slot
- Assemble the new bearing on the half crankcase by
means of the specific tool.
N.B.: If a bearing with a plastic cage is used, position the
balls so that they face the crankcase inner side.
Specific tool:
Punch handle 020376Y
Adapter 42x47 mm 020359Y
17 mm guide 020439Y
Driving shaft crankcase
05_261
- Assemble the snap ring.
