PIAGGIO 500 cc - Starting Ring Gear Assembly on Magneto Flywheel; Idler Gear with Torque Limiter Assembly

6 - 9
6

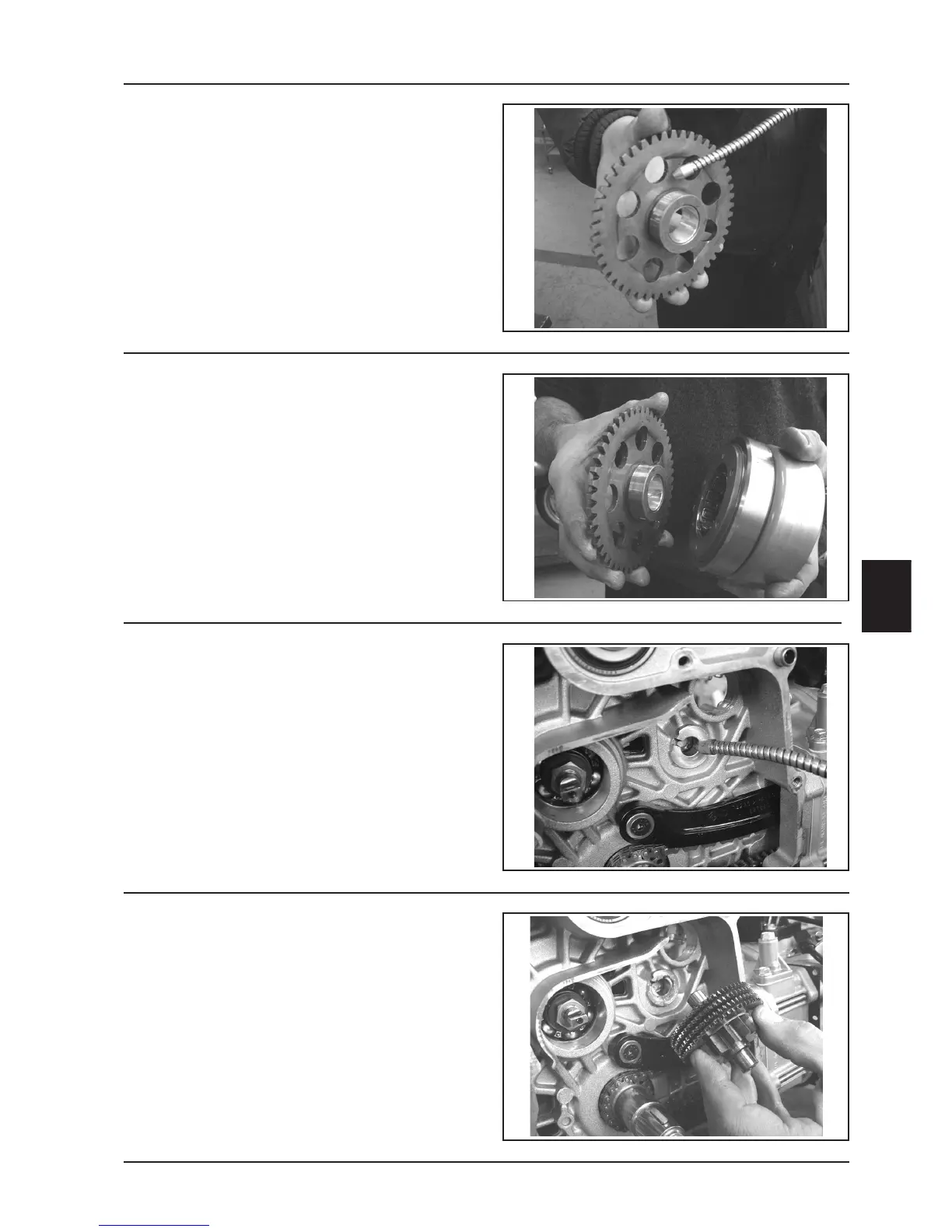

Starting ring gear assembly on magneto flywheel
- Oil the inner brass and the starting ring gear hub
surface
- Fit the starting ring gear on the flywheel and turn it
clockwise at the same time.
05_149
05_138
Idler gear with torque limiter assembly
- Grease the gear housing on the engine crankcase.
05_141
05_150
- Fit the idler gear with the torque limiter.
Flywheel and starting system
