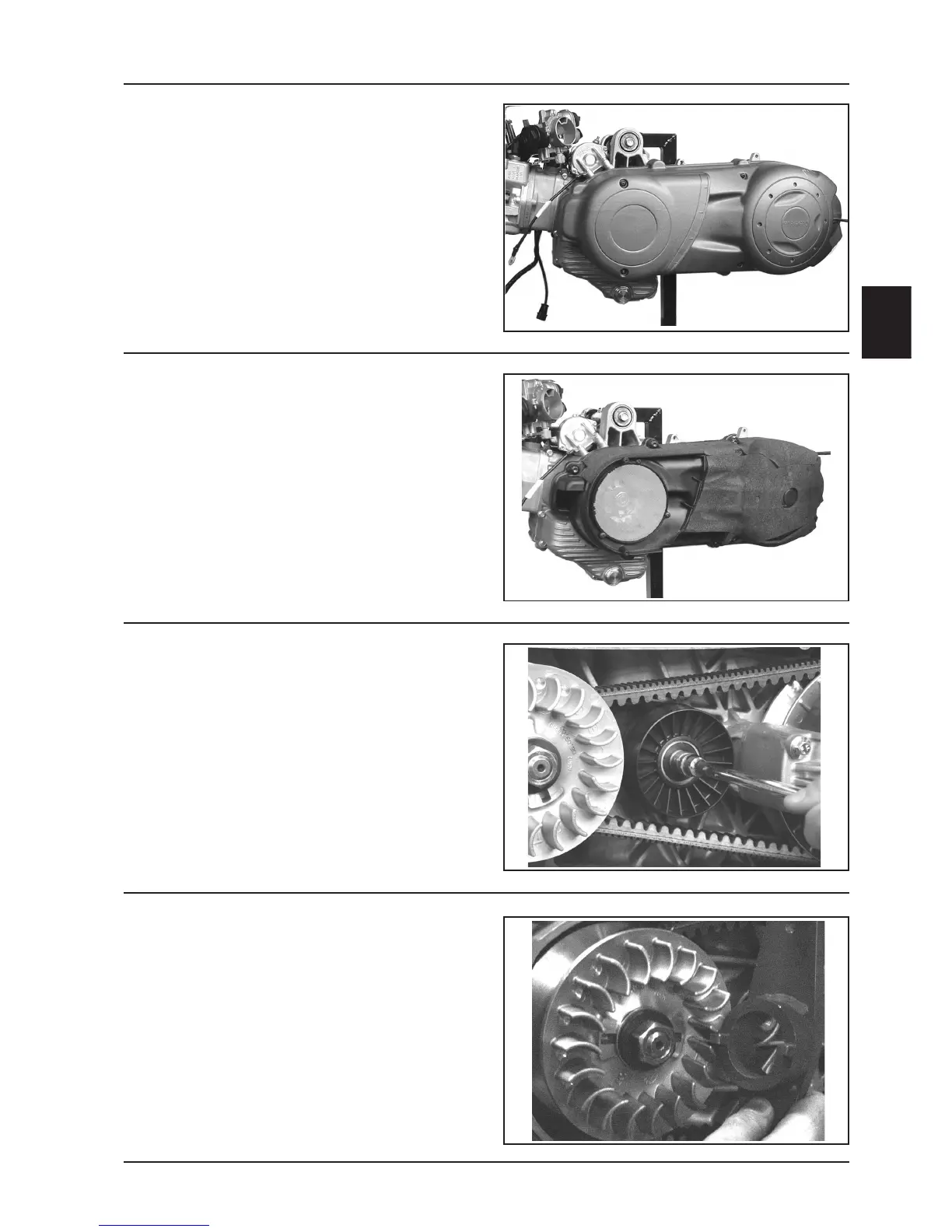

External transmission cover
- Unloose the 5 fixing screws
- Remove the external plastic cover
05_007
05_008
05_009
Transmission cover
- Unloose the 7 fixing screws
- Remove the cover and net filter
N.B.: Disassemble the net filter only if it is to be re-
placed.
Belt antiflapping roller
- Check that the roller is in good condition and that it
turns freely.
- Unloose the fixing screw with a 13 mm wrench
- Remove the roller and relevant bearing.
N.B.: If the roller does not turn freely, replace it.
Driving pulley
- Turn the pulley central nut with a 27 mm wrench to
align the internal holes horizontally, therefore allow-
ing for the specific tool fitting.
Specific tool:
Driving pulley lock wrench 020474Y
05_006
Automatic transmission
