PIAGGIO 500 cc - Countershaft Disassembly; Oil Pump Disassembly

8 - 6
05_255
05_256
05_254

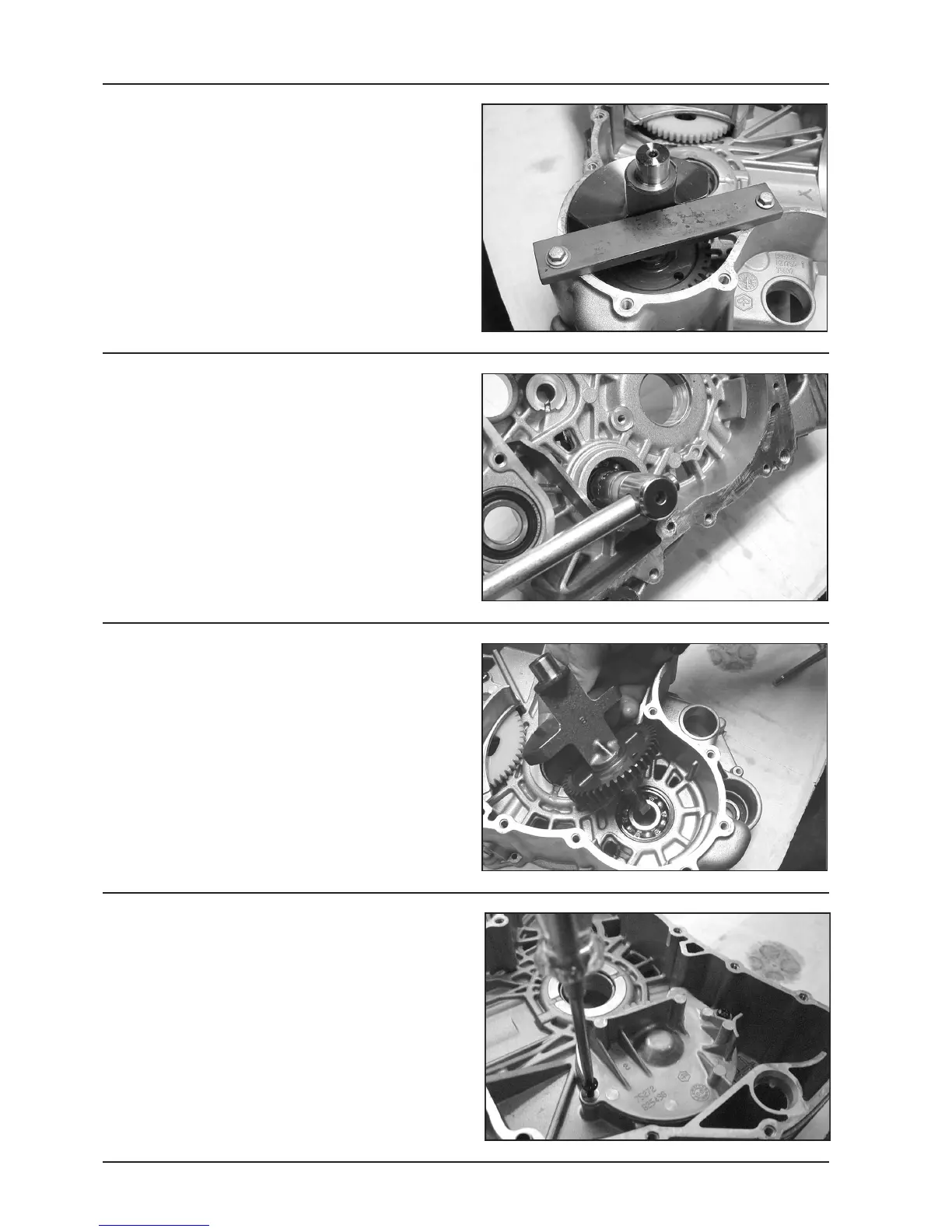

Countershaft disassembly
- Position the specific tool as shown in the figure.
Specific tool
Countershaft lock wrench: 020479Y
- Remove the fixing nut and relevant washer.
- Remove the specific tool and withdraw the countershaft
complete with control gear.
Driving shaft crankcase
05_258
Oil pump disassembly
- Remove the oil pump compartment gate by unscrew-
ing the 2 fixing screws and relevant washers.
