PIAGGIO 500 cc - Clutch Housing; Driven Pulley Assembly

3 - 5
3

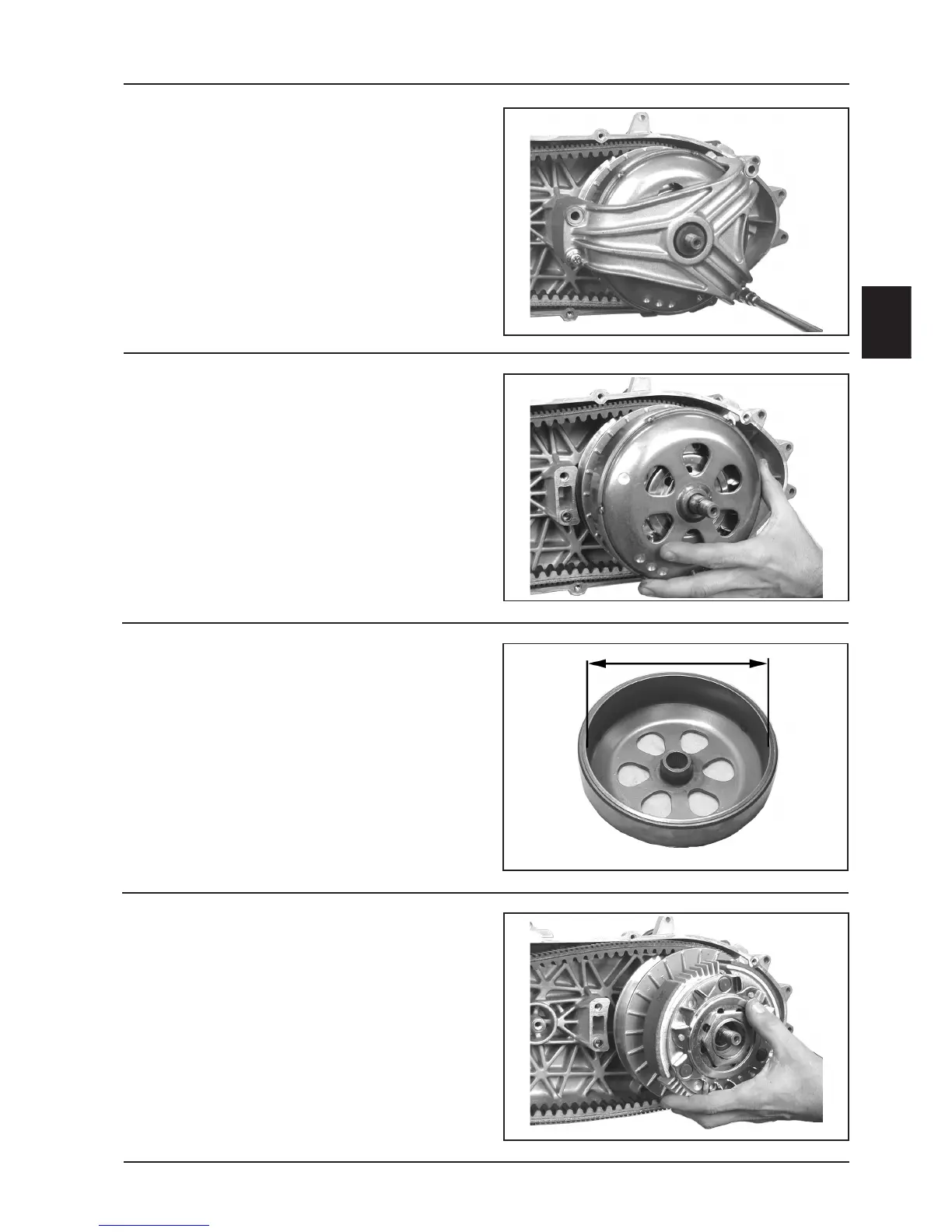

Automatic transmission
- Remove the specific tool
- Unloose the 2 remaining fixing screws of the driven
pulley axle support.
- Remove the driven pulley axle support and the washer.
- Remove the spacer below.
05_014
Clutch housing
- Remove the clutch housing.
05_016
05_015
- Check that the clutch housing shows no signs of wear
or damage.
- Measure the clutch housing I.D.
Standard value: 160.2 mm
Max value: 160.5 mm
N.B.: Check that the measured eccentricity is max 0.2 mm
05_017
Driven pulley assembly
- Remove the driven pulley assembly and relevant belt.
