6 - 6

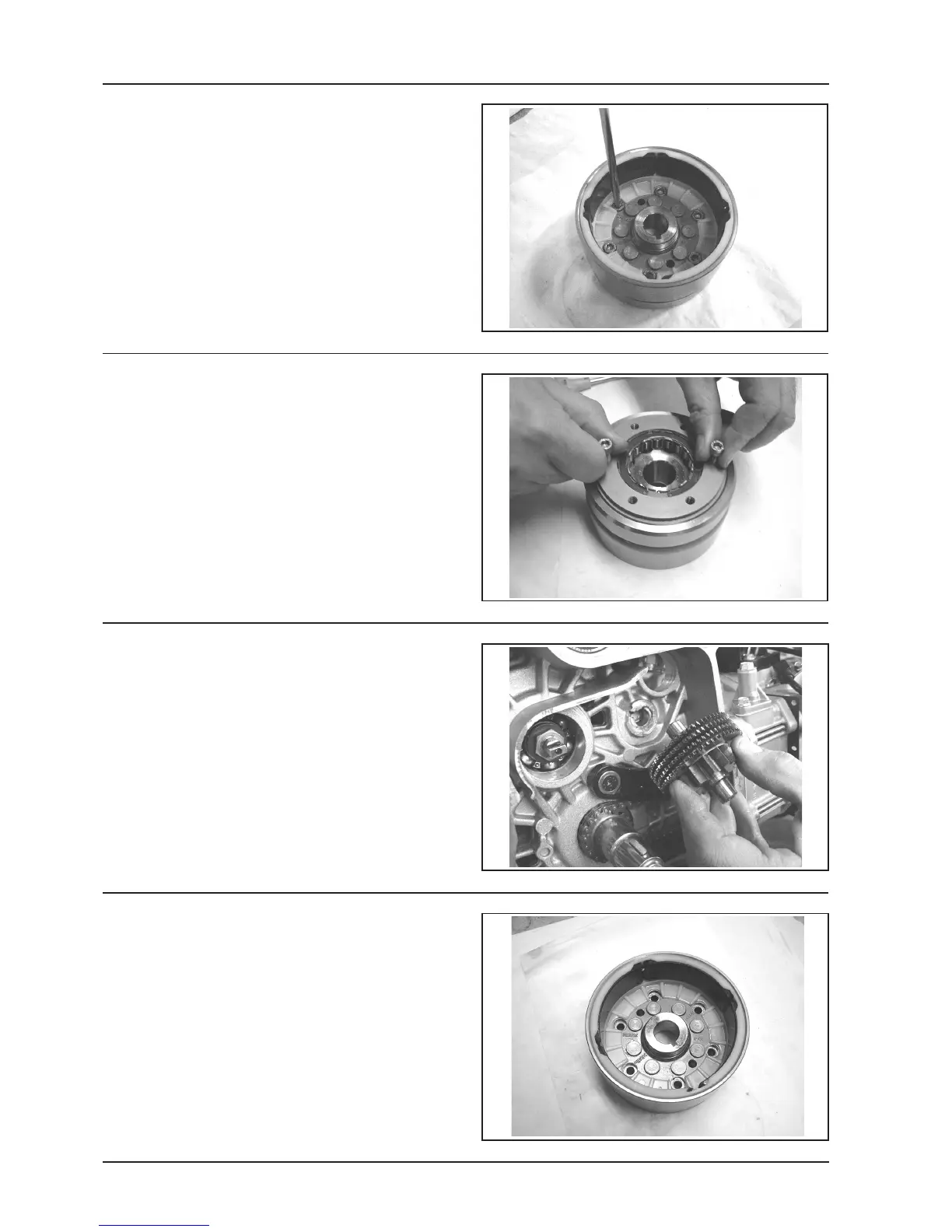

- Remove the freewheel from the magneto flywheel by
unloosing the 6 fixing screws.
N.B.: To be able to disassemble the freewheel, it is
recommendable to first unloose the 6 fixing screws with
the flywheel still assembled on the driving shaft.
05_140
05_139
- The freewheel is precisely coupled with the flywheel;
if disassembly becomes difficult, use 2 screws as
holding points and as extractors.
- Remove the idler gear provided with a torque limiter.
Checking the magneto flywheel components
- Check the magnetos condition.
- Check that the magneto supporting cage shows no
signs of deformation or breaking.
- Check that the flywheel riveting is not loose.
05_141
05_142
