6 - 5
6

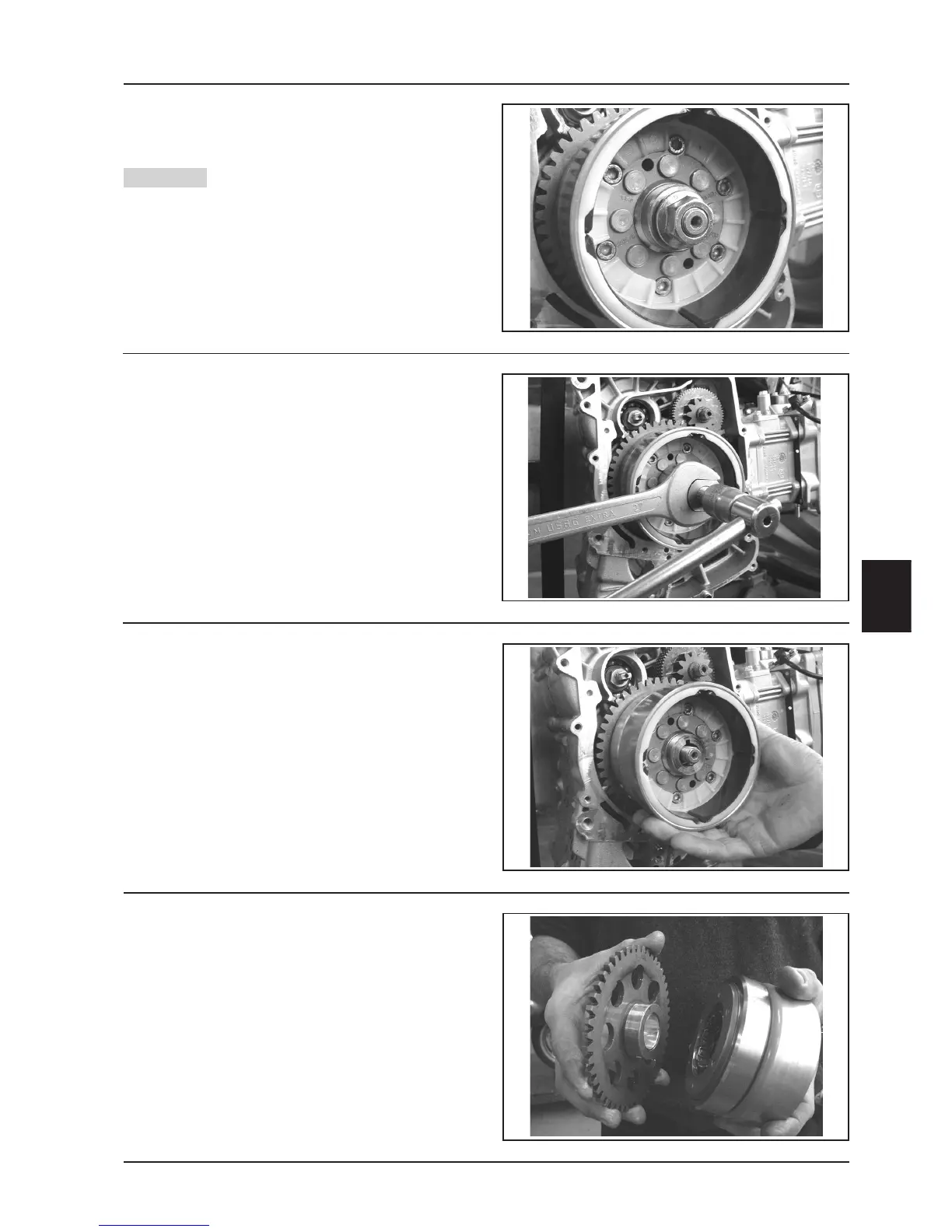

- Refit the nut as to slightly uncover the shaft and to free
the space where the washer was.
- This operation is necessary as the fly-
wheel is firmly locked, hence the cone detachment
could cause the rotor to fall with consequent breaking of
the magnetos.
05_136
05_135
- Fit the extractor.
- Use a 27mm wrench and a 19mm bush to unlock the
magneto flywheel.
Specific tool:
Flywheel extractor 020467Y
- Remove the extractor.
- Remove the nut and the magneto flywheel complete
with the starting ring gear.
- Remove the key from the driving shaft.
- Withdraw the starting ring gear from the free wheel by
turning it clockwise.
05_137
05_138
