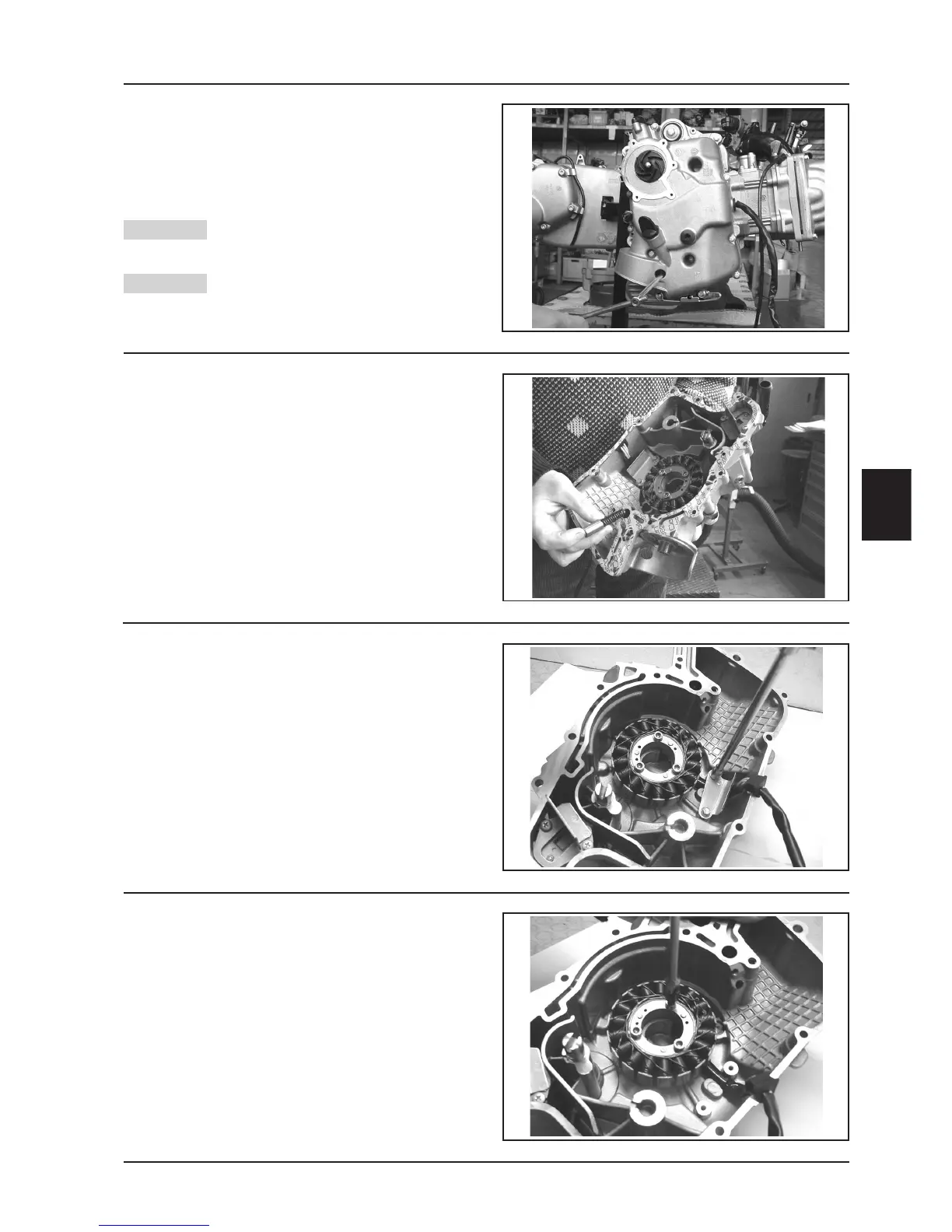

PIAGGIO 500 cc - Flywheel Cover Components Disassembly

5 - 5
5
- Unloose the 14 fixing screws.
- Remove the flywheel cover and relevant gasket, and
the stand stop bracket..
N.B.: Screws come supplied in 3 different lengths plus
2 for the stand stop. Take note of their positions.
- Avoid any interferences between the
stator and rotor while removing the cover.
- Do not drop the bypass valve and rel-
evant spring.
05_089
Flywheel cover components disassembly
- Remove the bypass and relevant spring.
- Remove the seal gasket
Stator
- Remove the 2 fixing screws and the harness guide
bracket.
05_090
05_091
Warning
Warning
- Unloose the 3 fixing screws and remove the stator
complete with the harness.
05_092
Flywheel cover
