Fuel injection
9 - 35
9

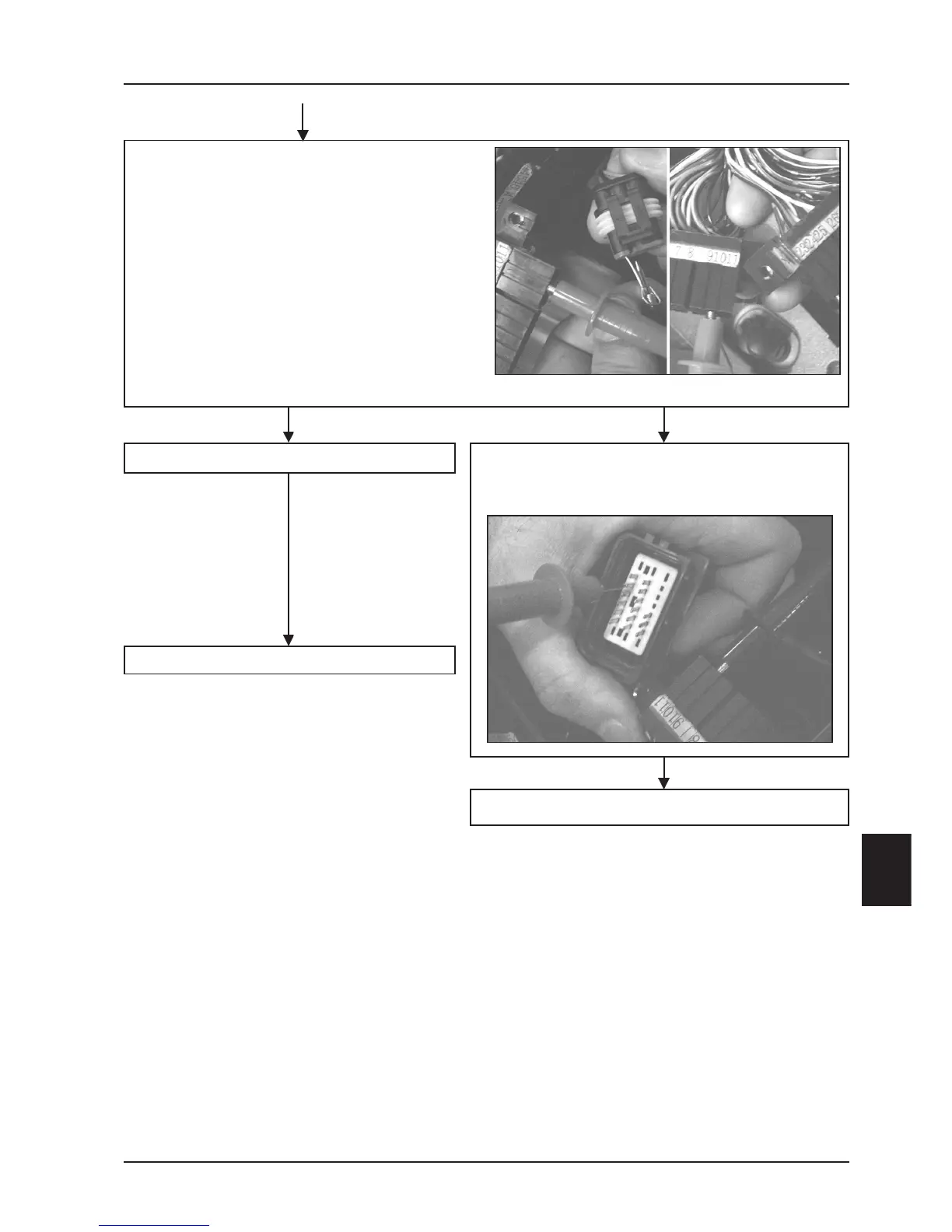

The circuit functions correctly
Disconnect the connection between the fuel injec-
tion system and the vehicle system.
Repeat controls in the two system sections.
YES NO
Repair any interruptions or short circuits
Check the control unit
Check the following conditions:
diagnosis socket - 10 control unit = continuity
diagnosis socket - 23 control unit = earthed
continuity
diagnosis socket - 9 control unit = continuity
10 - 23 = isolation (> 1MΩ)
9 - 23 = isolation (> 1MΩ)
