Fuel injection
9 - 44

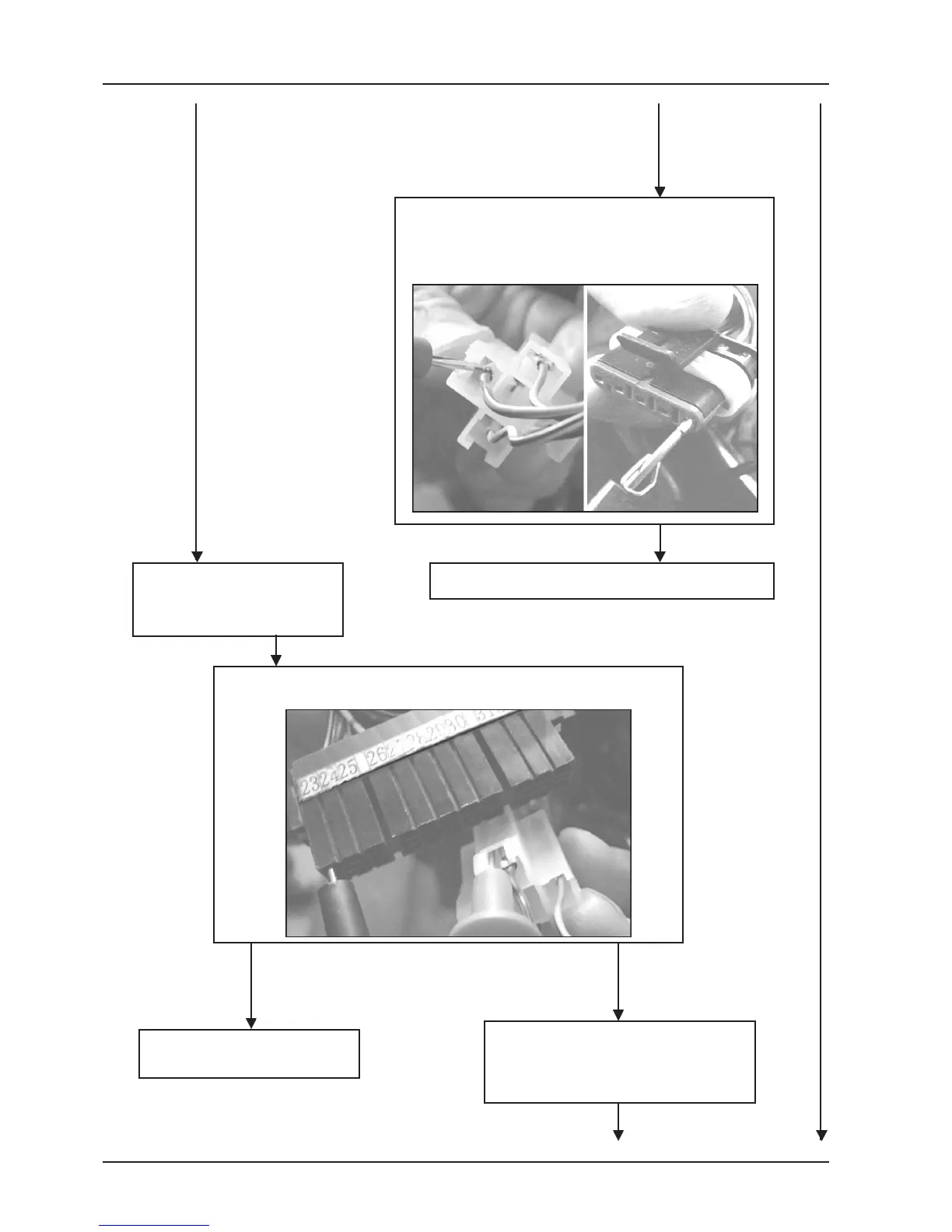

Check efficiency of the pump command electromagnetic
switch. Check continuity of the harness between electro-
magnetic switch and pump.
87 (electromagnetic switch) - green - black (pump) = continuity
Disconnect the connectors to:
fuel pump, HV coil, injector
Reset and repeat controls from the beginning.
NO
YES
Check the earthing isolation of the harness
87 (pump electromagnetic switch) - 23 = isolation (> 1MΩ)
Reset harness isolation and
replace the fuse.
Check the earthing isolation of the HV
coil primary and the injector coil.
See related sections. (page 9-68).
NO
YES
YES
To Next Page
