5 - 17

5

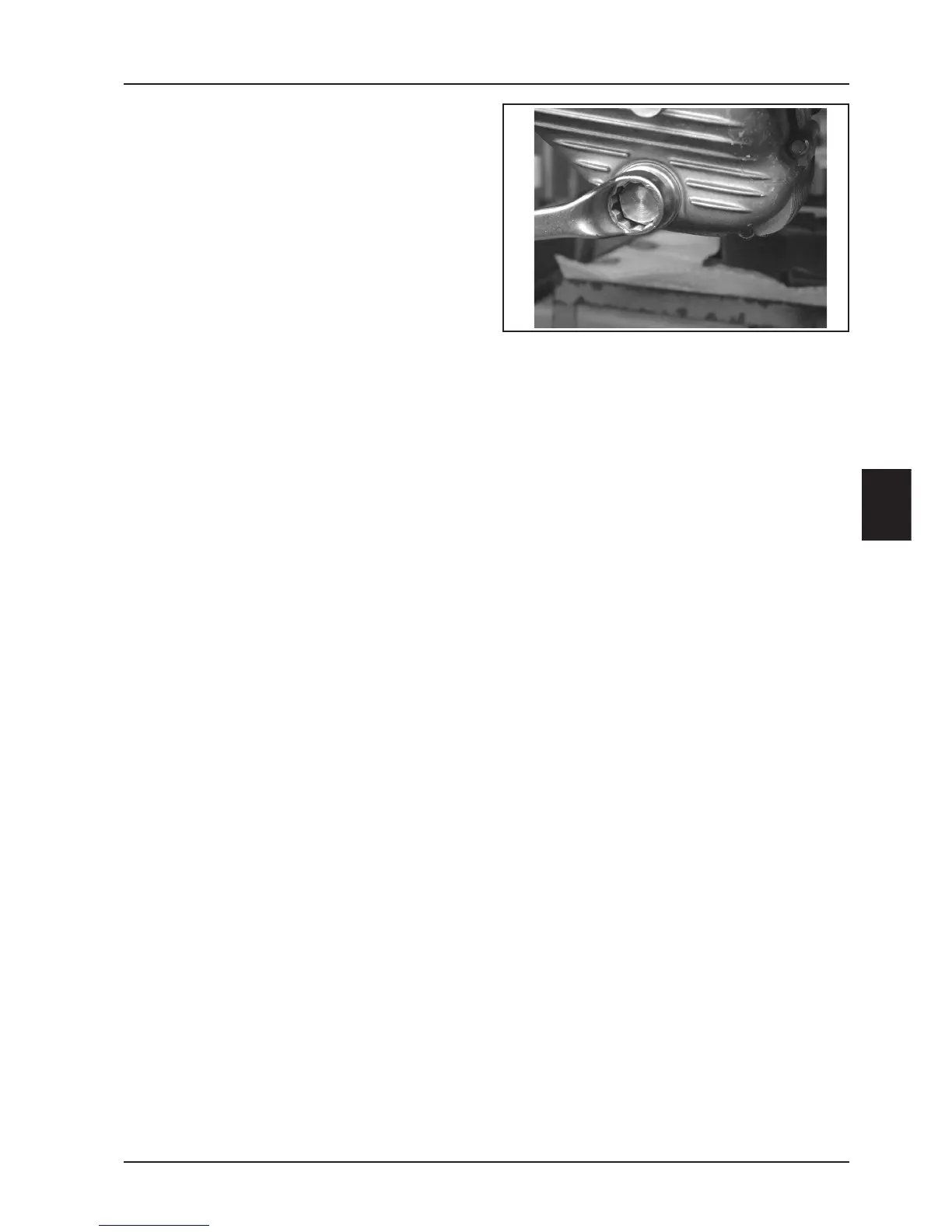

- Reassemble the prefilter and the engine oil drain

plug. Tighten it to the prescribed torque.

- Refill the engine with oil of the recommended type.

Tightening torque:

Oil drain plug: 24 - 30 N·m

Recommended oil: Selenia HI Scooter 4 Tech 5W/40

05_086
