FUSE TABLE
Fuse no. 1 Position on fuse holder: 1
Rating: 15A
Protected circuits: Radiator
electric fan - Battery recharging
circuit - Vehicle's lights - Ignition -
Electrical lines protected by fuses
4, 5, 6, 7, and 8

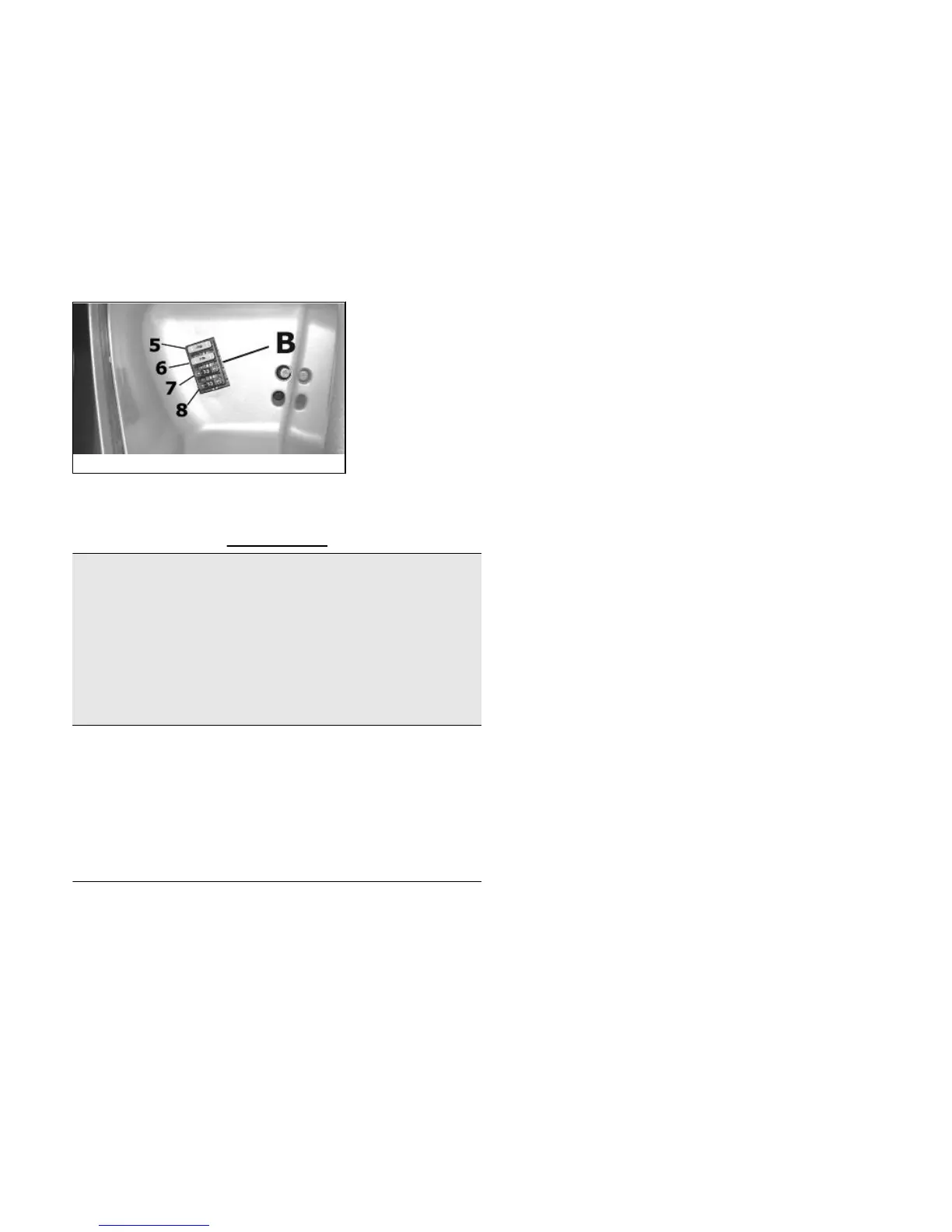

Location: Right hand-side bay
Fuse no. 2 Position on fuse holder: 2
Rating: 15A
Protected circuits: 12V-180W
Socket for electrical devices -
Helmet compartment courtesy light
- Electrical seat opening
Location: Glove-box
