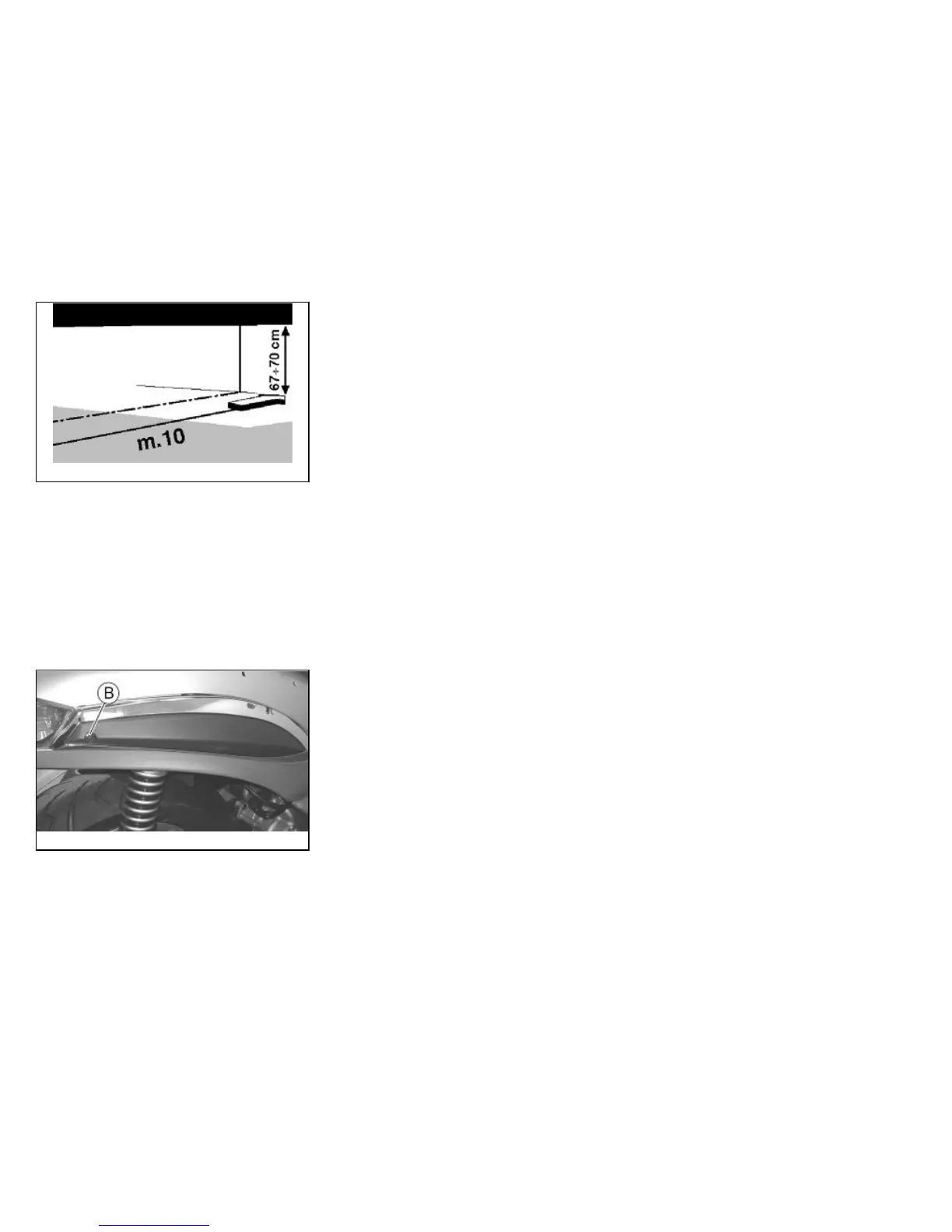

Headlight adjustment (03_25)
Proceed as follows:
1. Place the scooter in riding condition, unloaded, with the tyres correctly inflated, on
a flat piece of ground at a distance of 10 m from a white screen situated in a shaded
area, making sure that the scooter is perpendicular to the screen;
2. Draw a horizontal line on the screen at a height of 67 to 70 cm from the ground;
3. Switch on the headlight at low beam and check that the horizontal borderline of the
projected light beam between the dark and light area is not higher than the horizontal
line drawn on the screen;
4. If this is not the case, regulate the headlight by turning screw "A".
Front direction indicators
To replace a burnt out bulb remove the right and left screw «F».
03_26
Rear optical unit (03_26, 03_27, 03_28)
To remove the rear light assembly, proceed as follows:
1. Remove the two side mouldings.
2. Remove the plastic cover from the lower side of the luggage rack by removing the
two screws of the housing "D".
3. Remove screw "C"
4. Remove screws "B" and pull out the rear light assembly.
5. If necessary, replace the blown bulb.
