PIAGGIO Beverly 125 - Instrument Panel and Key Switch Functions

01_04

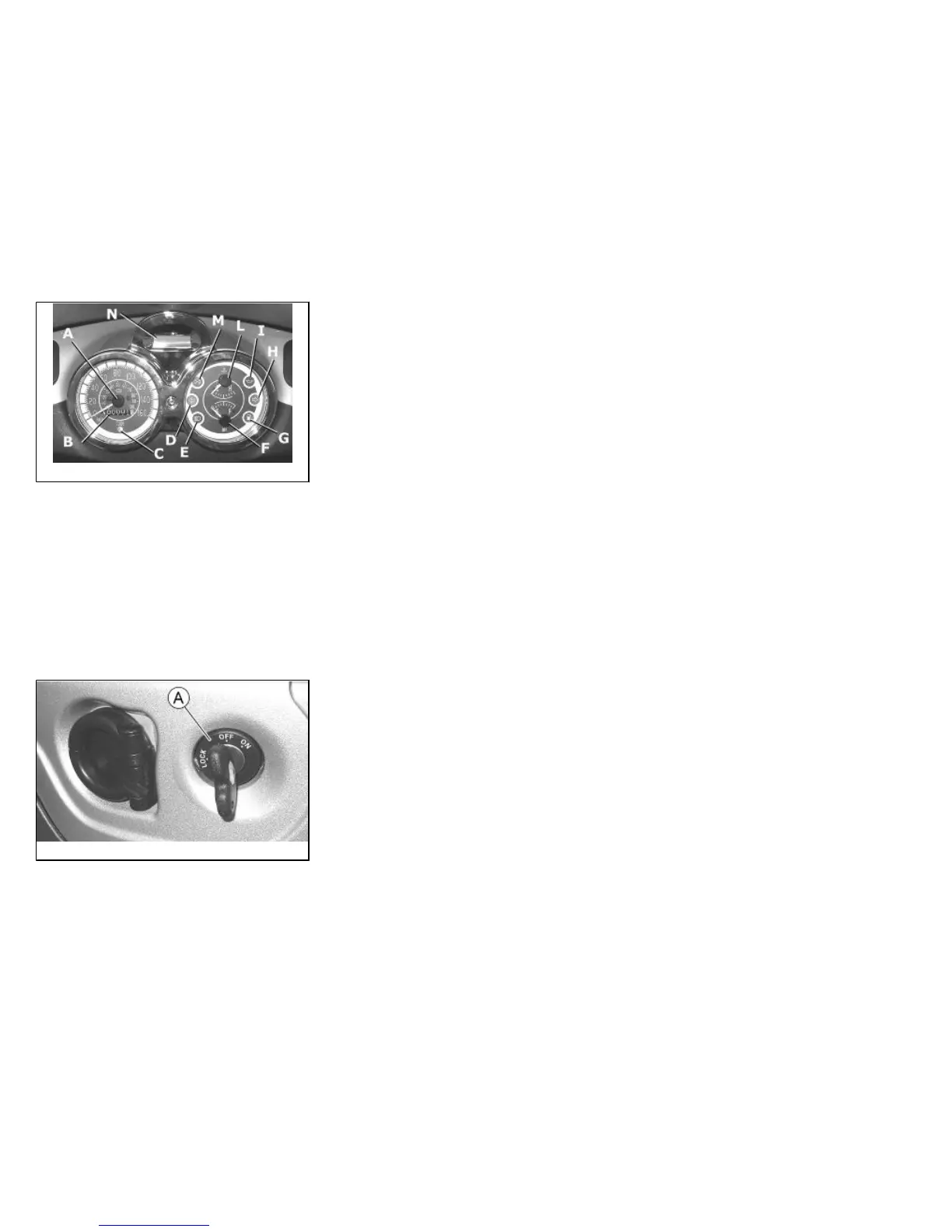

Analogue instrument panel (01_04)
A = Speedometer
B = Odometer
C = Immobilizer LED
D = LH turn signal warning light
E = High-beam warning light
F = Fuel level gauge
G = Low fuel warning light
H = RH turn signal warning light
I = Low oil pressure warning light
L = Coolant temperature gauge
M = Engine cut-off warning light
N = Digital clock
01_05
Key switch (01_05)
LOCK= Ignition barred, key can be removed, mechanical antitheft device activated.
OFF= Ignition barred, key can be removed, mechanical antitheft device deactivated.
ON= Prestarting position, key cannot be removed, mechanical antitheft device deac-
tivated.
