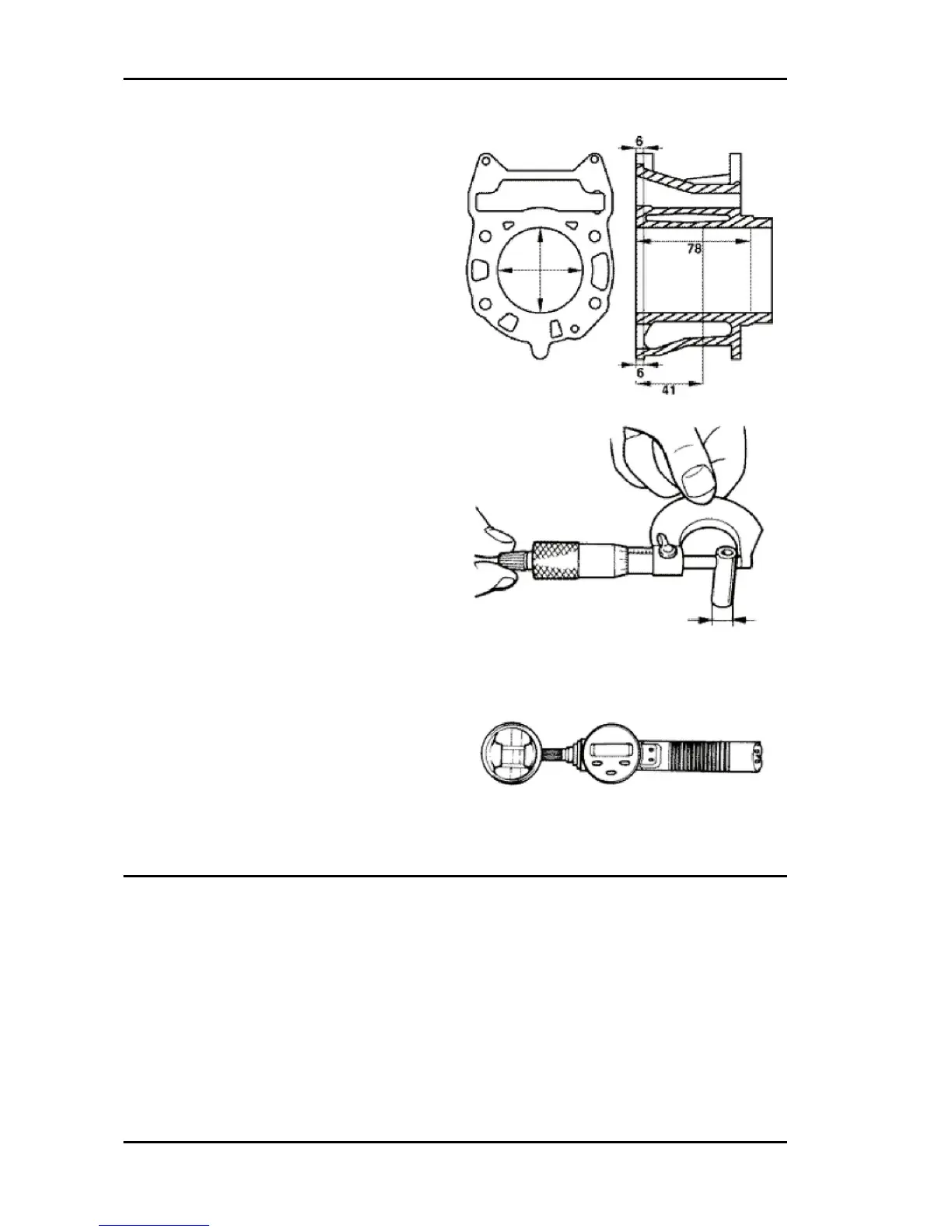

THE PIN HOUSINGS HAVE 2 LUBRICATION CHANNELS.
FOR THIS REASON MEASUREMENT OF THE DIAMETER
MUST BE CARRIED OUT ACCORDING TO THE AXIS OF
THE PISTON.
Caratteristiche tecniche
Diametro spinotto: Diametro standard : 200
68,990 ÷ 69,018
Pin diameter Standard diameter: 125 cc
56.997 ÷ 57.025
Diametro spinotto: Pistone : 200
68,933 ÷ 68,961
piston diameter
56.945 ÷ 56.973 mm
Pin diameter: Standard clearance
0.015 ÷ 0.029 mm
Pin diameter Standard diameter
14.996 - 15.000 mm
Wrist pin seat on the piston: Standard diameter
15.001 ÷ 15.006 mm
Diameter of the wrist pin seat on the piston:
Standard clearance
0.001 ÷ 0.010 mm
Engine Carnaby 125 - 200
ENG - 138
