PIAGGIO Carnaby 200 - Devices and Accessories

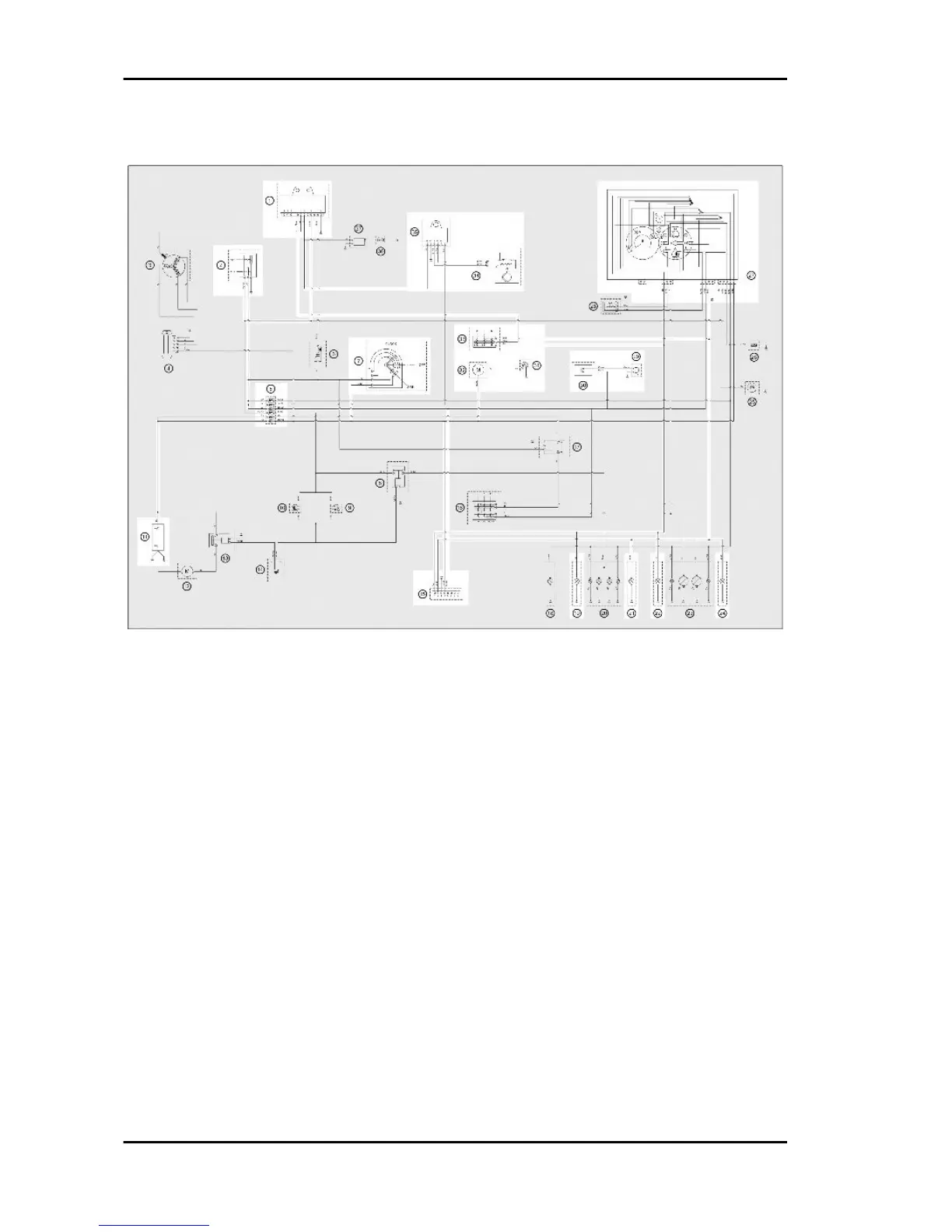

Devices and accessories
KEY
1. Electronic ignition device
2. Engine stop switch
5. Fuse unit
7. Key switch
11. Battery
15. Wiring for antitheft device
19. Rear left turn indicator light
21. Rear right turn indicator light
22. Front left turn indicator light
24. Front right turn indicator light
27. Instrument panel
C. Clock
E. Right arrow warning light
I. Left arrow warning light
29. Horn
30. Horn button
31. Thermoswitch
Electrical system Carnaby 125 - 200
