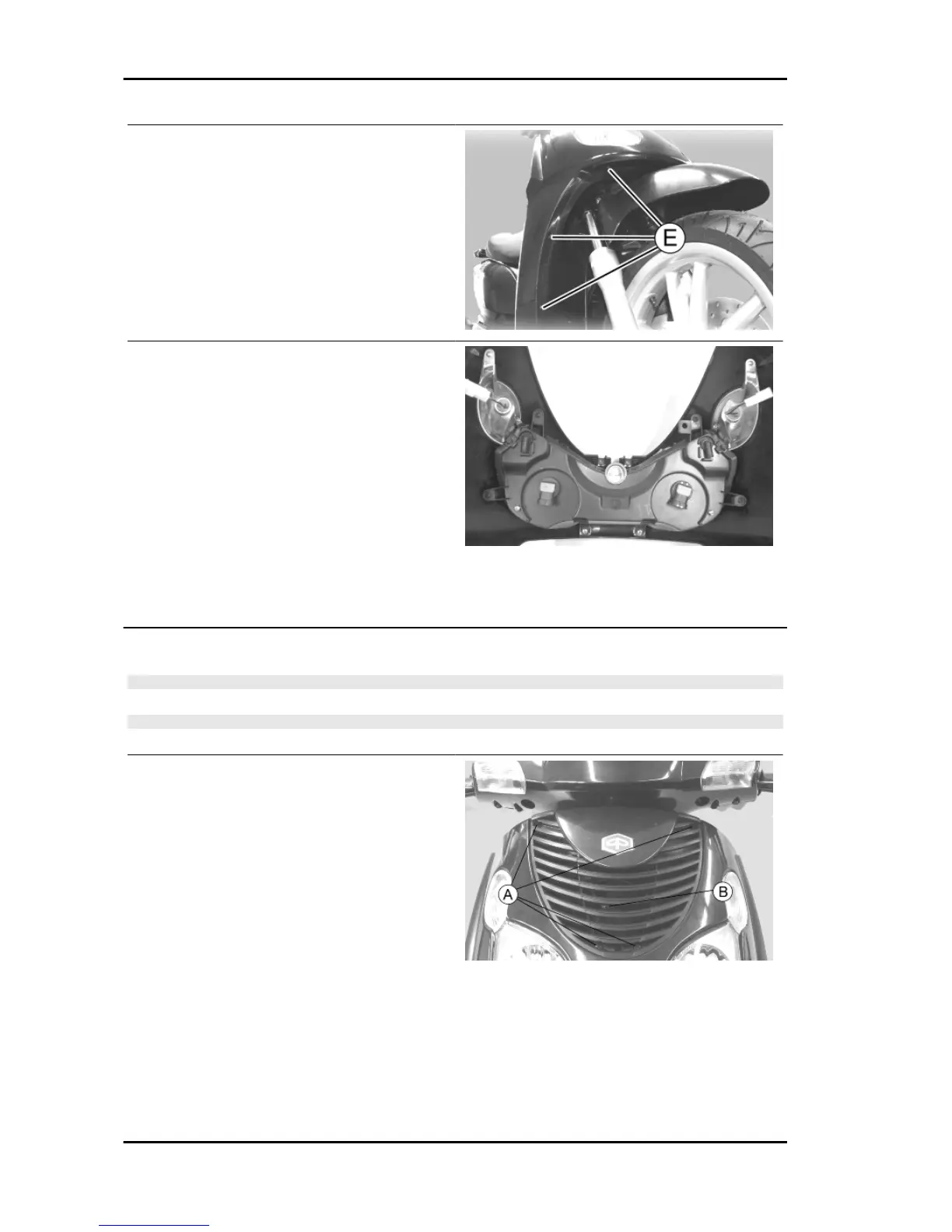

PIAGGIO Carnaby 200 - Legshield

- Operating on both sides of the scooter, undo the
six screws «E».
- Undo the two screws «F» connecting the head-
light assembly to the turn indicators.
- Undo the six screws «G» connecting the headlight assembly to the legshield and remove the headlight
assembly.
Legshield
WARNING
CARRY OUT THESE OPERATIONS WHEN THE ENGINE IS COLD.
WARNING
DETACH THE BATTERY POLES.
- Undo the four screws «A» and remove the radi-
ator cover «B».
