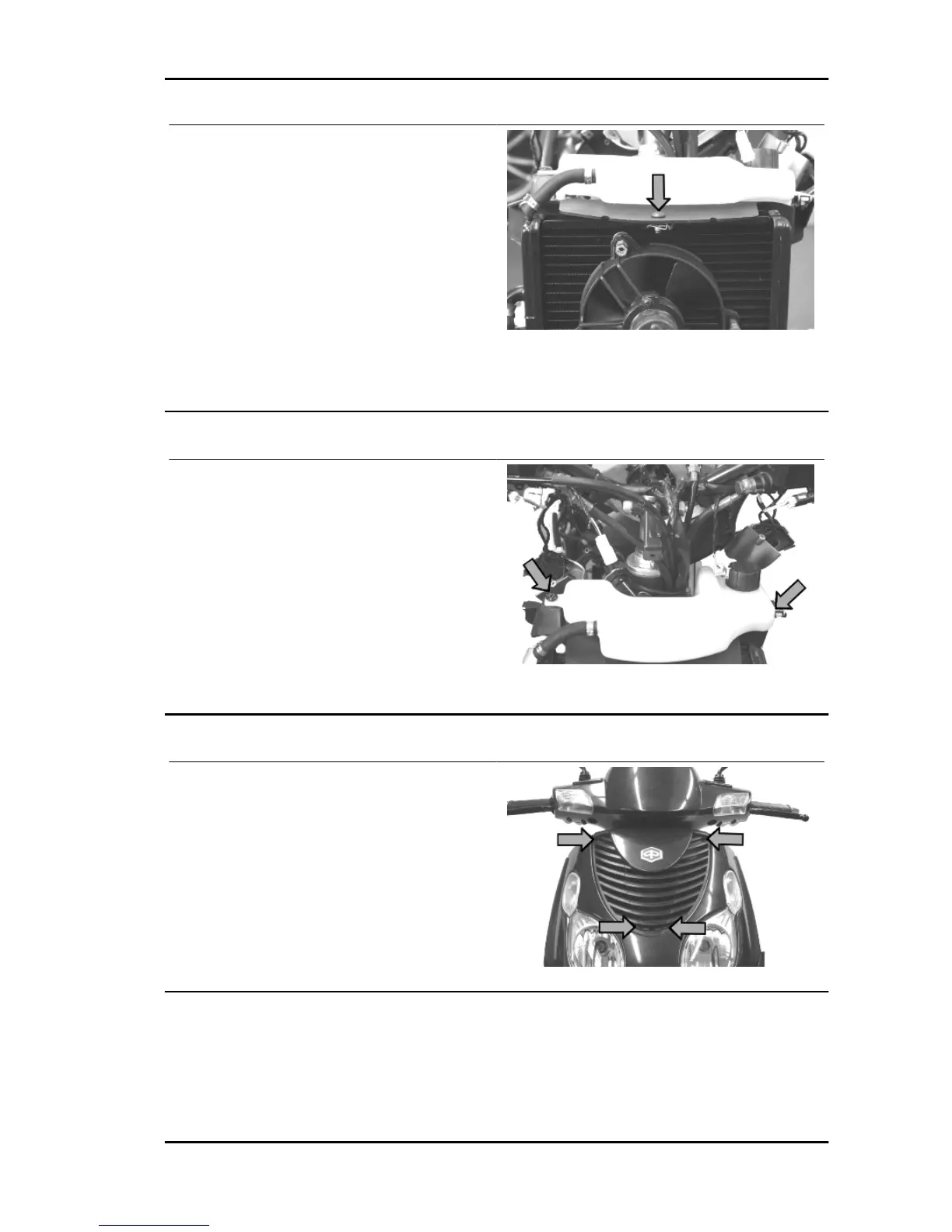

PIAGGIO Carnaby 200 - Expansion Tank; Radiator Cover

- Undo the screw fixing the radiator to the frame.
- Detach the radiator and the electric fan.
- Once refitted, bleed the cooling system.
Expansion tank
- Remove the shield back plate.
- Remove the radiator cover and disconnect the
headlight assembly connectors.
- Remove the legshield.
- Prepare a container to collect the coolant.
- Disconnect the delivery and return hoses of the
expansion tank.
- Undo the two screws and remove the expansion
tank.
Radiator cover
- Undo the four screws indicated.
