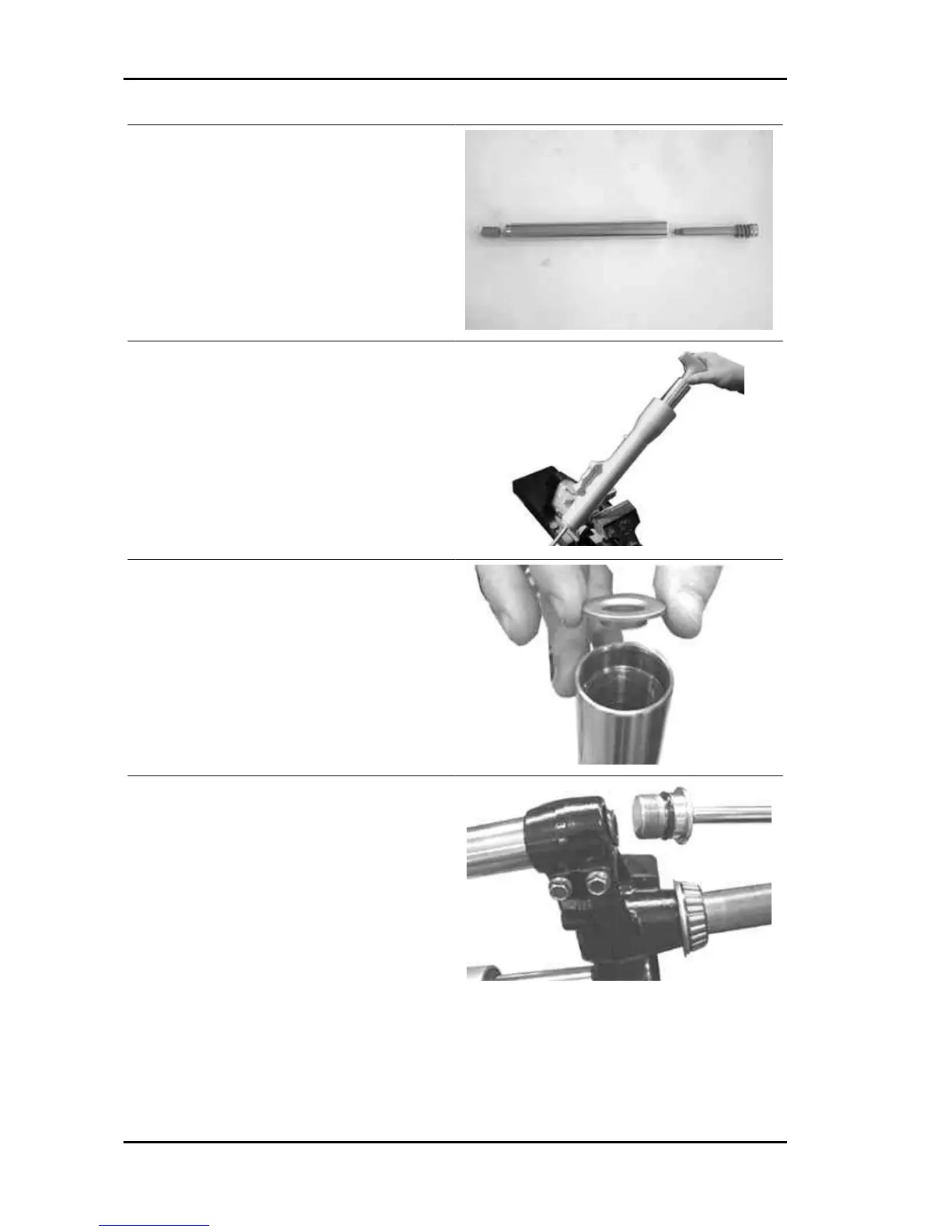

- Insert the contrast spring into the pumping mem-
ber.
- Insert the pumping element inside the stem.
- Insert the pumping element guide bushing at the
lower stem end.
- Insert the stem in the leg being careful not to let
the stem guide bushing come out.
- Inset and screw up the copper washer to the pre-
scribed torque. To prevent the pumping member
from rotating, insert a 12 mm Allen key into the
stem.
- Pour 102 ± 1 cm³ of oil into the stem.
Recommended products
AGIP FORK 7.5 W Fork oil
Grade 7.5 W
- Insert the 21 winding springs, the support plate
with the chamfer facing downwards and then the
15 winding spring.
- Insert the stem into the fork clamp.
- Do up the clamp once to allow the stem closure
upper cap to be tightened.
- Check that the sealing ring on the cap is in good
working order, then tighten the cap on the stem to
the prescribed torque.
