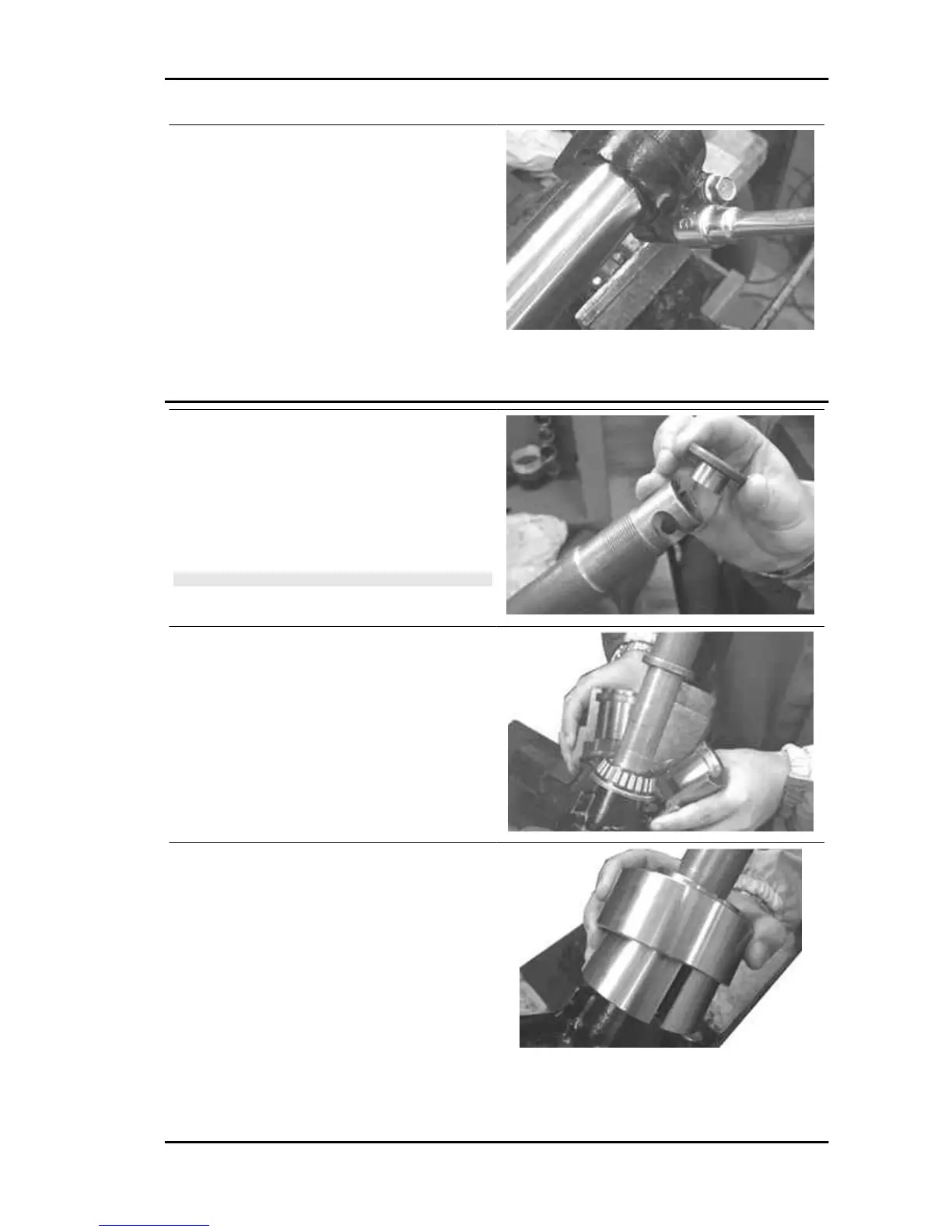

- Loosen the fork clamp screws and ensure the
stem closure cap is fitted properly on the clamp.
- Tighten the clamp screws to the prescribed tor-
que.
Specific tooling
020376Y Adaptor handle
020359Y 42x47-mm adaptor
Locking torques (N*m)
Fork clamp screws 20 ÷ 25 Stem upper cap 15 ÷
30 Lower screw with copper washer 25 - 35
- Check that the roller bearing does not show signs
of wear or pricking.
In case of replacement, proceed as follows:
- Support the fork in a vice.
- Insert the contrast plate in the upper end of the
steering tube
N.B.
ONLY REMOVE THE UPPER BALL BEARING IF YOU
REALLY NEED TO.
- Insert the special tool as shown in the figure.
- Insert the retaining band of the two half-rings.
Carnaby 125 - 200 Suspensions
SUSP - 201
