Top-up
Check coolant level when the engine is cold as in-
dicated in the scheduled maintenance table, fol-
lowing the steps below.
Place the scooter on its centre stand and on flat
ground.

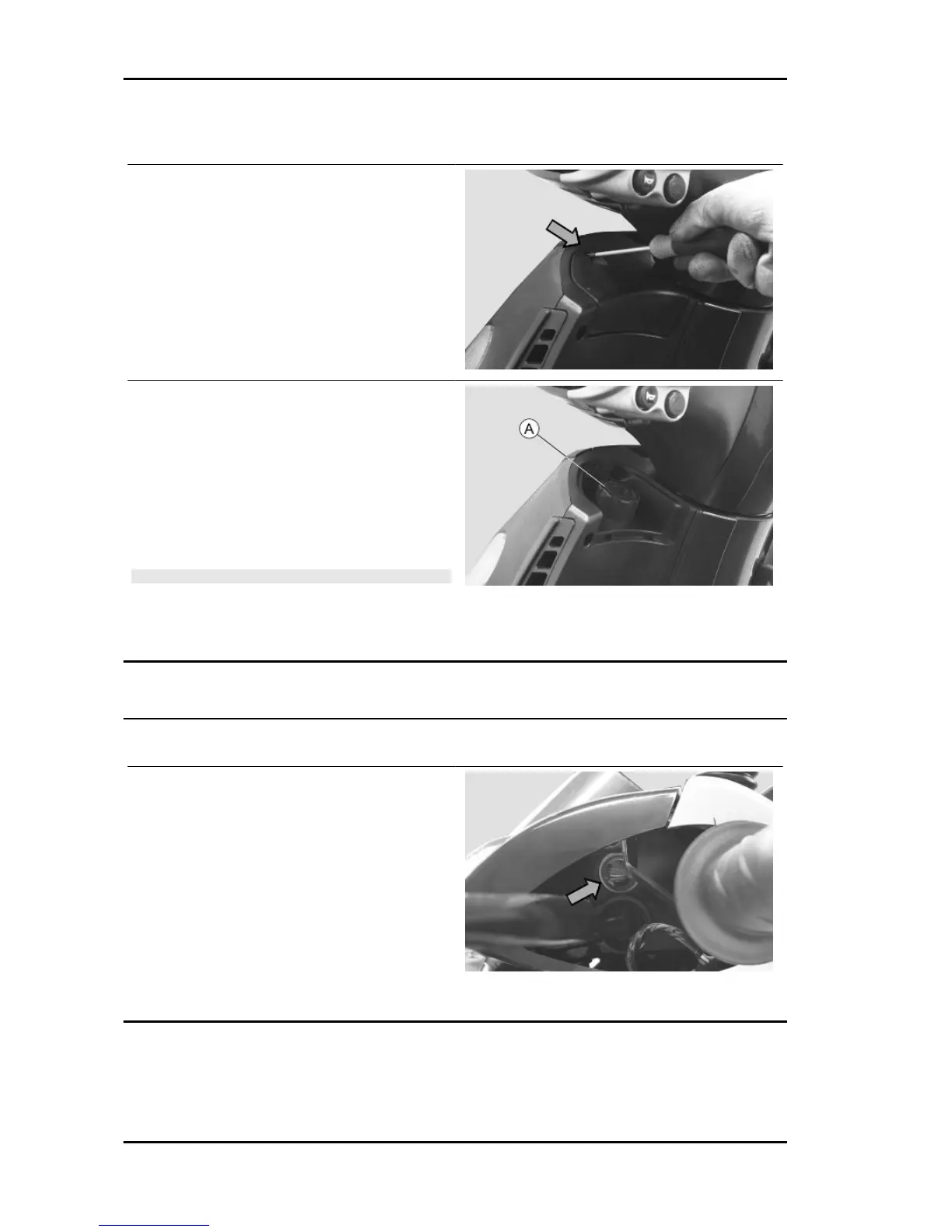

- Undo the screw and remove the expansion tank
cap located on the scooter left side.
- Remove the expansion tank cap «A » and, if
necessary, top-up if the coolant level is near or
below the mark in the expansion tank. Coolant lev-
el must always reach the mark.
-The coolant consists of an ethylene glycol and
corrosion inhibitor based 50% de-ionised water-
antifreeze solution mix.
CAUTION
TO PREVENT THE COOLANT FROM LEAKING OUT OF
THE EXPANSION TANK WHEN THE SCOOTER IS IN USE,
DO NOT EXCEED THE LEVEL INDICATED BY THE INTER-
NAL MARK.
Braking system
Level check
The brake fluid tanks for the front and rear brakes
are located on the pumps under the handlebar
cover. Proceed as follows:
- Bring the scooter onto the centre stand and with
the handlebar centred;
- check the fluid level at the sight glass as shown
in the figure.
A certain lowering of the level is caused by wear
on the pads.
Maintenance Carnaby 125 - 200
MAIN - 52
