32. Electric fan
33. Turn signal switch
34. Electric fuel pump
35. Electric pump control device

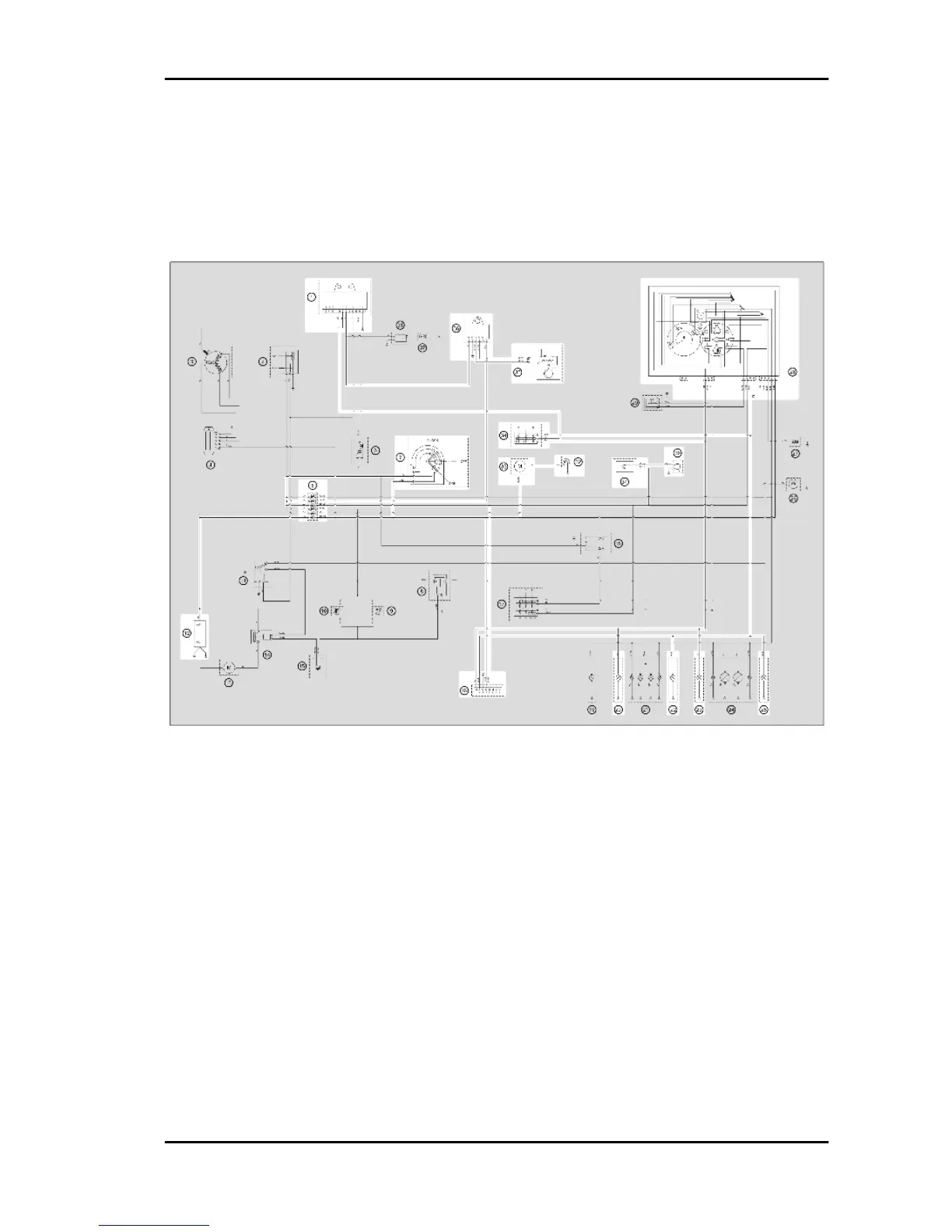

VERSIONE CON TELERUTTORE DI INIBIZIONE AVVIAMENTO
LEGENDA
1. Dispositivo di accensione elettronica
5. Gruppo fusibili
7. Commutatore a chiave
12. Batteria
16. Predisposizione antifurto
20. Lampeggiatore posteriore sinistro
22. Lampeggiatore posteriore destro
23. Lampeggiatore anteriore sinistro
25. Lampeggiatore anteriore destro
28. Gruppo strumenti
C. Orologio
E. Spia freccia destra
I. Spia freccia sinistra
30. Clacson
Carnaby 125 - 200 Electrical system
ELE SYS - 81
