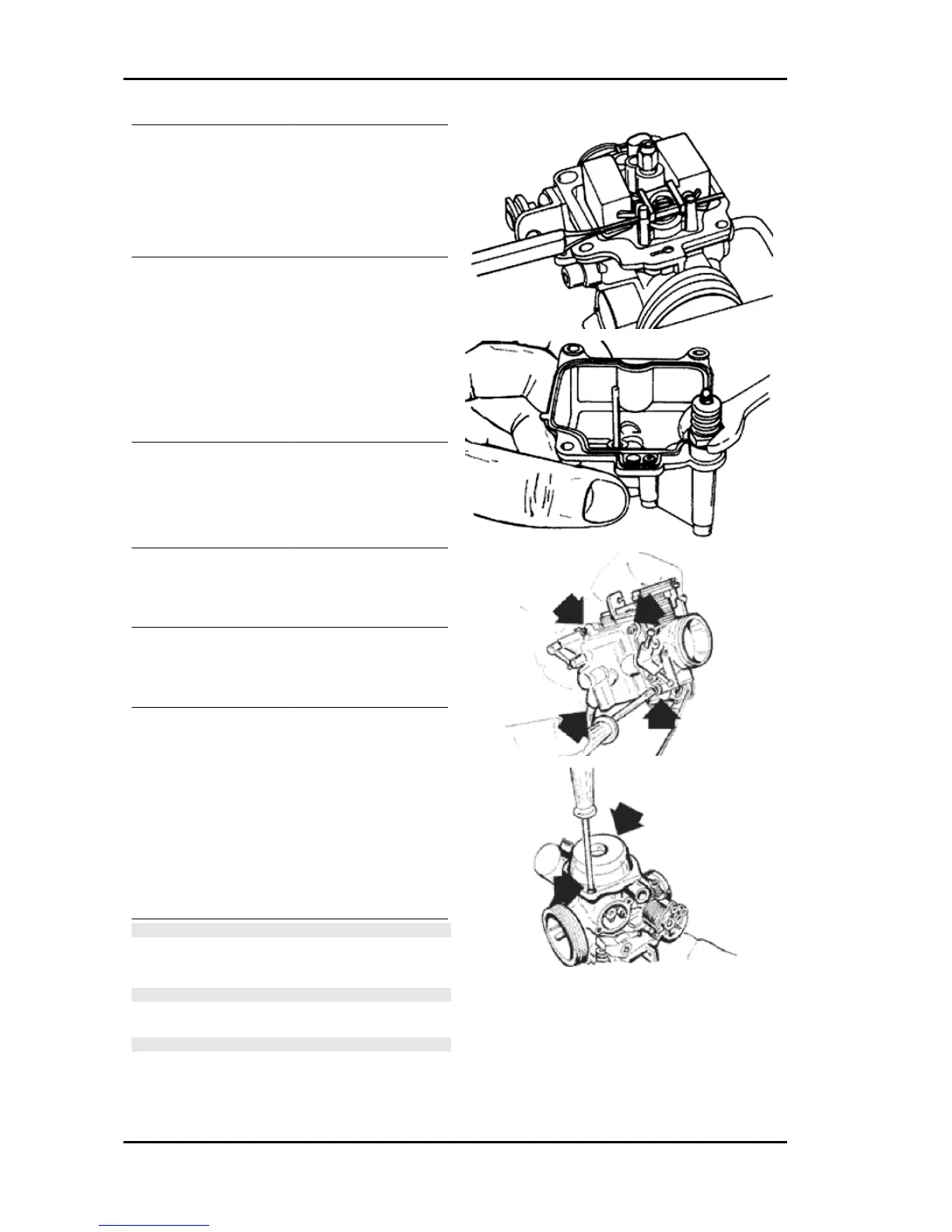

- Remove the accelerating
pump piston with the ring nut,
the hood, the O-Ring and the
spring from the chamber as
shown in the figure.
- Adequately support the car-
burettor and using a pin and
hammer; remove the float pin
operating from the throttle
control side.
- Remove the float and the
plunger.
- Remove the cover of the air
deflector from the carburettor
to the starter nozzle as shown
in the figure.
-Remove the maximum noz-
zle.
-Remove diffuser.
- Remove the sprayer.
-Remove the minimum noz-
zle.
- Remove the minimum flow
screw with the O-ring, the
washer and the spring.
- For the 200 cm³ version on-
ly, remove the two fixing
screws, the cover, the spring
and the diaphragm of the cut-
off device.
N.B.
This last operation is necessary so as no to empty the cooling
system. For the 200 cm³ version only, disconnect the low-pres-
sure supply pipe to the cut-off device.
WARNING
- While removing the cover, pay attention not to release the
spring accidentally.
N.B.
This operation is necessary to avoid losing sprayer parts when
cleaning the carburettor body. If the sprayer is forced in its
housing, do not attempt to remove it as this will only damage
it.
Engine Carnaby 125 - 200
ENG - 174
