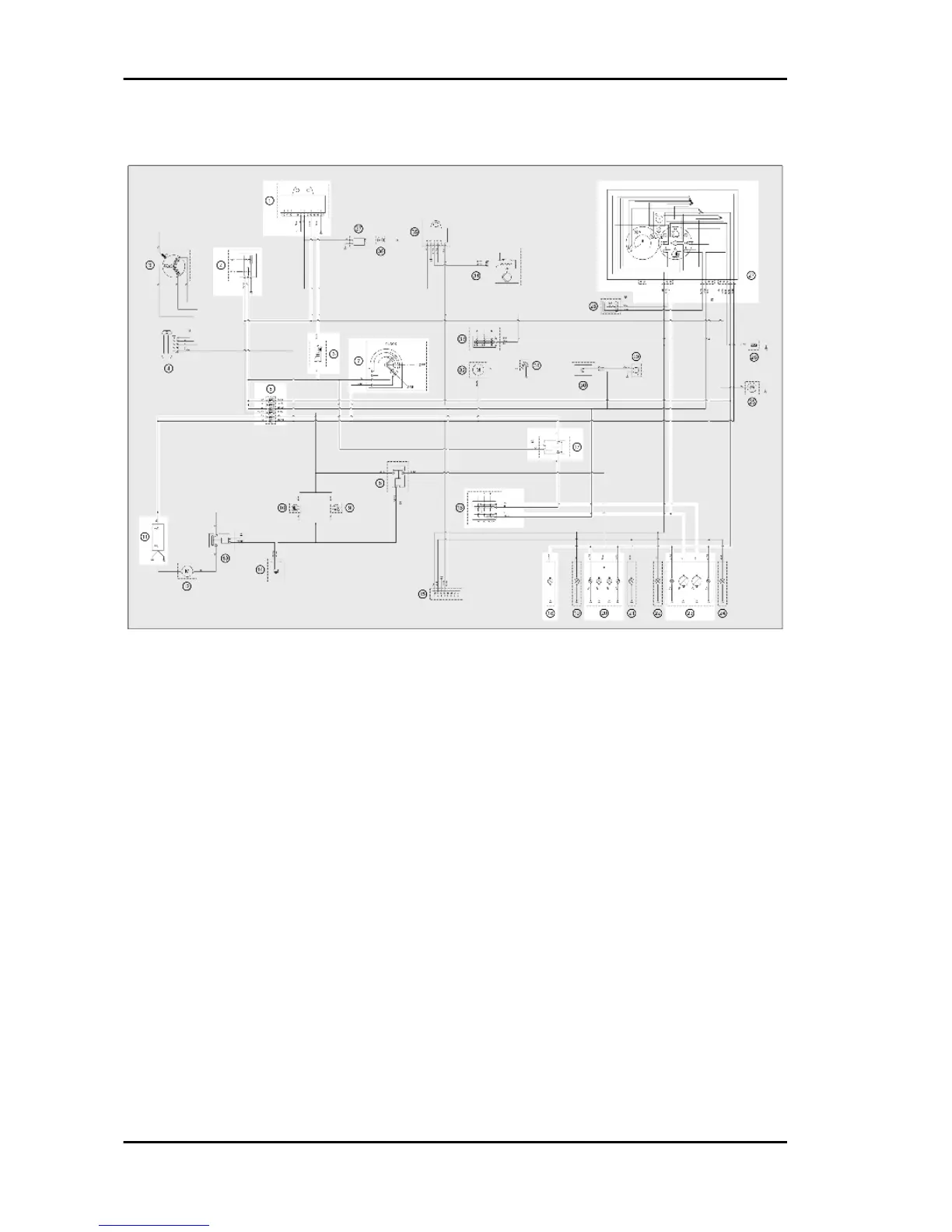

Headlights and automatic starter section
KEY
1. Electronic ignition device
2. Engine stop switch
5. Fuse unit
6. Automatic starter
7. Key switch
11. Battery
16. Light switch
17. Headlight remote control
18. Licence plate lamp
20. Rear light
A. Tail light bulbs
23. Headlight
A. Tail light bulbs
B. High-beam light bulb
C. Low-beam light bulb
27. Instrument panel
A. Instrument panel bulbs
Electrical system Carnaby 125 - 200
ELE SYS - 74
