OPERATING AND INSTALLATION MANUAL HEAT PUMP COMBI UNIT PKOM4 PAGE 36
USER
GENERALSPECIALIST PERSONNEL
14.5 SOLAR THERMAL ENERGY The heating battery of the hot water tank
has a surface area of 0.8m² and allows
for the connection of a solar system and
therefore of a further regenerative energy
source. The collector field should be dimen-
sioned appropriately to ensure perfect
operation. The solar control is already inte-
grated into the heat pump combi unit. The
collector sensor and the solar pump are
connected directly to the main board. The
pump is controlled via a 0-10 V signal.
In the [settings] > [additional functions] the
solar circuit must be additionally activated.

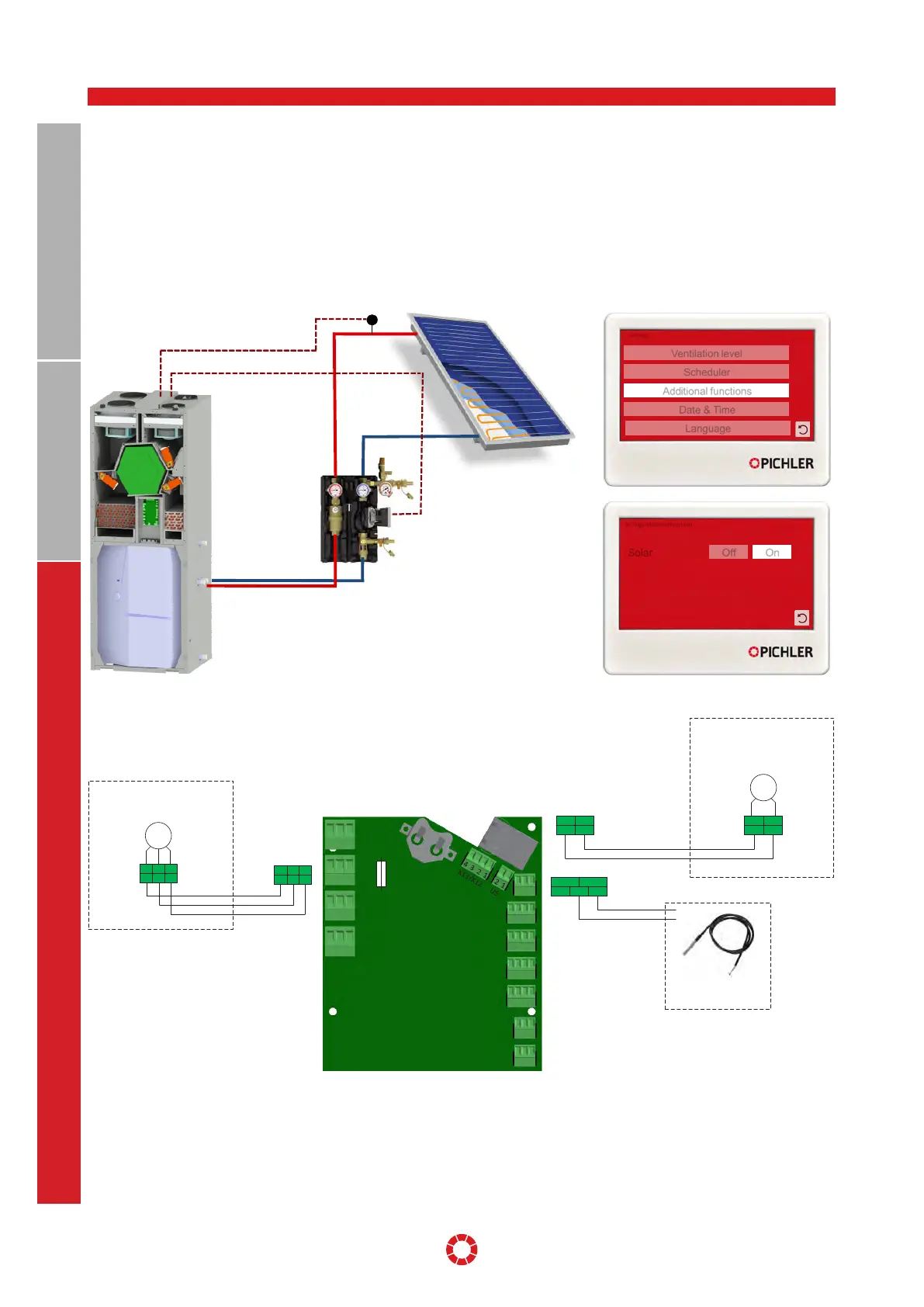

Illustration: Assembly situation
Illustration: Configuration of operating unit
Settings additional functions
Solar
On Off
Settings
Scheduler
Ventilation level
Additional functions
Date & Time
Language
F3
F4
F6 F1
F5
F2
T2AH230V
T10AH230V
T2AH230V
T8AH230V
T500mAH230V
T500mAH230V
M3
M2
M1
M4
S2
S1
E1/T40
H2
H3
H1
K6
K5
K4
3 2 1
3 2 1
3 2 1
3 2 1
4 3 2 1
2 1
T9
3 2 1
3 2 1
3 2 1
3 2 1
4 3 2 1
4 3 2 1
4 3 2 1
4 3 2 1
3
1
K5(230V)
PE
N L
2
3
1
PE
N L
2
M
Solarpumpe
Solar pump
T9
2
3
1
NTC PT1000
PT1000
U5
GND 0-10V
1
2
0-10V GND
M
Solarpumpe
Solar pump
Illustration: Electrical connection of main board
