Pichler PKOM4 - Inspection of the Cooling Circuit

OPERATING AND INSTALLATION MANUAL HEAT PUMP COMBI UNIT PKOM4 PAGE 42
USER
GENERALSPECIALIST PERSONNEL
15.5 CHECK AND CLEANING
CONDENSATE DRAINS
The condensate drainage pipes and sys-
tems must operate perfectly to ensure
proper operation of the plant. Check the
functioning at regular intervals.
Remove any deposits or blockages in the
discharge pipe and siphon.
The condensate drainage pipes are cleaned
by rinsing with lukewarm water.

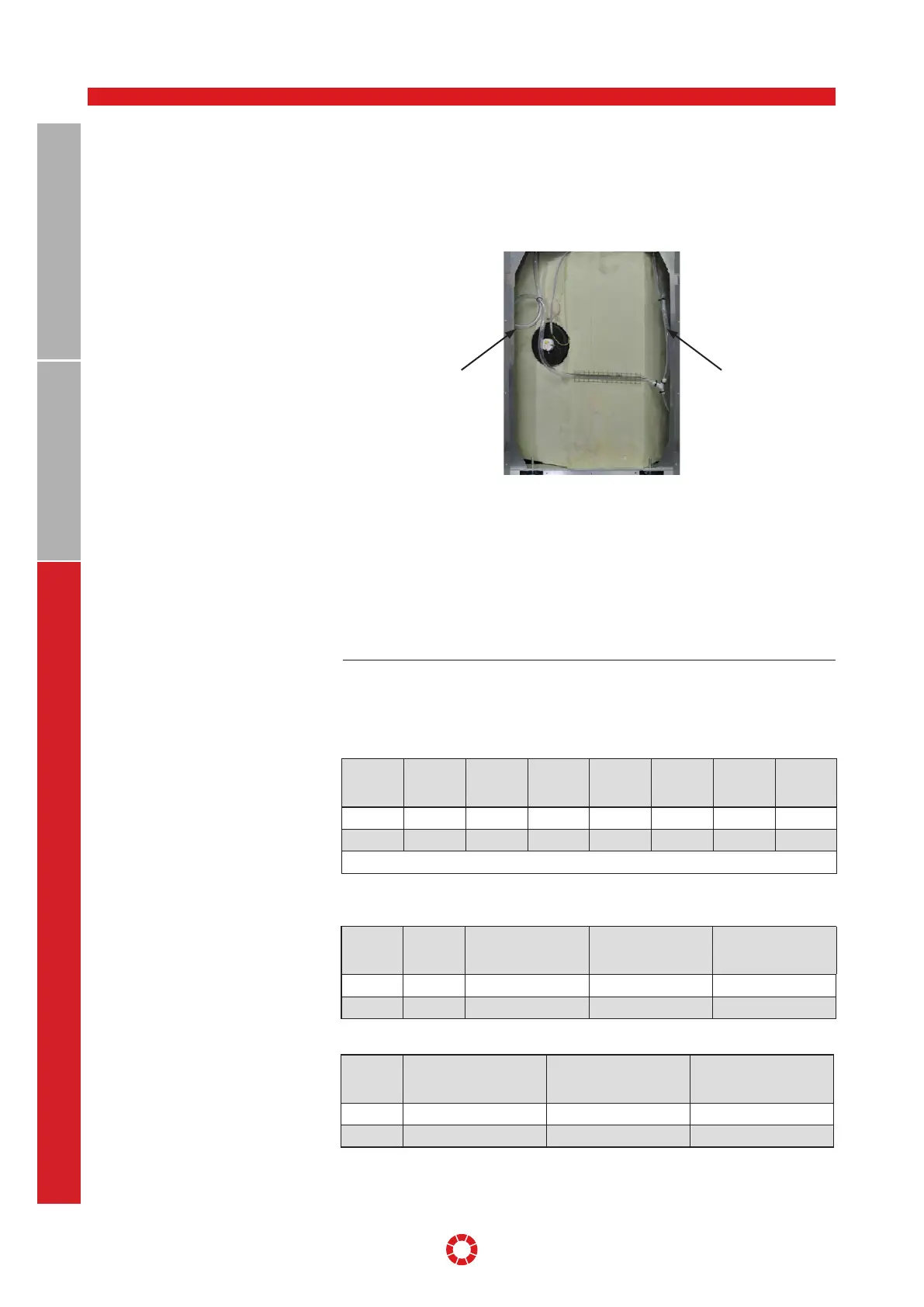

Condensate drainage
Exhaust air
Condensate drainage
Supply air
A functional test of the condensate drain-
age system must be conducted after com-
pletion of cleaning. Fill the condensate tray
with sucient water to do this. Make sure
that the water in the tray flows safely into
the drain via the condensate drainage pipe.
Ensure that the system is watertight.
Fill the odour trap (siphon) with water
before switching the unit back on to prevent
unpleasant smells and leaks.
15.6
INSPECTION OF THE COOLING
CIRCUIT
Refrigerant circulation of the heat pumps is
basically maintenance-free. Certified tech-
nical sta should, however, regularly check
proper functionality of the apparatus in the
course of inspections.
Illustration: PKOM
4
classic condensate drainage
right version
15.6.1 In compliance with the refrigera-
tion plant directive and Directive
(EU) No. 517/2014
Heat
pump
circuit
Refriger-
ant
Filling
weight
[kg]
GWP
CO

equivalent
[t]
Heat
output
[kW]
to/tk [°C] PS [bar]
1)
No. 1 R134a 1.0 1430 1.43 1.3 -5 / 35 26
No. 2 R134a 1.0 1430 1.43 1.3 -5 / 35 26
In compliance with Directive (EU) 517/2014, the device is hermetically tight
1)
PS [bar]: highest operating pressure
15.6.2 In compliance with Pressure
Equipment Control Order DGÜW-V
Heat
pump
circuit
Fluid
group
Greatest pressure litre
product in the device
Hazard potential Company audit by
No. 1 2 18.2 NP (low) Qualified person
No. 2 2 23.4 NP (low) Qualified person
15.6.3 In compliance with Directive (EC)
No. 1005/2009 and Directive (EU)
No. 517/2014
Heat
pump
circuit
Contains fluorinated
greenhouse gases record-
ed by the Kyoto protocol
Is a suitable leakage
detection system available
The device has to be
checked for tightness at
regular intervals
No. 1 Yes No Not applicable
1)
No. 2 Yes No Not applicable
1)
1)
See page 40
