Pinion Smart.Shift - Page 30

30
The Smart.Shift box is fixed to the gearbox by means of three
M4 cylinder head screws.
IMPORTANT
It is imperative that the tightening torque of the screws is
adhered to.
Otherwise, leakage, poor function, increased wear, gearbox
damage and complete failure of the Smart.Shift box and
gearbox may occur.
→ Maintain a torque of 2 Nm when mounting the
Smart.Shift box.
→ Mount the screws dry (i.e. not greased).

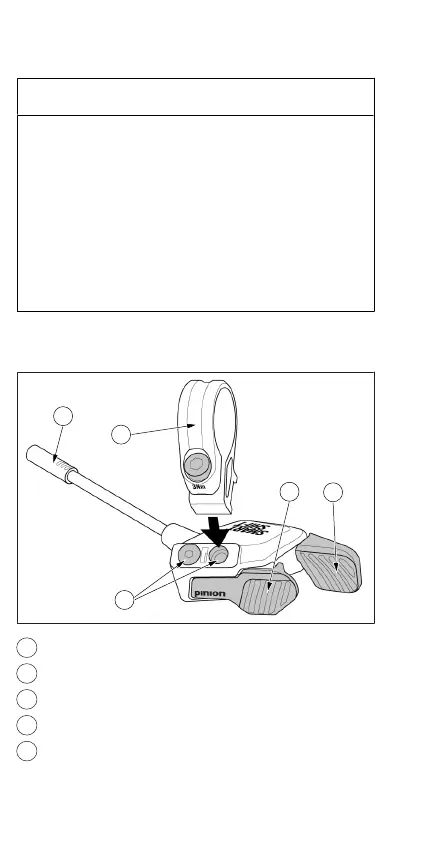

E-TRIGGER TE1
1
2
3
4
5
Fig.4
1
Front shift lever
2
Rear shift lever
3
Screw-on positions and blind screw
4
Trigger clamp with screw
5
Plug
