32
Adjustability
To ensure optimal accessibility of the shift levers, for all hand
sizes and preferences, a wide range of adjustment options can
be selected.
● The TE1 should be positioned on the handlebar in such a
way that you do not have to remove your right hand from
the grip to reach both shift levers with your thumb.
● For optimum accessibility, the clamp can be positioned to
the left or right of the brake lever clamp. Fine adjustments
can be made via the two screw-on points on the TE1.
● You can also change the button assignment of the TE1 in
the settings of your e-bike or in the app.

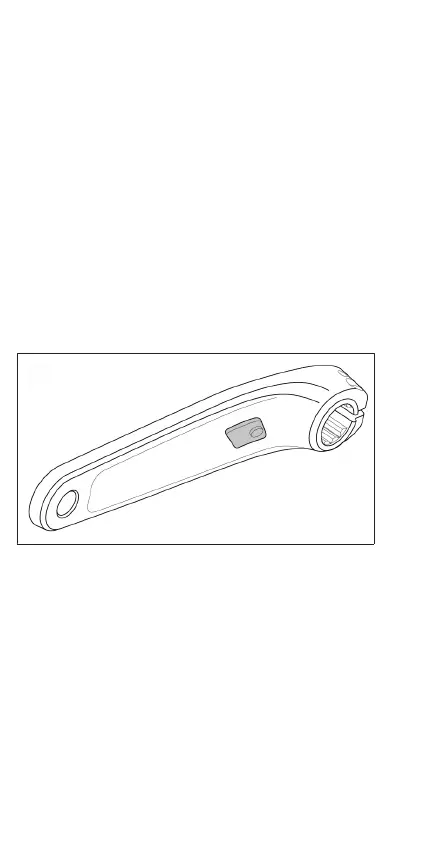

CRANKS
Fig.5
Shifting with Pinion Smart.Shift is coordinated with the
pedalling frequency and position. For this purpose, the left
crank arm is equipped with a sensor magnet on the inside. The
use of other standard Pinion crank sets is not possible or
permitted.
