140
KRP-500P
1
2 3 4
A
B
C
D
E
F
1
2 3 4
9. EXPLODED VIEWS AND PARTS LIST

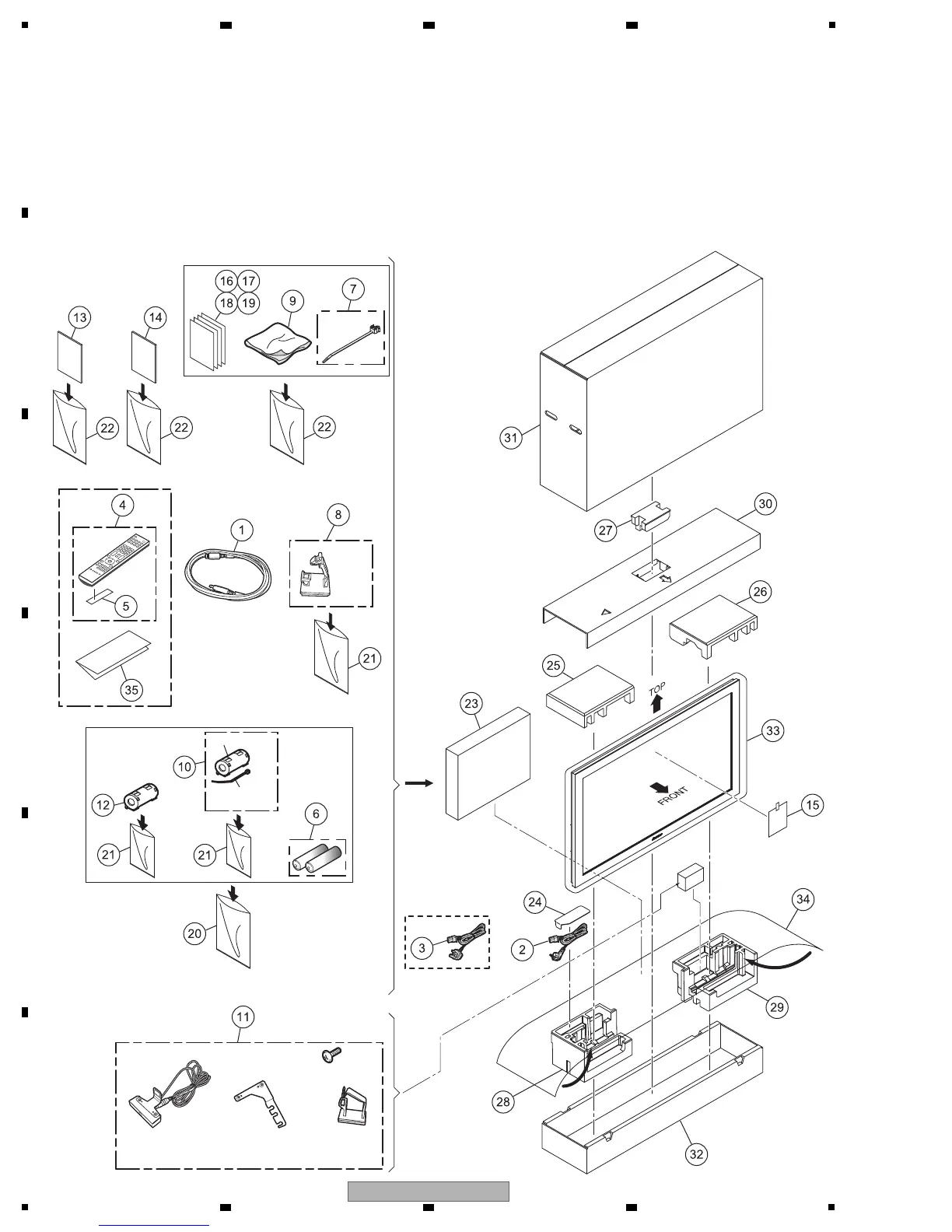

9.1 PACKING SECTION (KRP-500P/WYSIXK5)
NOTES:
-
Parts marked by “NSP” are generally unavailable because they are not in our Master Spare Parts List.
-
The > mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
-
Screws adjacent to b mark on product are used for disassembly.
-
For the applying amount of lubricants or glue, follow the instructions in this manual.
(In the case of no amount instructions, apply as you think it appropriate.)
×4
×2
×2
Cable clamps
Ferrite core
Cable tie
(for ferrite core)
Colour sensor Colour sensor bracket
(when atattched to the top
right of the rear panel)
Cable guide
Screw (M5 x 8 mm)
UK model Only
or
To Next Page
