Pioneer PDP-425CMX

185
Integrator Mode
23) MULTISCREEN Setting
This function divides the screen into two areas when the remote control’s SPLIT button is pressed.
Factory setting: S BY S SIZE.................. NORMAL
S BY S LAYOUT ........... MODE1
PIP SIZE ....................... 2
TRANSLUCENT PIP ..... OFF
BANNER PIP ................ OFF
BANNER INPUT ........... INPUT1

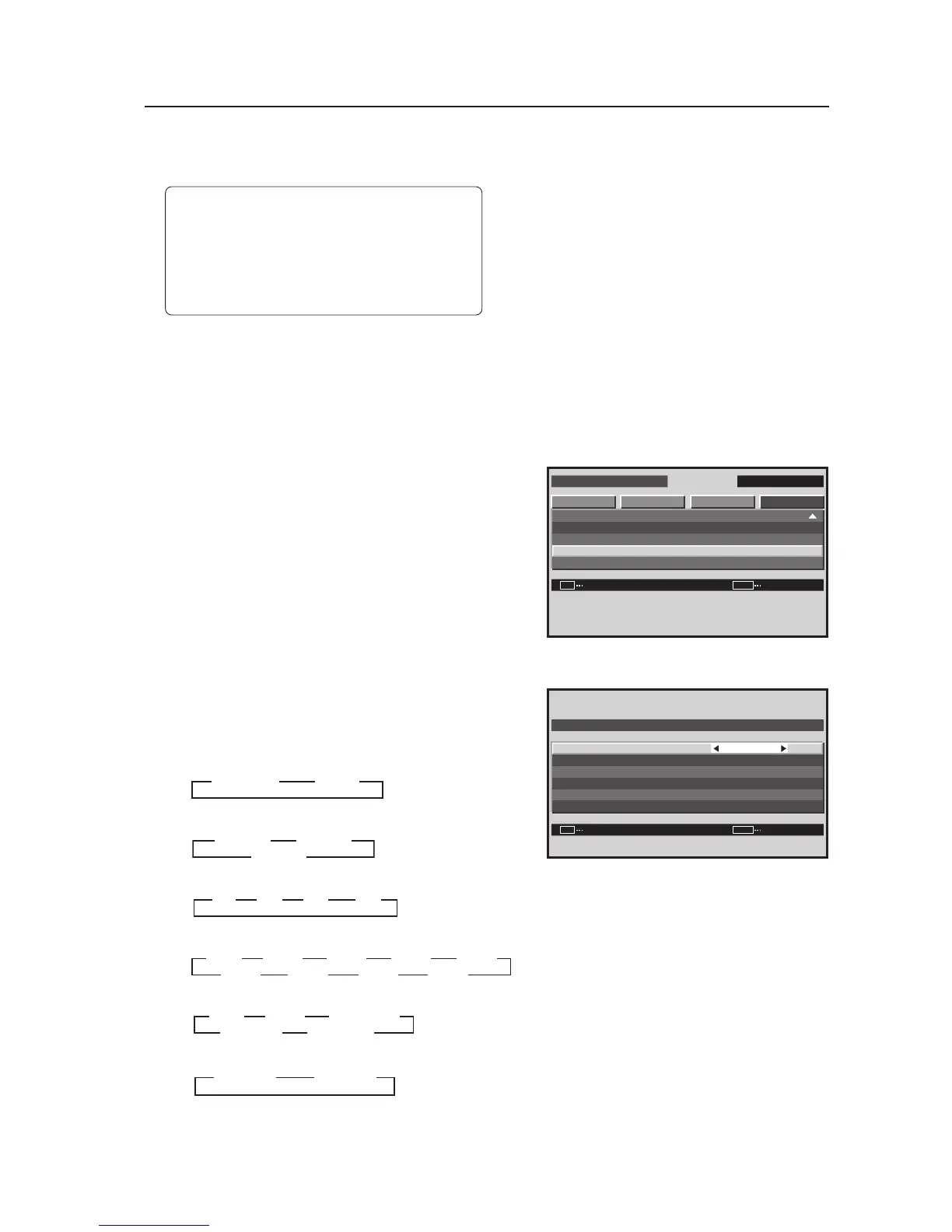

1 Enter the integrator mode.
(Refer to section 5.4.1, “About the Integrator Mode” (pg. 154).)
2 Select ‘OPTION’.
3 Place the cursor on ‘MULTISCREEN SET’ then press the
[SET] button.
4 Place the cursor on an item then use the [2/3] buttons
to change the settings.
Each time a [2/3] button is pressed, the setting changes
as shown below.
• S BY S SIZE
• S BY S LAYOUT
• PIP SIZE
• TRANSLUCENT PIP
• BANNER PIP
• BANNER INPUT
Press the [SET] button to return to screen 2.
