Speaker System: PDP-S44-LR
4.10.3 Installation on the Plasma Display
1) Installation procedure
Install the speaker system according to the steps (1)
through (4).
Notes
• The speakers are designed specifically for the left
(L) and right (R) sides of the Plasma Display. When
mounting them on the display, refer to the letters
(“L” and “R”) indicated on the speakers’ hooks.
• This speaker is of an antimagnetic design; however,
depending on its placement such as bringing the
speaker into the vicinity of a monitor other than a
Plasma Display, the speaker may cause irregular
noise or other effects. Should this occur, please move
the speaker away from the monitor.

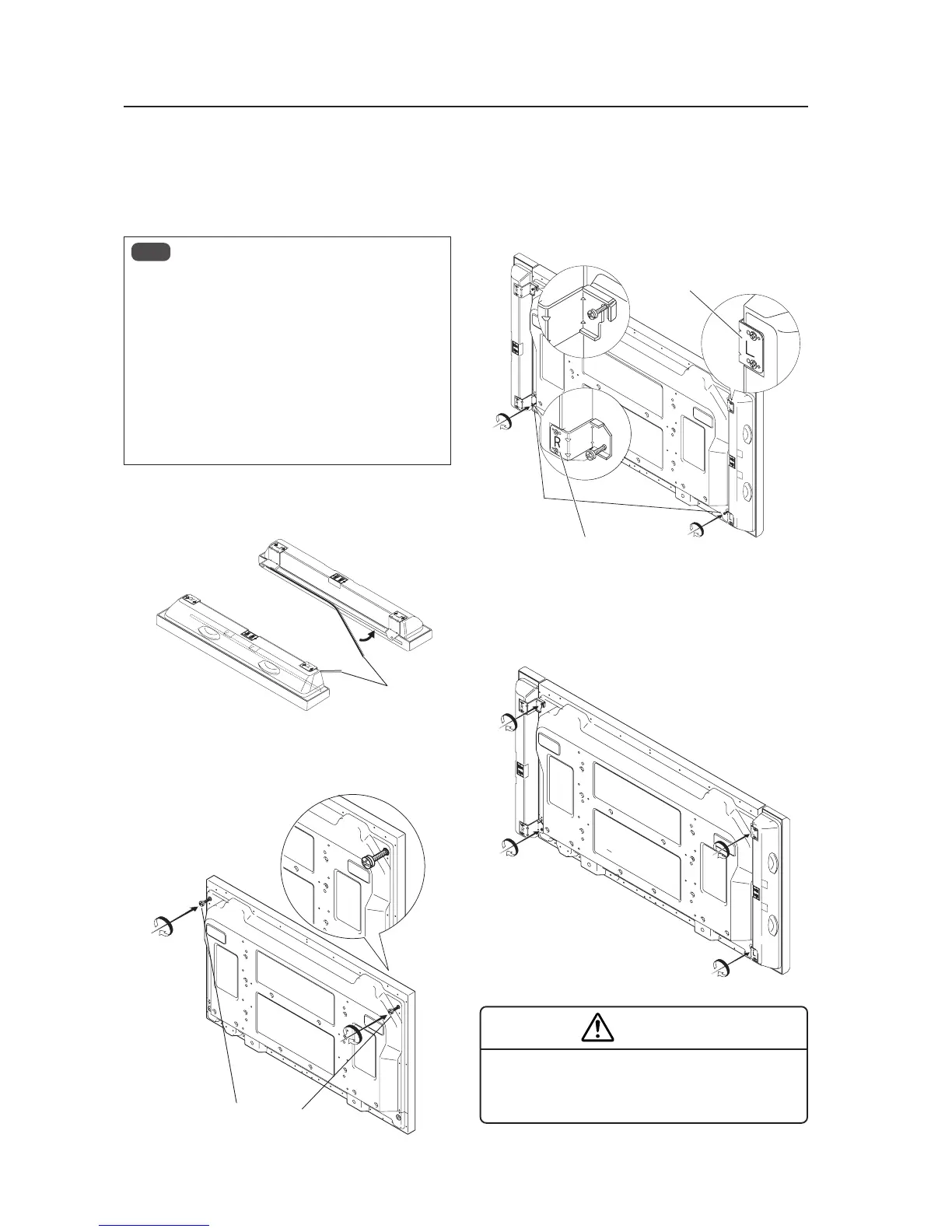

(1) Attach the cushions to the sides of the speakers in the
positions indicated on the diagram.
Cushions
(2) Partially tighten the included screws (M8) in the screw
holes on the top of the display.
Screws (M8)
(3) Slide the hooks on the top of the speakers over the
partially tightened screws. Line up the hook holes on
the bottom of the speakers with the screw holes on
the bottom of the display then partially tighten the
screws.
Screws (M8)
(4) Fully tighten the four screws.
* Push the speaker against the display while tightening
the screw.
WARNING
When the speakers are installed on the display, do not
move the unit by lifting up on the speakers.
The display could fall and cause injury.
