Pioneer PDP-435PG User Manual

PDP-435PE
19
5678
56
7
8
C
D
F
A
B
E

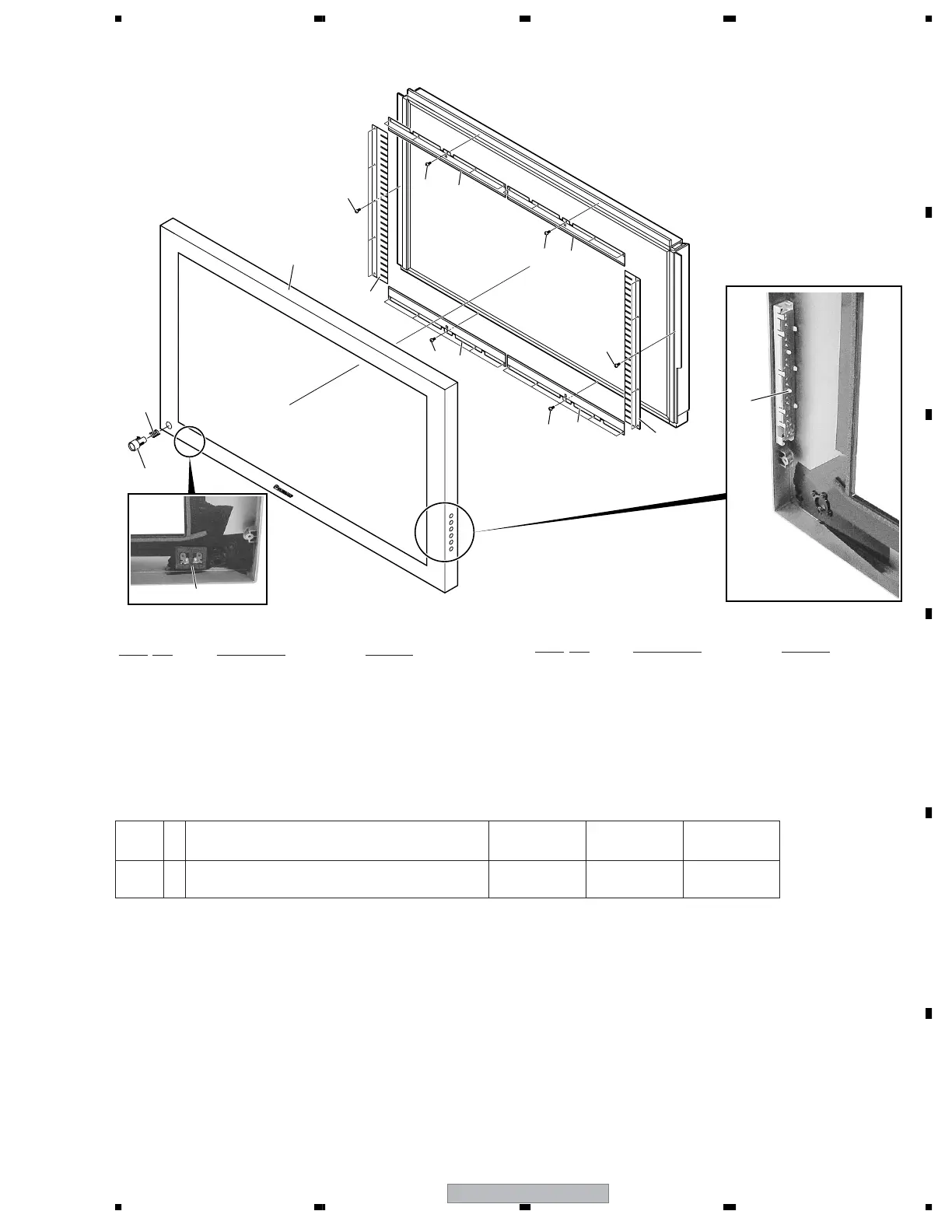

2.7 FRONT PANEL SECTION
FRONT PANEL SECTION PARTS LIST
(2) CONTRAST TABLE
PDP-435PE/WYVIXK, PRO-435PU/KUC and PDP-435PE/WYVI are constructed the same except for the following :
• Rear view
2
4
4
8
8
8
5
5
5
5
8
8
8
3
7
6
1
Mark
No. Description Part No.
1PANEL KEY Assy AWZ6843
2Front Case Assy See Contrast table (2)
3Power Button AAD4127
NSP 4 Panel Holder V (43) ANG2661
NSP 5 Panel Holder Assy 43 ANG2674
6 Coil Spring ABH1114
7 Blind Cushion AEB1383
8 Screw ABZ30P060FTC
Mark No. Description Part No.
Mark No. Symbol and Description
PDP-435PE
WYVI
PDP-435PE
WYVIXK
PRO-435PU
KUC
2Front Case Assy (43PE) AMB2833 AMB2833 Not used
2Front Case Assy (43EL) Not used Not used AMB2835
