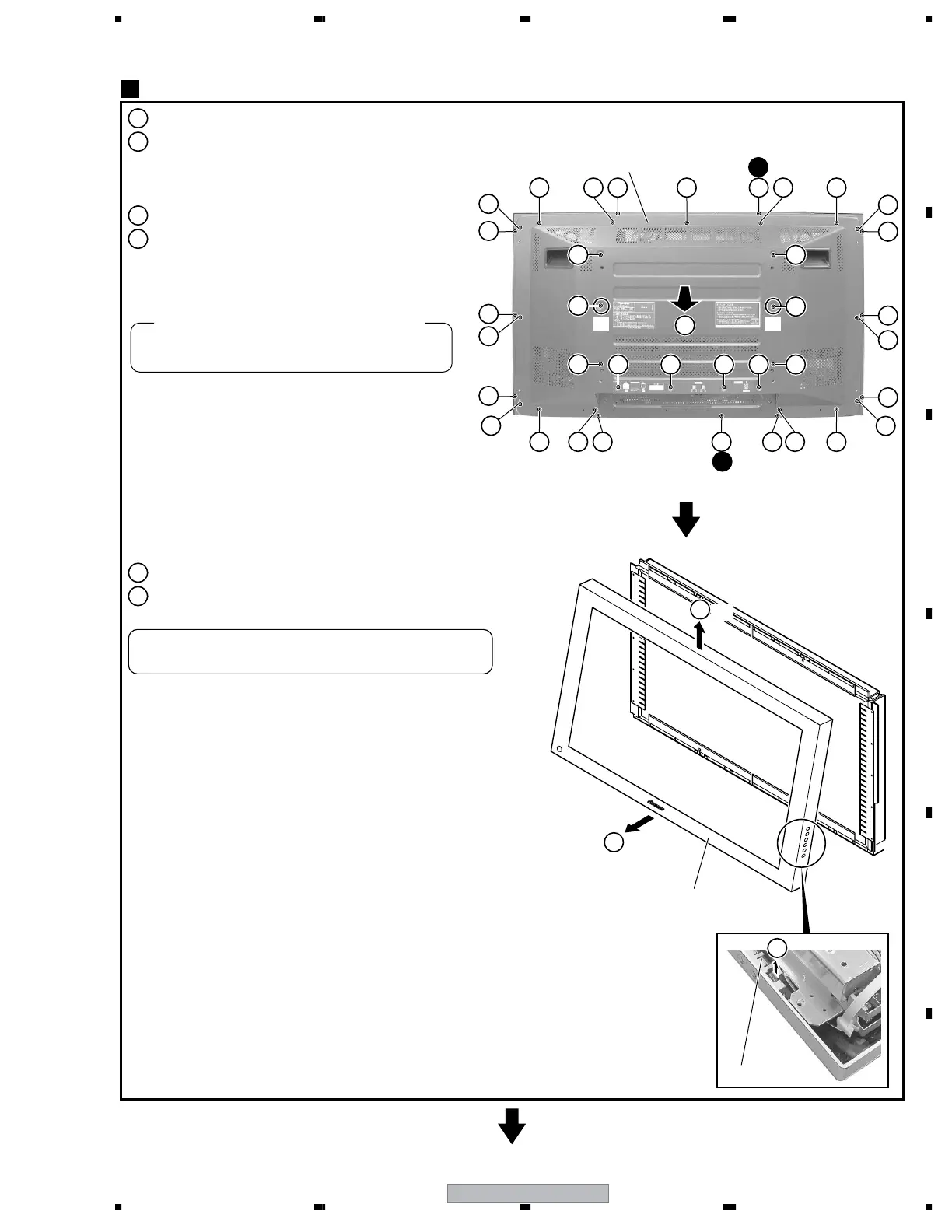

7.1.9 DISASSEMBLY
2
Remove the 25 screws.
4
Remove the screw.
1
Remove the ten screws.
3
Remove the Rear Case (43P).
5
Remove the flexible cable on the PANEL KEY Assy.
6
Remove the Front Case Assy (43P).
Rear Case (43P)
Rear Case (43P) and Front Case Assy (43P)
Front Case Assy (43P)
PANEL KEY Assy
1
3
∗1:
When reassembling, first secure the screws for
these holes to position the Rear Case (43P) correctly.
∗1 ∗1
1
2
12 2 222
12 4 1 22 2
1
1
2
1
1
2
2
1
1
2
2
2 2
2
2
2
2
2 2 2
5
6
2
2
1
Note: If you wish to remove only the Front Case Assy, you can
remove it in the order of 1, 4, 5, and 6.
-1
6
-2
Secure the screws in the order of ~ and Ÿ.
Then secure the screws on the upper side, the sides,
then the lower side.
(Secure this screw first.)
When reassembling the Front Case Assy (43P)
