7.2 IC INFORMATION
BA10393F (43 X DRIVE ASSY: IC1103)
(43 Y DRIVE ASSY: IC2211)
1ch
2ch
-
+
+
-
1
2
3
4
8
7
6
5
OUT1
-IN1
+IN1
VEE
VCC
OUT2
-IN2
+IN2
BA10358F (43 Y DRIVE ASSY: IC2406)
1ch
2ch
-
+
+
-
1
2
3
4
8
7
6
5
OUT
-IN1
+IN1
VEE
VCC
OUT2
-IN2
+IN2
• Comparator IC
• OP-AMP IC

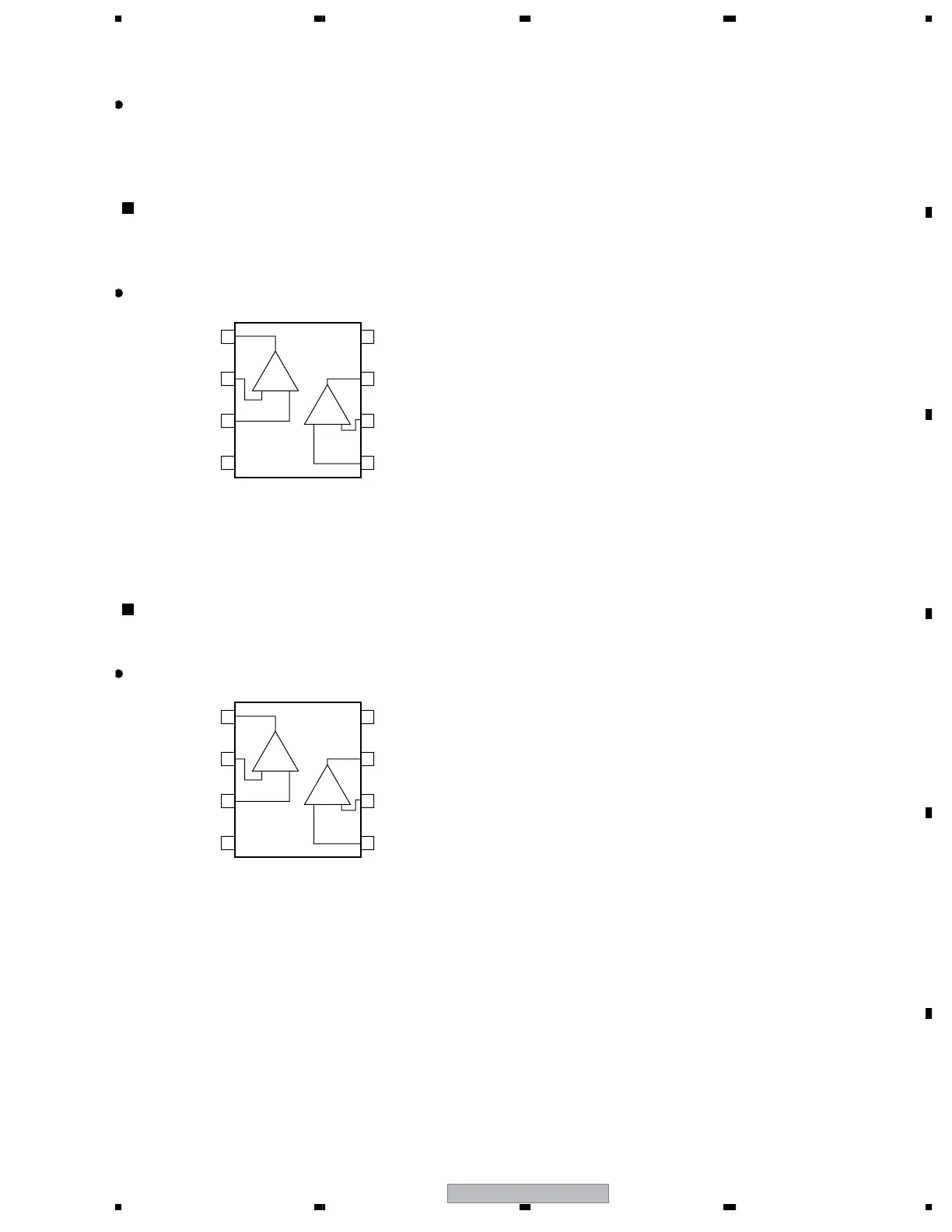

Pin Arrangement (Top view) / Block Diagram
Pin Arrangement (Top view) / Block Diagram
•
The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams.
List of IC
BA10393F, BA10358F, BA8274F, NJM2195L, MBM29PL160BD-75PFTN, SII169CTG100, STK795-510, STK795-511, LA4625,
M30622FHPGP, PDG054A, SN755866PZP
