2.10 PDP SERVICE Assy (AWU1096)
PDP SERVICE Assy (AWU1096) PARTS LIST
NSP 1..P.Chassis (435) Assy AWU1091
1..Front Chassis HU (43) ANA1787
1..Front Chassis HD (43) ANA1788
1..Front Chassis VL (43) ANA1790
1..Front Chassis VR (43) ANA1791
1..Sub Frame L Assy (43P) ANG2545
1..Sub Frame R Assy (43P) ANG2548
1..Edging Saddle AEC1737 (Note 1)
1..Wire Saddle AEC1745 (Note 2)
1..PCB Support AEC1938
1..PCB Spacer AEC1941
1..PCB Spacer AEC1947 (Note 3)
1..Wire Clip AEC1948 (Note 4)
1..Locking Wire Saddle AEC1966 (Note 5)
1..Card Spacer AEC2013
1..Y drive Protect Sheet AMR3346
1..Caution Label AAX3031
1..Drive Voltage Label ARW1097
1..Screw ABZ30P100FTB
1..Screw AMZ30P060FTB
1..Screw AMZ30P080FTC
1..Screw VBB30P080FNI
1..Screw BPZ30P080FZB
NSP 1..Front Case Assy (435SVC) AMB2841
2..Panel Cushion H (43) AED1255
2..Panel Cushion V (43) AED1256
NSP 2..Front Case (43P) AMB2821
1..Rear Case (43P) ANE1612
NSP 1..Vinyl Pouch AHG-195
1..Pad (43T-L) AHA2362
1..Pad (43T-R) AHA2363
1..Pad (43B-L) AHA2364
1..Pad (43B-R) AHA2365
1..Carton(43) AHD3165
1..Upper Carton (435SVC) AHD3267
1..Protect Sheet AHG1331
Note 1: The one provided with the AHG-195 is not used.
Note 2: The three AEC1745s provided with the AHG-195 must be
inserted in the designated places.
Note 3: The one provided with the AHG-195 must be inserted in
the designated place.
Note 4: The one provided with the AHG-195 must be inserted in
the designated place.
Note 5: This part is not used.
Note 6: These parts are only for transporting the Assy. Do NOT
use them when making repairs.
Note 3: AEC1947
Note 2: AEC1745
Note 2: AEC1745
Note 4: AEC1948

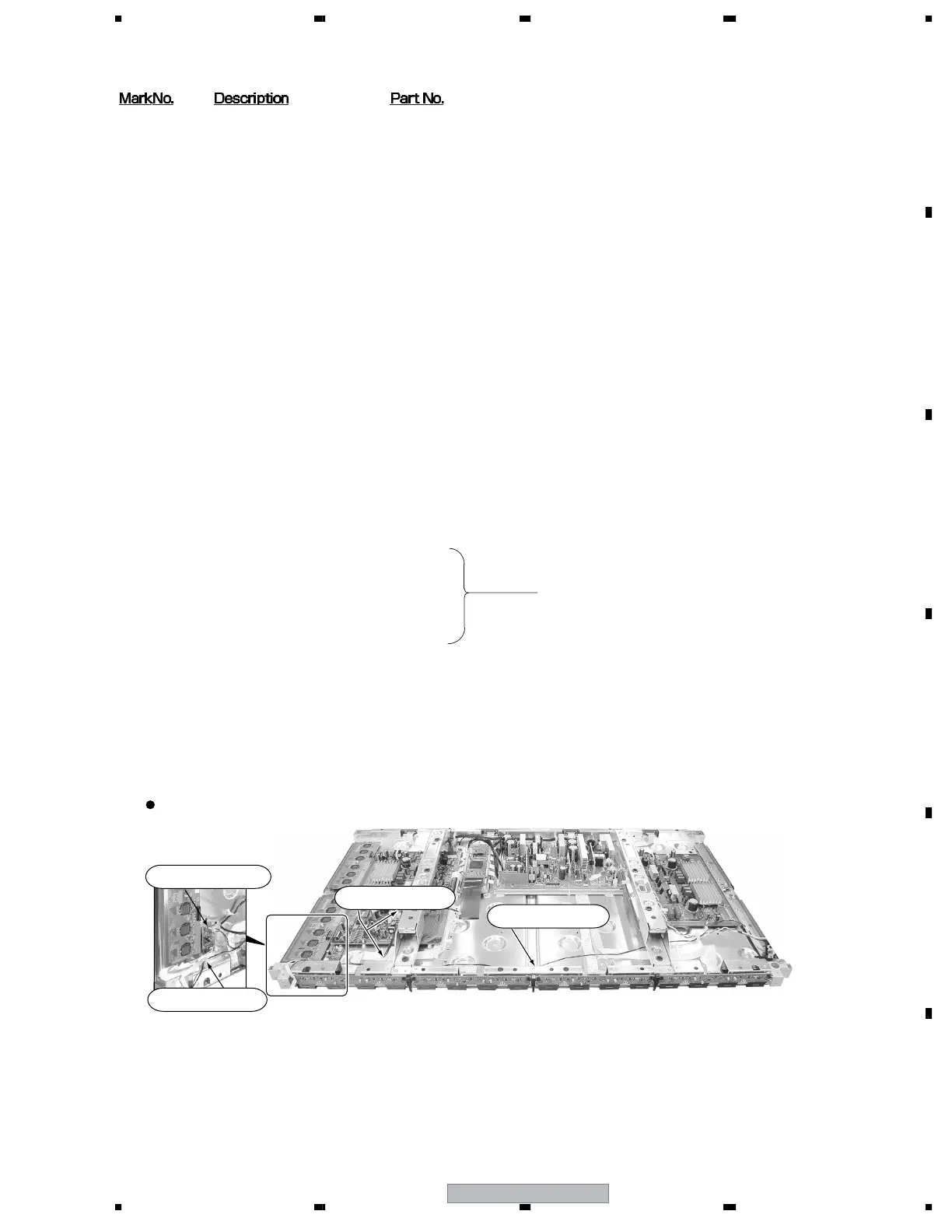

Note: The above exploded view (photo) is not of the PDP service Assy (AWU1096).
Location of parts
